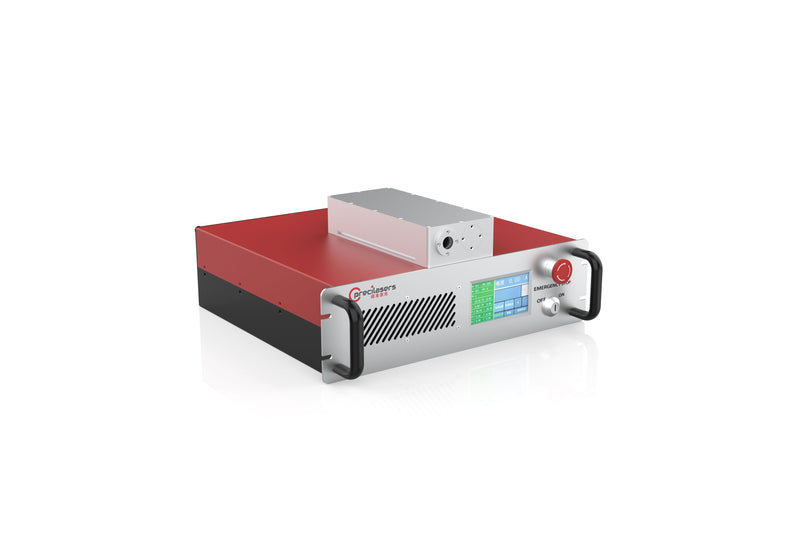

Single module 532nm laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Single module 532nm laser Based on fixed external cavity semiconductor seed laser, low noise Yb-doped fiber amplifier and high efficiency frequency doubling module, as well as integrated drive circuit, Precilasers can provide ultra-small frequency doubling 532nm laser, which is widely used in quantum precision measurement and optical precision measurement.
Features
- Ultra
- Size Narrow Linewidth Tunable
- Continuous Laser
Applications
- Rb Atom Quantum Computing
- Rb Atom Atomic Gravimeter
- Precision Distance Measurement
| Models | FL-SF-532-X (1) -C |
|---|---|
| Center Wavelength | 532.00nm |
| Output Power | >20mW / >100mW |
| Operation Mode | Continuous |
| Tuning Range (Temperature) | >10GHz, Continuous without mode hop |
| Output Mode | Single-mode polarization-maintaining fiber |
| Linewidth (2) (100us integration time) | <20kHz / <40kHz |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3 Hours RMS) | <0.75% |
| Beam Quality | M2<1.1 |
| Current Tuning Range | >1GHz |
| Current Tuning Bandwidth | >1MHz |
| Cooling | Conduction cooling |
| Temperature | 15-25°C |
| Power Consumption | <24W |
| Power Supply | 24V DC |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
