Clamps — Model HM-PB5
✔ In Stock — Ships Today

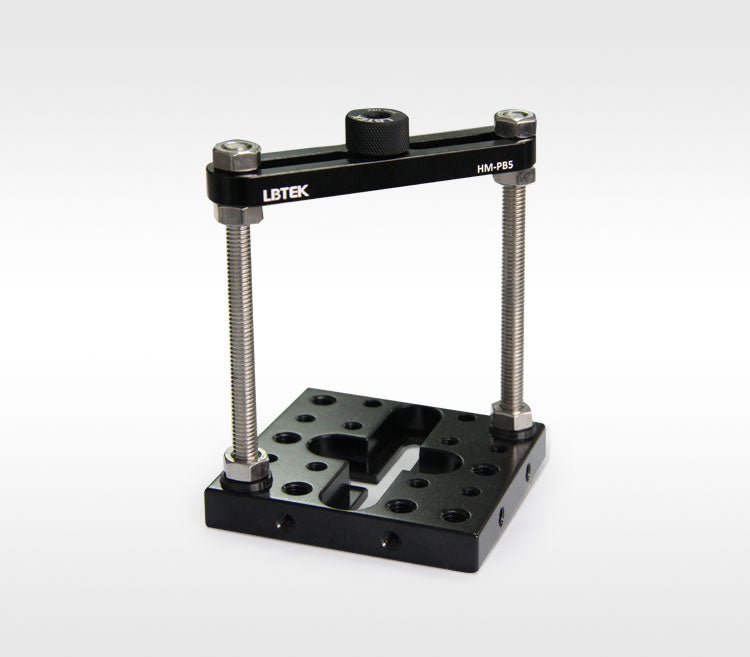

The LBTEK HM-PB5 baseplate clamp is commonly used for clamping rectangular optical or mechanical components. The clamping height can be adjusted by turning the hex nut, with an unlimited clamping length range, a width range of 0–58 mm, and a height range of 0–65 mm. The U-groove design of the clamping plate allows the screw to adjust the spacing freely according to the bottom M6 threaded hole positions. The clamping plate is equipped with a spring-loaded knurled hex thumb screw at the center to ensure the clamped surface remains undamaged. The base plate features M6 slots, M4 or M6 threaded holes, allowing installation on standard optomechanical components such as breadboards or bases. A 10 mm wrench is included for tightening the screws and base plate.
Key Features
- Commonly used for clamping rectangular optical or mechanical components
- The screw can adjust the spacing arbitrarily according to the bottom M6 threaded hole position
- The bottom has M4 or M6 threaded holes
- Comes with a 10 mm wrench for tightening screws and baseplates
Application
LBTEK baseplate clamps are commonly used for clamping large-sized optical or mechanical components.
No specifications available for this product.
Product Family: Clamps (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Clamps HM-PB5 Current |
HM-PB5
| — | — | — | |
| Clamps HM-V25 |
HM-V25
| — | — | — | View |
| Clamps HM-V50 |
HM-V50
| — | — | — | View |
| Clamps HM-V76 |
HM-V76
| — | — | — | View |
