Clamps — Model HM-V76
✔ In Stock — Ships Today

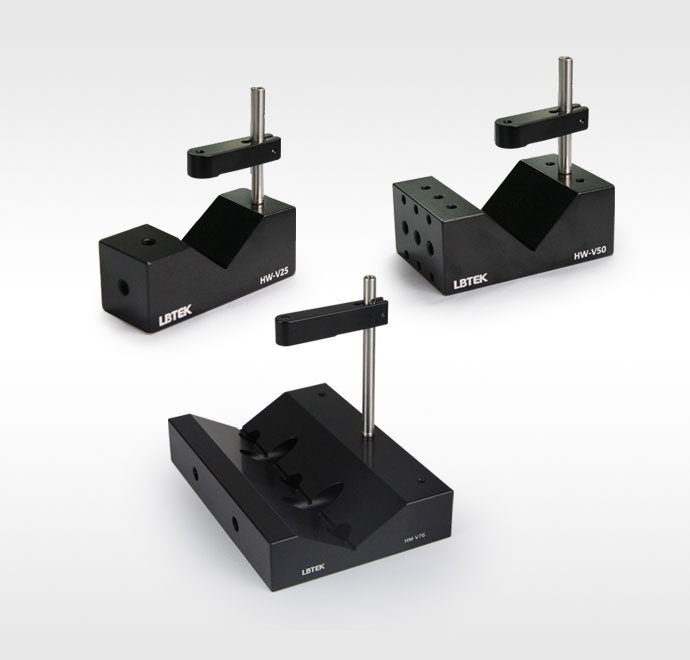

The LBTEK V-Clamp is commonly used for cylindrical optical or mechanical components. The V-clamps HM-V25, HM-V50, and HM-V76 can hold cylinders with diameters ranging from 3 mm to 25 mm, 10 mm to 50 mm, and 12.5 mm to 76.5 mm, respectively. Among them, HM-V50 and HM-V76 can also be equipped with multiple sets of clamping arms simultaneously to enhance clamping stability. Additionally, the arms of both V-type clamps can be swapped left and right. The rear, left, right sides, and bottom of the V-block feature M4 or M6 threaded holes, allowing installation on standard optomechanical components.
Key Features
- Commonly used for clamping cylindrical optical or mechanical components
- Left-right interchangeable clamping arm design
- M4 or M6 threaded holes at the base
Application
The LBTEK V-Clamp Installation
No specifications available for this product.
Click and drag to rotate. Scroll to zoom.
Product Family: Clamps (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Clamps HM-PB5 |
HM-PB5
| — | — | — | View |
| Clamps HM-V25 |
HM-V25
| — | — | — | View |
| Clamps HM-V50 |
HM-V50
| — | — | — | View |
| Clamps HM-V76 Current |
HM-V76
| — | — | — |
