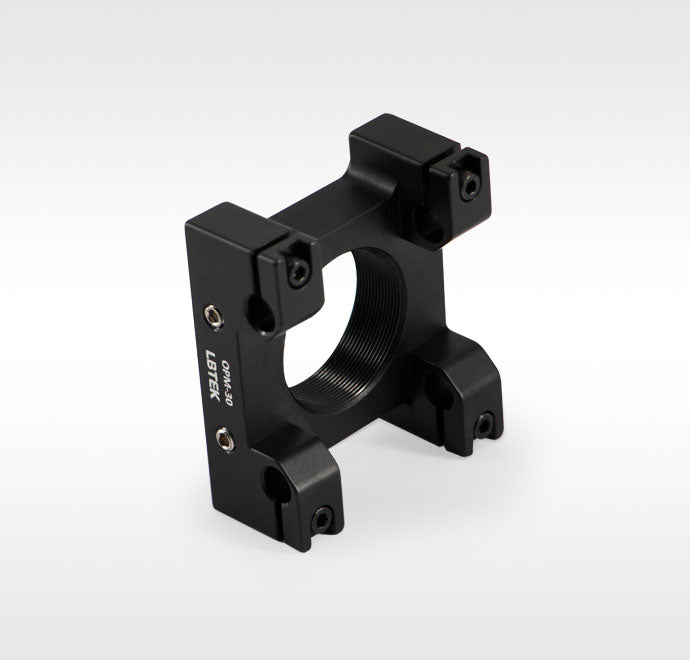

Coaxial System Orthogonal Steering Plate — Model OPM-30
✔ In Stock — Ships Today
The coaxial orthogonal steering plate provided by LBTEK enables vertical mounting in a 30 mm coaxial system. The front Ø6 mm mounting hole for rods is secured with M4 set screws, while the side Ø6 mm flexible rod connection is fixed with M2.5 pan head screws (note: screws must be tightened when inserting the coaxial rod, simply clamp the rod during tightening). Both use a 2 mm hex wrench for tightening. It features a central through-hole with SM1 threads, capable of accommodating optical components up to Ø25.4 mm with a maximum thickness of 6 mm. The SM1R retaining ring is sold separately.
Key Features
- Material: 6061-T6 aluminum alloy
- Mounts vertically in 30 mm coaxial system with 30 mm coaxial system
- Features SM1 internal threads for SM1 lens tubes and Ø25.4 mm optics
- Side-mounted with flexible locking mechanism
Application
Use the steering plate to make a 90° adapter for the 30 mm coaxial system.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Coaxial System Orthogonal Steering Plate (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Coaxial System Orthogonal Steering Plate OPM-60 |
OPM-60
| — | — | — | View |
| Coaxial System Orthogonal Steering Plate OPM-30 Current |
OPM-30
| — | — | — |
