Coaxial System Orthogonal Steering Plate — Model OPM-60
✔ In Stock — Ships Today

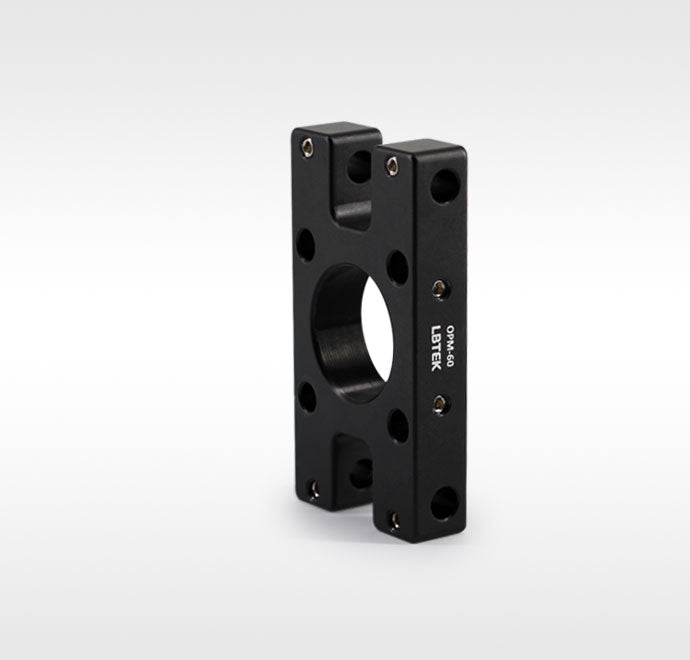

The OPM-60 coaxial orthogonal turning mirror provided by LBTEK enables the vertical mounting of a 30 mm coaxial system within a 60 mm coaxial system. The front Ø6 mm mounting hole for rods is secured with an M4 set screw, while the side Ø6 mm rod is also fixed with an M4 set screw, both tightened using a 2 mm hex wrench. It features a central through-hole with SM1 threading, capable of accommodating optical components up to Ø25.4 mm in diameter and 6 mm in thickness. The SM1R retaining ring is sold separately.
Key Features
- Material: 6061-T6 Aluminum Alloy
- Mounts a 30 mm coaxial system vertically in a 60 mm coaxial system
- Features SM1 internal threads for SM1 lens tubes and Ø25.4 mm optics
Application
Use the turning plate to make a 90° connection for the 60 mm coaxial system.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Coaxial System Orthogonal Steering Plate (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Coaxial System Orthogonal Steering Plate OPM-60 Current |
OPM-60
| — | — | — | |
| Coaxial System Orthogonal Steering Plate OPM-30 |
OPM-30
| — | — | — | View |
