Fastlite

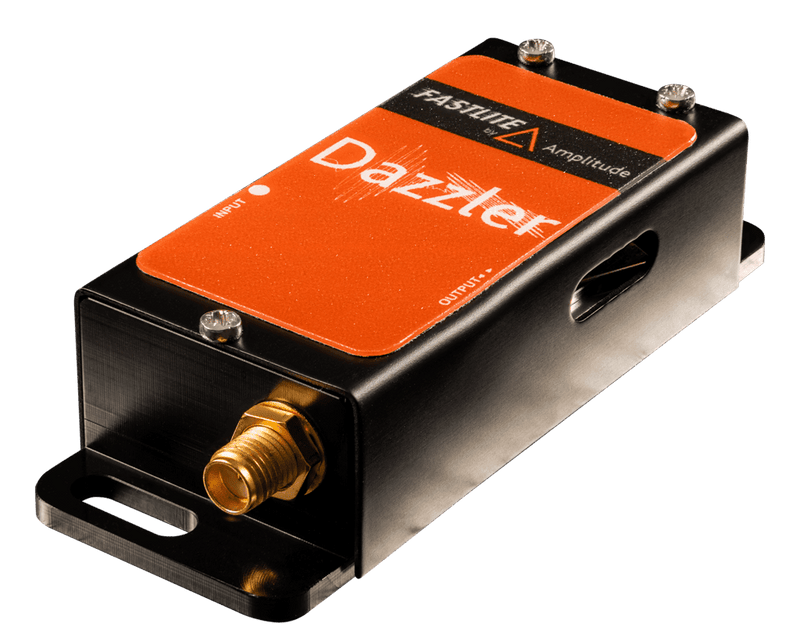

Dazzler HR1030
FST-DZ-HR1030Contact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
DAZZLER™ HR1030
High Resolution-cut 25mm DAZZLER for 1030 nm
Programmable amplitude and phase filter for femtosecond pulse shaping
Key Features
- Ultra-compact device
- In-line geometry
- Advanced software functionalities
- Simple optical alignment
Options
- High power RF amplifier for better diffraction efficiency
- Low-jitter electronics
- Wizzler for high dynamic pulse compression optimization
Special Feature
CPA optimization — Ideal for Yb-doped laser systems. Pre-compensate gain narrowing and high order phase distortions.
| Wavelength Tuning Range | 910 nm to 1150 nm |
| Wavelengths outside this range are poorly or not diffracted | |
| Instantaneous Bandwidth | Up to 240 nm |
| Spectral Resolution | 0.5 nm at 1030 nm |
| Intensity Control Dynamic Range | > 45 dB |
| Maximum Programmable Delay | 7.5 ps at 1030 nm |
| Standard | 50% on a 50 nm bandwidth / 25% on a 100 nm bandwidth (up to 10 kHz) |
| With 20W RF Amplifier | 40% on a 100 nm bandwidth (up to 6 kHz) |
| With 50W External RF Amplifier | 40% on a 240 nm bandwidth (up to 2.5 kHz) |
| Waveform Refresh Time | < 3 ms |
| Input Beam Requirements | 30 µJ max on φ = 2.5 mm, collimated |
| Dimensions (L×W×H) | 48 × 94 × 20 mm³ |
| Optical Jitter | < 10 fs |
| Low-jitter Option | < 100 as (with optional Low-jitter electronics) |
| Special Feature | CPA optimization — High dynamic pulse compression optimization when combined with the Wizzler feedback loop |
