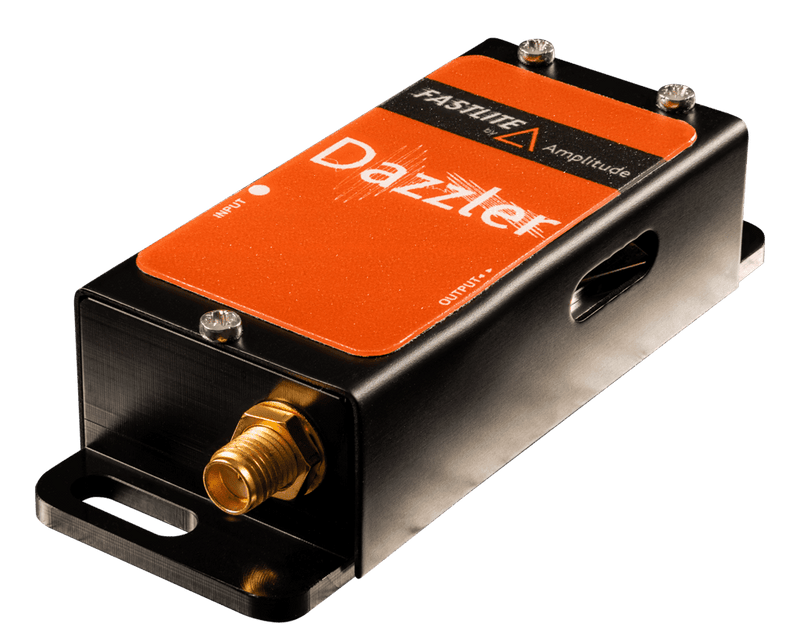

DAZZLER™ WB45-2000-3700
Wide Bandwidth 45mm DAZZLER for 2000–3700 nm
Programmable amplitude and phase filter for femtosecond pulse shaping
Key Features
- Ultra-compact device
- In-line geometry
- Advanced software functionalities
- Simple optical alignment
Options
- High power RF amplifier for better diffraction efficiency
- Low-jitter electronics
- Wizzler for high dynamic pulse compression optimization
Special Feature
CEP control — Dispersion-free, shot-to-shot Carrier-Envelope Phase control capability for the most advanced laser systems.
| Wavelength Tuning Range | 2000 nm to 3700 nm |
| Wavelengths outside this range are poorly or not diffracted | |
| Instantaneous Bandwidth | Up to 1700 nm |
| Spectral Resolution | 3.5 nm at 2500 nm / 7 nm at 3500 nm |
| Intensity Control Dynamic Range | > 45 dB |
| Maximum Programmable Delay | 5.5 ps at 2800 nm |
| Standard | 50% on a 200 nm bandwidth / 25% on a 400 nm bandwidth (up to 7.5 kHz) |
| With 20W RF Amplifier | 35% on a 400 nm bandwidth (up to 4.5 kHz) |
| With 50W External RF Amplifier | 50% on a 600 nm bandwidth (up to 2 kHz) |
| Waveform Refresh Time | < 3 ms |
| Input Beam Requirements | 30 µJ max on φ = 2.5 mm, collimated |
| Dimensions (L×W×H) | 48 × 98 × 22 mm³ |
| Optical Jitter | < 10 fs |
| Low-jitter Option | < 100 as (with optional Low-jitter electronics) |
| Special Feature | CEP control — Multi-kHz rate CEP control with the optional CEP modulation solution. This additional hardware included in the 19" rack generator allows dispersion-free, single-shot control of the CEP value down to 6 mrad resolution. |
No CAD drawings available for this product.
