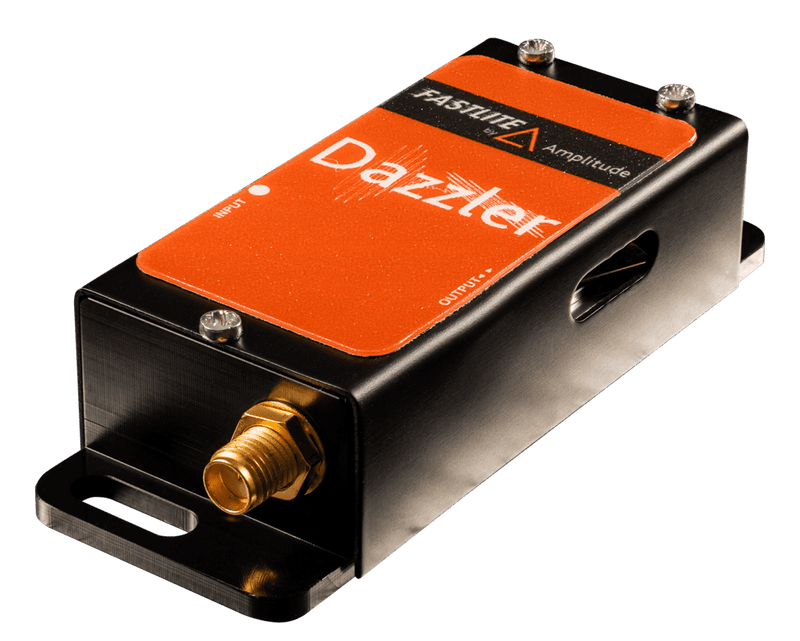

Dazzler WR-510-950
FST-DZ-WR-510-950Contact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH
DAZZLER™ WR-510-950
Wide Range 25mm DAZZLER for 510–950 nm
Programmable amplitude and phase filter for femtosecond pulse shaping
Key Features
- Ultra-compact device
- In-line geometry
- Advanced software functionalities
- Simple optical alignment
Options
- High power RF amplifier for better diffraction efficiency
- Low-jitter electronics
- Wizzler for high dynamic pulse compression optimization
- Streaming: switch between pre-defined pulse shapes at up to 500 Hz (max 100,000+ waveforms)
Special Feature
Multidimensional spectroscopy experiments — Dazzler ability to generate phase-locked copy of the incoming pulses makes it ideal for 2D spectroscopy setups.
| Wavelength Tuning Range | 510 nm to 950 nm |
| Optional extended tuning range 460 nm to 740 nm. Typical 30 to 40% diffraction efficiency drop on extended tuning range. Wavelengths outside this range are poorly or not diffracted. | |
| Instantaneous Bandwidth | Up to 440 nm |
| Spectral Resolution | 0.2 nm at 530 nm / 0.5 nm at 900 nm |
| Intensity Control Dynamic Range | > 45 dB |
| Maximum Programmable Delay | 8 ps at 530 nm / 6 ps at 900 nm |
| Standard | 60% on a 50 nm bandwidth / 30% on a 100 nm bandwidth (up to 10 kHz) |
| With 20W RF Amplifier | 40% on a 100 nm bandwidth (up to 6 kHz) |
| With 50W External RF Amplifier | 40% on a 250 nm bandwidth (up to 2.5 kHz) |
| Waveform Refresh Time | < 10 ms |
| Input Beam Requirements | 30 µJ max on φ = 2.5 mm, collimated |
| Dimensions (L×W×H) | 33 × 85 × 22 mm³ |
| Optical Jitter | < 10 fs |
| Low-jitter Option | < 100 as (with optional Low-jitter electronics) |
| Special Feature | Multidimensional spectroscopy experiments — The optional Streaming mode allows to switch between pre-defined pulse shapes at repetition rates up to 500 Hz. The maximum number of waveforms is over 100,000. Includes specific hardware, software, and synchronization management. |
