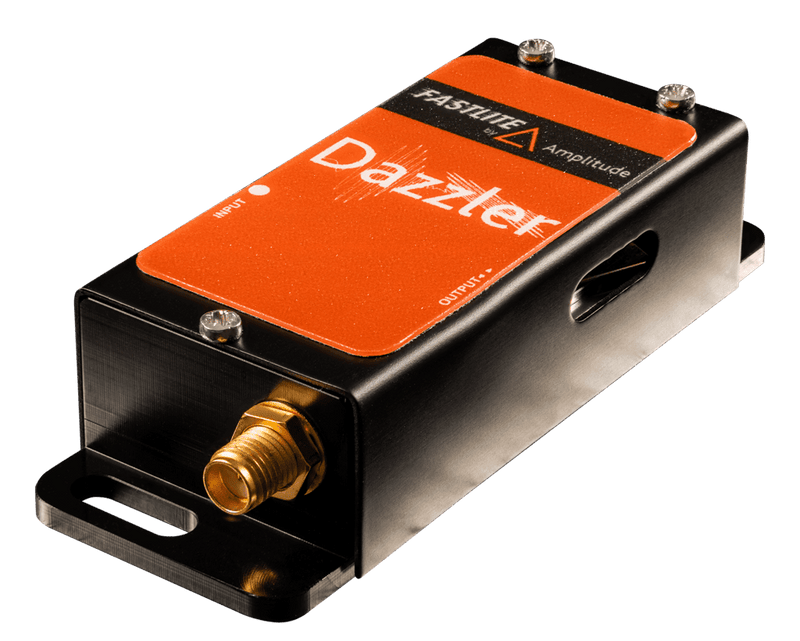

DAZZLER™ Qz-250-400
UV Quartz DAZZLER for 250–400 nm
Programmable amplitude and phase filter for femtosecond pulse shaping
Key Features
- Ultra-compact device
- In-line geometry
- Advanced software functionalities
- Simple optical alignment
Options
- High power RF amplifier for better diffraction efficiency
- Low-jitter electronics
- Wizzler for high dynamic pulse compression optimization
- Streaming: switch between pre-defined pulse shapes at up to 500 Hz (max 100,000+ waveforms)
Special Feature
Multidimensional spectroscopy experiments — Dazzler ability to generate phase-locked copy of the incoming pulses makes it ideal for 2D spectroscopy setups.
| Wavelength Tuning Range | 250 nm to 400 nm |
| Wavelengths outside this range are poorly or not diffracted | |
| Instantaneous Bandwidth | Up to 150 nm |
| Spectral Resolution | 0.1 nm at 250 nm / 0.2 nm at 400 nm |
| Intensity Control Dynamic Range | > 45 dB |
| Maximum Programmable Delay | 4.0 ps at 250 nm / 2.9 ps at 400 nm |
| Standard | 20% at 250 nm / 10% at 400 nm (up to 10 kHz, for 30 to 70 fs input pulse duration) |
| Waveform Refresh Time | < 10 ms |
| Input Beam Requirements | 10 µJ max on φ = 1.5 mm, collimated |
| Dimensions (L×W×H) | 113 × 194 × 30 mm³ |
| Optical Jitter | < 10 fs |
| Low-jitter Option | < 100 as (with optional Low-jitter electronics) |
| Special Feature | Multidimensional spectroscopy experiments — The optional Streaming mode allows to switch between pre-defined pulse shapes at repetition rates up to 500 Hz. The maximum number of waveforms is over 100,000. Includes specific hardware, software, and synchronization management. |
