Dovetail Rails and Accessories; — Model DR50-75
✔ In Stock — Ships Today

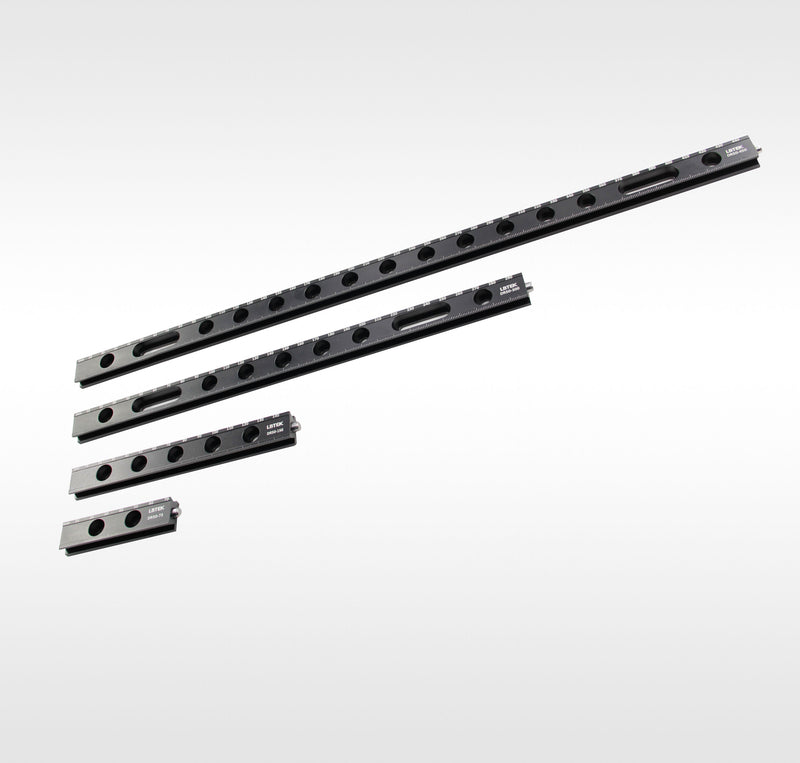

The dovetail rail from LBTEK is designed to work with snap-in dovetail sliders, featuring 1 mm graduation marks and numeric indicators every 10 mm for precise positioning. It includes multiple waist-type slots and M6 countersunk holes for flexible mounting on breadboards or optical platforms, and can also be secured using CB-2 dovetail clamping arms. One end is equipped with a Ø6 mm location pin while the other end has a Ø6 mm location hole, allowing multiple dovetail rails to be connected end-to-end for length extension.
Key Features
- Material: 6061-T6 Aluminum Alloy;
- Scale accuracy 1 mm, with numerical markings every 10 mm;
- Multiple lengths available: 75 mm, 150 mm, 300 mm, 450 mm;
Application
Dovetail groove rail mounted on a breadboard.
| Parallelism | <0.05 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Dovetail Rails and Accessories; (9 variants)
