Dovetail Rails and Accessories; — Model TG1
✔ In Stock — Ships Today

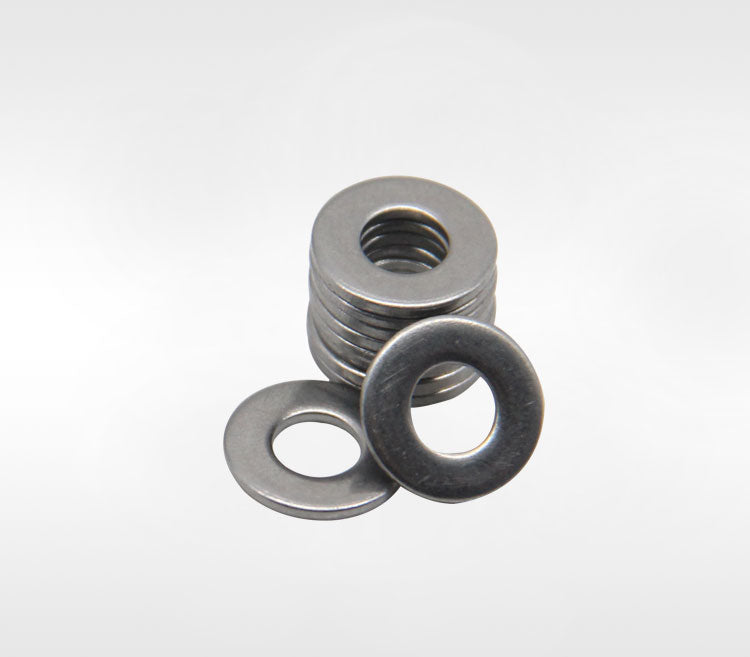

LBTEK adapter spacer, TG1 allows M4 socket head cap screws to be used in 1/4-inch or M6 countersunk holes on optomechanical components.
Key Features
- Spacer outer diameter 10 mm, inner diameter 4.6 mm, thickness 1.0 mm;
- Suitable for converting M6 countersunk holes to M4 socket head cap screws；
- Optional 10 pieces per pack;
Application
Adapter spacer installation
No specifications available for this product.
