Dovetail Rails and Accessories; — Model DR50F-50Z
✔ In Stock — Ships Today

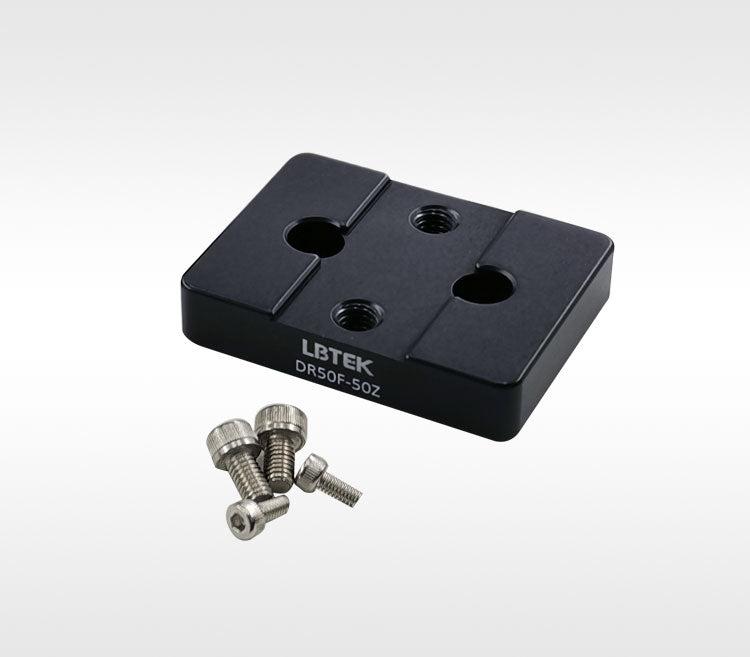

The 90° slide adapter is designed for use with DR50 series rails and the DR50F-50 cross mount, enabling perpendicular fixation of two dovetail rails while maintaining full sliding capability of the slides along all four orthogonal axes (front/rear/left/right).
Key Features
- For fixing two dovetail groove rails in a perpendicular cross configuration;
- Compatible with DR50 series rails and DR50F-50;
- Two M6 screws and two M4 screws are included;
Application
Vertical mounting adapter vertical mounting rail.
| Parallelism | <0.05 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Dovetail Rails and Accessories; (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Dovetail Rails and Accessories; TG1 |
TG1
| — | — | — | View |
| Dovetail Rails and Accessories; DR50F-50Z Current |
DR50F-50Z
| — | — | — | |
| Dovetail Rails and Accessories; DR50F-25V |
DR50F-25V
| — | — | — | View |
| Dovetail Rails and Accessories; DR50F-50 |
DR50F-50
| — | — | — | View |
| Dovetail Rails and Accessories; DR50F-25 |
DR50F-25
| — | — | — | View |
| Dovetail Rails and Accessories; DR50-300 |
DR50-300
| — | — | — | View |
| Dovetail Rails and Accessories; DR50-75 |
DR50-75
| — | — | — | View |
| Dovetail Rails and Accessories; DR50-150 |
DR50-150
| — | — | — | View |
| Dovetail Rails and Accessories; DR50-450 |
DR50-450
| — | — | — | View |
