Dovetail Rails and Accessories; — Model DR50F-25
✔ In Stock — Ships Today

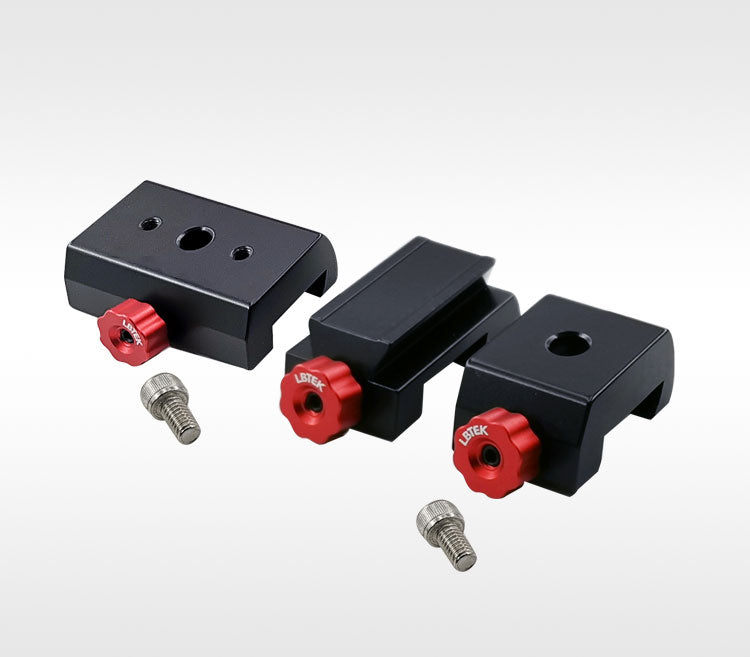

The DR50F-25 and DR50F-50 from LBTEK feature M6 countersunk holes for direct mounting of optomechanical components onto optical rails, with the DR50F-50 additionally including two M4 tapped holes for securing rail-crossing vertical mounting adapters. The DR50F-25V is designed to work with the DR50F-25, enabling limited sliding adjustment of the carriage along the vertical rail direction.
Key Features
- DR50F-25 and DR50F-50 are commonly used for directly mounting optomechanical components on the optical rails;
- DR50F-25V can be used together with DR50F-25 to achieve cross vertical mounting of sliders;
- Spring-loaded thumb screws are used to secure the slider position;
Application
The DR50F-25V can be used together with the DR50F-25 to achieve small range sliding in the vertical direction of the rail.
| Parallelism | <0.05 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Dovetail Rails and Accessories; (9 variants)
