Electric Actuators EAC-CV2-1

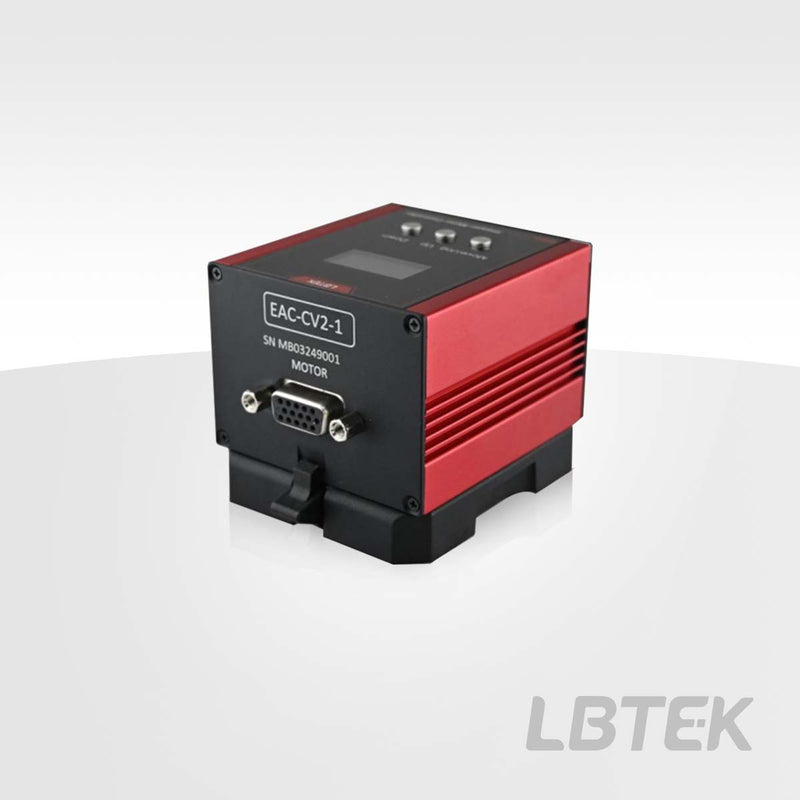

The EAC-CV2-1 electric actuator controller provided by LBTEK is a structurally very compact single-axis, two-phase stepper motor controller, primarily used to control the operation of the SMET series electric actuators. It allows selection between trapezoidal and S-shaped speed profiles and features a high theoretical microstepping resolution (49,152 microsteps for motors with 24 full steps and 409,600 microsteps for motors with 200 full steps). The top of the controller is equipped with a digital display and three control buttons, facilitating simple manual operation of the electric actuator. The brightness of the digital display is adjustable and can also be turned off. On the end face of the controller, there are two bidirectional trigger ports with SMA connectors, which can be used to read 5 V external logic signals or output 5 V logic signals to control external devices. Each port can be individually configured.

Note: The electric actuator controller does not support hot-plugging. To disconnect the electric actuator from the controller, please power off the controller first before disconnecting the actuator.
