Electric Actuators SMET-06A
SMET-06A$1,913.05
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Electric Actuators SMET-06A from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

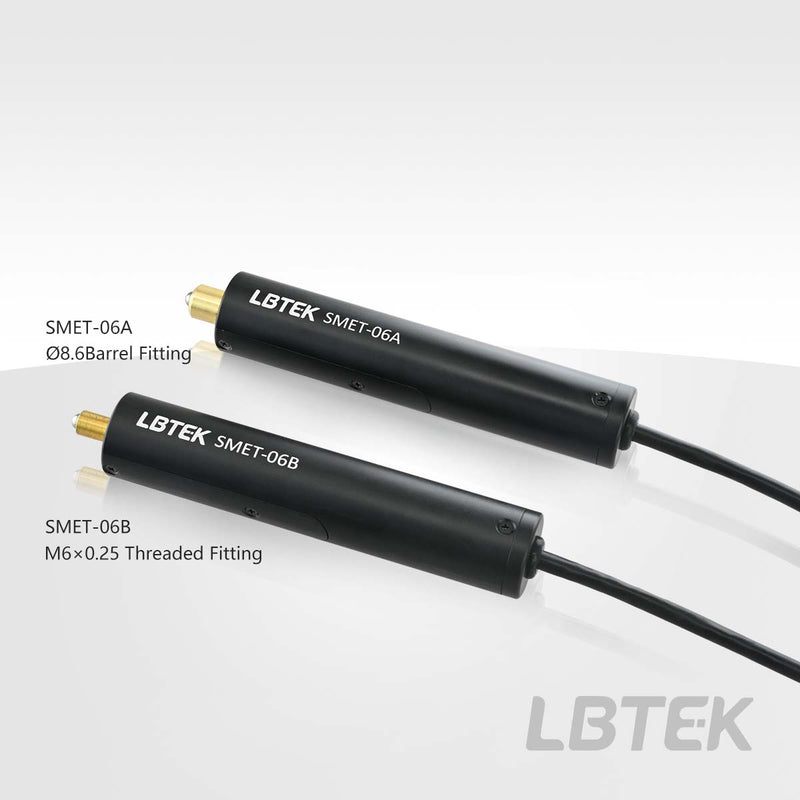

The SMET-06x series actuators provided by LBTEK have a retracted overall length of 113 mm and can deliver smooth, precise linear motion control. These actuators are driven by a compact two-phase bipolar stepper motor, with a maximum stepping speed of 2 mm/s. The rotating contact structure is eliminated in these actuators, and the top ball head is non-rotatable, which helps reduce wear and friction while enhancing motion smoothness. This series of actuators offers two mounting options: M6×0.25 threaded and Ø8.6 mm smooth-wall configurations.
Note: The electric actuators do not support hot-plugging, as doing so may damage the motor.
Key Features
- Non-rotating drive head
- Two-way two-stage stepping electric actuator: 113 mm (retracted size)
- Available with threaded and smooth-wall mounting options
Application
The actuator is installed on the AMMM-1B optical adjustment mount
| stroke | 6 mm |
| Connector Type | DB 15 |
| Motor Type | 2-phase 2-pole stepper motor |
| Position Accuracy | < 5 µm |
| Bidirectional Position Accuracy | < 15 µm |
| Acceleration | 10 mm/s² |
| Max Speed | 2.0 mm/s |
| Position Repeatability | < 5 µm |
| Attribute 2903 | 40 N |
| Cable Length | 1.0 m |
| Installation Method | Ø8.6 mm smooth wall installation |
| Attribute 2531 | 2 μm |
| Encoder Resolution | 0.5 nm |
| Size (L&W) | 112.9 × 20 mm |
| Attribute 2822 | 5~40 ℃ |
| Operating Temperature | -20~80 ℃ |
No CAD drawings available for this product.
