Electric Actuators SMET-13A
SMET-13A$2,270.59
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Electric Actuators SMET-13A from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

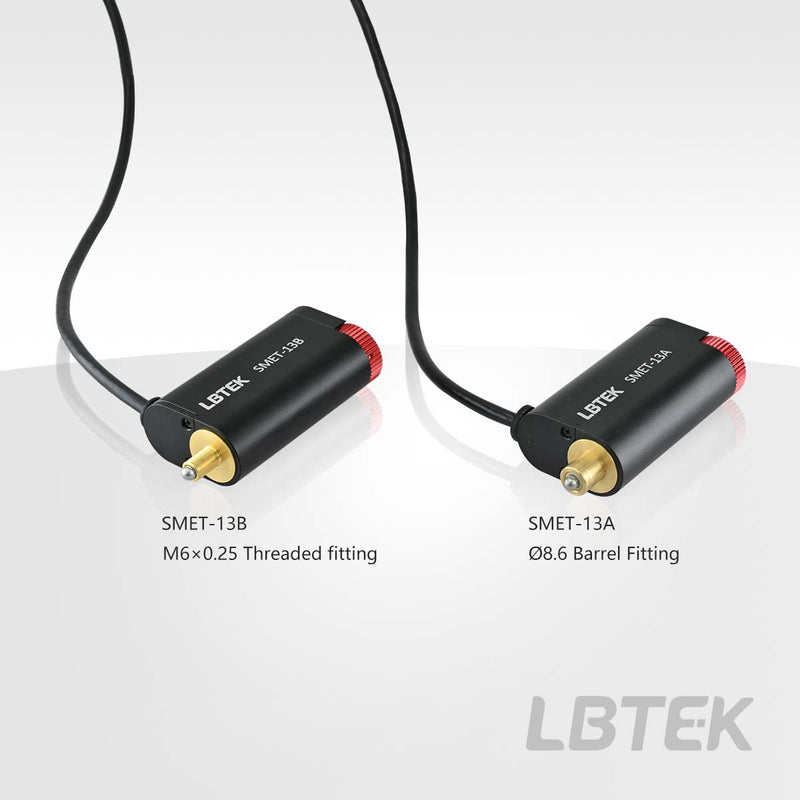

The SMET-13x series actuators provided by LBTEK feature a sleek and compact design, with a fully retracted length of 74.6 mm, delivering smooth and precise linear motion control. These actuators are driven by a miniature two-phase bipolar stepper motor, achieving a maximum stepping speed of 2 mm/s. The elimination of the rotary contact structure and the non-rotating top ball head reduce wear and friction, enhancing motion smoothness. When the actuator is not powered, manual adjustment can be performed using the red hand-turning knob located at the rear. This series of actuators offers two mounting options: M6×0.25 threads and an Ø8.6 mm smooth-wall configuration.
Note: The electric actuator does not support hot-plugging, as it may damage the motor. Additionally, rotating the hand-turning knob while the actuator is powered may cause damage to the motor.
Key Features
- Non-rotating drive head
- Manual adjustment via hand-tightening screw located at the rear
- Compact bipolar stepper motor actuator with retracted length of 74.6mm
- Available with threaded and smooth-wall mounting options
Application
The electric actuator is used with the EAC-CV2-1 controller
| Connector Type | DB 15 |
| Lead Time | In Stock |
No CAD drawings available for this product.
