Electric Actuators SMET-13B

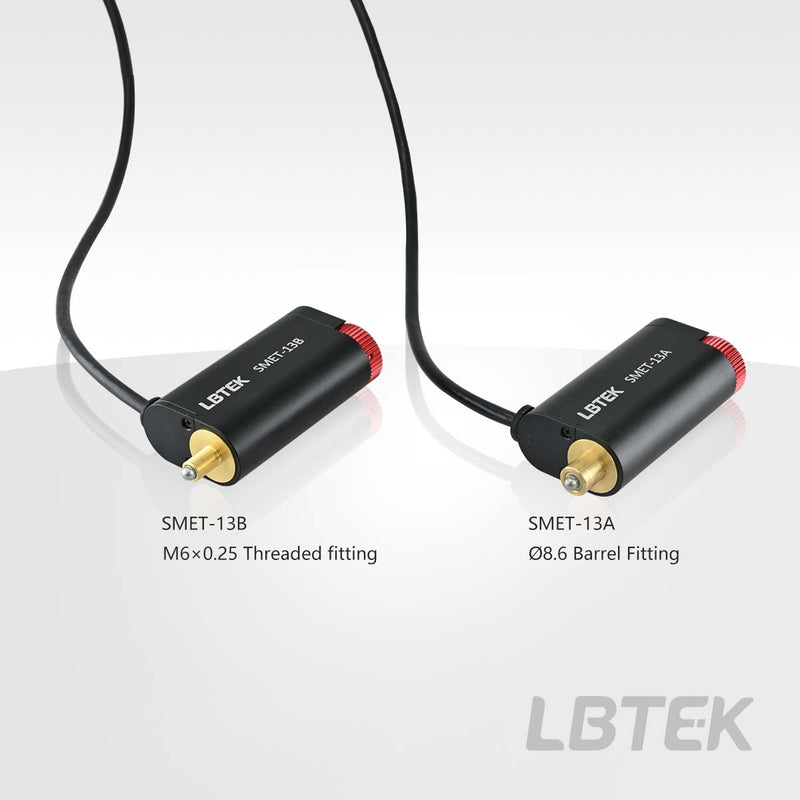

The SMET-13x series actuators provided by LBTEK feature a sleek and compact design, with a fully retracted length of 74.6 mm, delivering smooth and precise linear motion control. These actuators are driven by a miniature two-phase bipolar stepper motor, achieving a maximum stepping speed of 2 mm/s. The elimination of the rotary contact structure and the non-rotating top ball head reduce wear and friction, enhancing motion smoothness. When the actuator is not powered, manual adjustment can be performed using the red hand-turning knob located at the rear. This series of actuators offers two mounting options: M6×0.25 threads and an Ø8.6 mm smooth-wall configuration.

Note: The electric actuator does not support hot-plugging, as it may damage the motor. Additionally, rotating the hand-turning knob while the actuator is powered may cause damage to the motor.
