Fiber Optic Tools and Accessories FSV2-150
FSV2-150$211.51
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Fiber Optic Tools and Accessories FSV2-150 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

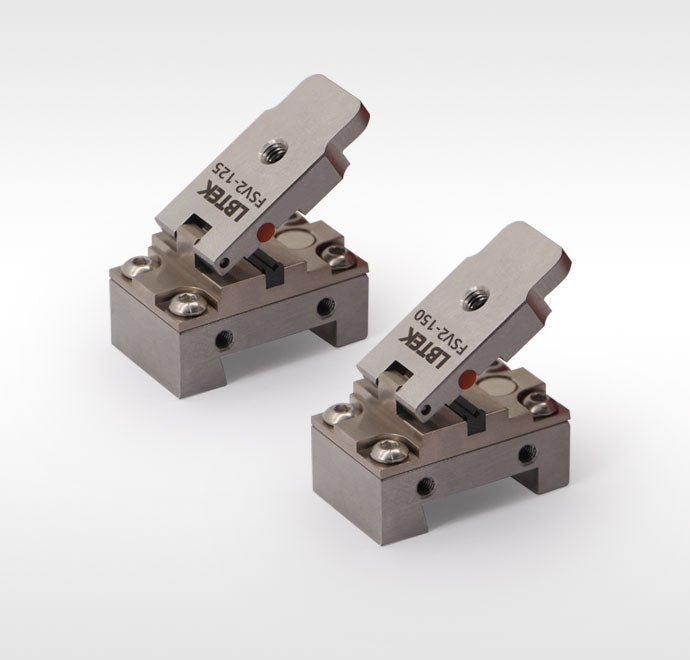

The FSV2 fiber optic clamp provided by LBTEK is used to connect fibers to the FCSS-5 series five-axis stainless steel fiber optic translation stage for alignment. This clamp gently secures the fiber in a precision V-groove, with a lower V-groove that matches the five-axis translation stage. The fiber is locked in place by side screws on the V-groove. Additionally, the lower surface of the clamp features an M4 threaded hole, allowing it to be directly mounted on a post.
Key Features
- Applicable to LBTEK's five-axis stainless steel fiber optic translation stage FCSS-L5/FCSS-R5 for installing optical fibers
- Precision zirconia V-groove structure for clamping fibers with diameters of Ø125 μm~Ø280 μm and Ø150 μm~Ø341 μm
- Soft polyurethane rubber pressure strips provide excellent protection for the clamped optical fibers
Application
Fiber optic clamp compatible with five-axis stainless steel fiber optic translation stage FCSS-L5/FCSS-R5
| Material | 304 stainless steel |
| Surface Treatment | Nickel plating |
| Clamping diameter | Ø150 μm~Ø341 μm |
| Hex Key Wrenches Included | 1 hex key wrench |
| Bottom threaded hole specifications | M4 |
No documents available for this product.
No CAD drawings available for this product.
