Fiber Optic Tools and Accessories FSV3-150
FSV3-150$97.67
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Fiber Optic Tools and Accessories FSV3-150 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

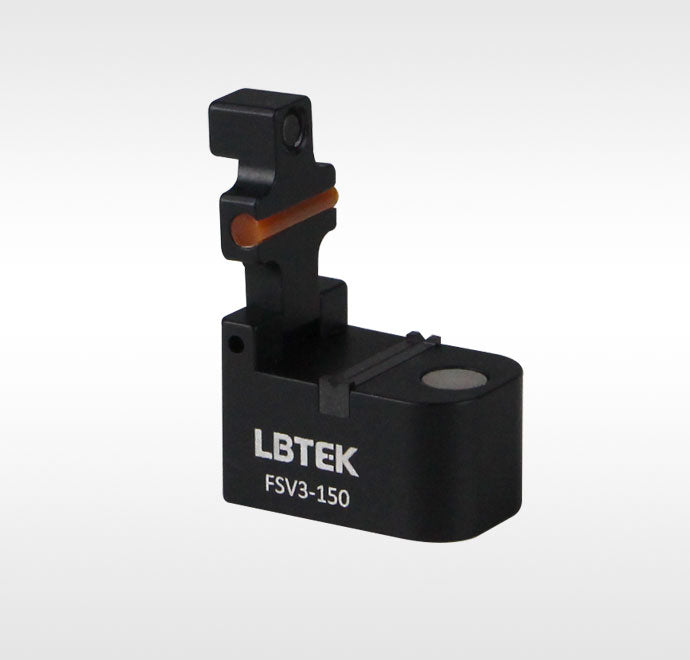

The FSV3 fiber optic clamp provided by LBTEK features precision V-grooves and rubber pads, designed to securely grip the buffer layer of optical fibers without causing damage. The magnetic attraction force can be adjusted via an M4 set screw. With an M4 threaded base, the fiber clamp can be connected to Ø12.7 mm optical posts or integrated into optical components on breadboards or optical platforms.
Key Features
- For use with Ø12.7 mm optical posts
- Precision zirconia V-groove structure for holding Ø150 μm~Ø341 μm optical fibers
- Soft polyurethane rubber pressure strip provides excellent protection for clamped fibers
Application
FSV3 Fiber Optic Clamp Mounted on Ø12.7mm Rod Holder
| Material | 6061-T6 |
| Clamping diameter | Ø150 μm~Ø341 μm |
| Attribute 188 | M4 |
| Dimensions | 24 mm×15.2 mm×19.8 mm |
| Surface Treatment | Black anodized |
No documents available for this product.
No CAD drawings available for this product.
Product Family: Fiber Optic Tools and Accessories (10 variants)
