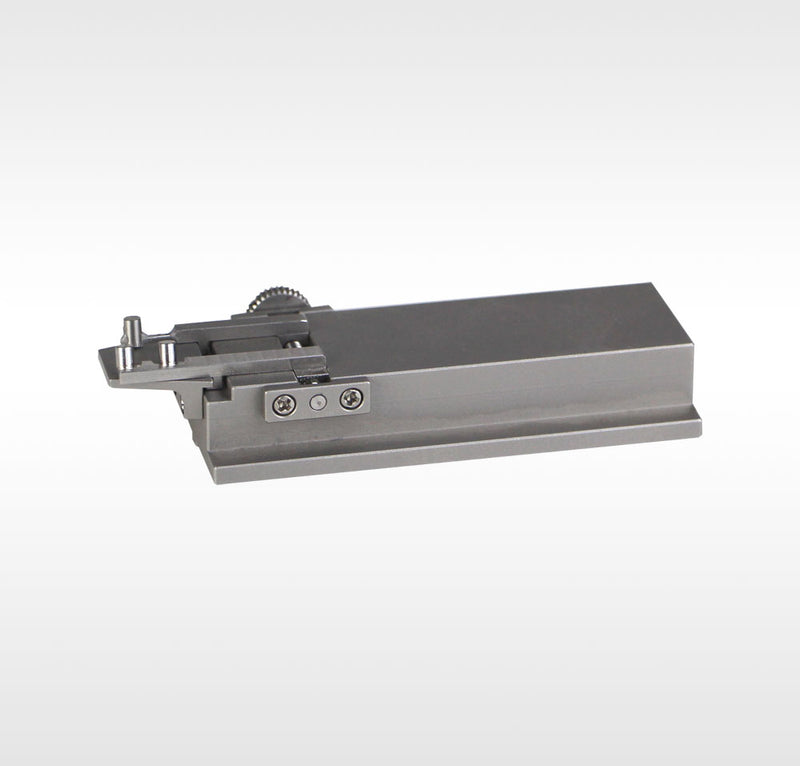

Fiber Optic Tools and Accessories OFH02
OFH02$382.37
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Fiber Optic Tools and Accessories OFH02 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today
LBTEK offers fiber optic clamp holder that simultaneously drive both sides of the clamping mechanism through a single actuation knob. This dual-sided clamping mechanism ensures the installed device is centered on the supporting surface. Three angled clamping cylindrical surfaces provide slight downward pressure and stable three-point contact, with one clamping point located at the end of a flexible support rod, allowing the holder to accommodate optical devices of various sizes.
Key Features
- Install rectangular fiber arrays up to 12 mm wide
- Knob-controlled clamping mechanism for easy loading
- Also used for mounting rectangular optical components
Application
OFH02 is installed on LS60G-XYZ
| Material | 303 Stainless Steel |
| Surface Treatment | Sandblasting |
| Clamping diameter | Rectangular fiber array with a maximum width of 12 mm |
| Dimensions | 82.6 mm×32 mm×19.5 mm |
| Weight | 0.18 kg |
| Adjustable range | 0~12 mm |
