Fiber Optic Tools and Accessories OFF32
OFF32$198.62
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Fiber Optic Tools and Accessories OFF32 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

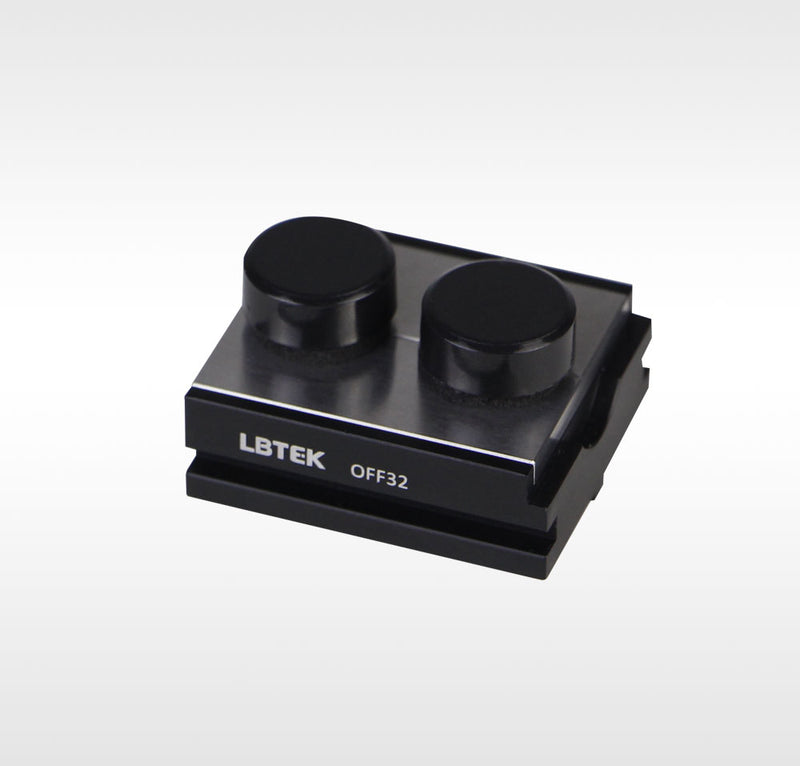

The LBTEK fiber optic holder is perfectly suited for securing single-mode bare fibers (with intact coating) and features simple installation and flexible usage. The fiber is held in place within a precision V-groove by two magnetic clamping blocks. These blocks also incorporate special elastic pads that can locally bend around the fiber, providing stable yet delicate clamping force. The base of the holder is made of anodized aluminum, while the top plate is constructed from magnetic stainless steel.
Key Features
- Precision V-groove design for clamping Ć150 Āµm~Ć341 Āµm optical fibers
- Stainless steel construction provides a robust wear-resistant surface
- Magnetic pressure block with a softer elastic pad to prevent damage to the fiber cladding
Application
The OFF32 fiber optic holder is mounted on the multi-axis translation stage platform.
| Lead Time | In Stock |
No CAD drawings available for this product.
Product Family: Fiber Optic Tools and Accessories (10 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Magnetic Holding Pad FSM1 |
FSM1
| — | — | — | View |
| Fiber Optic Tools and Accessories FSV3-150 |
FSV3-150
| — | — | — | View |
| Fiber Optic Tools and Accessories FSV2-125 |
FSV2-125
| — | — | — | View |
| Fiber Optic Tools and Accessories FSV2-150 |
FSV2-150
| — | — | — | View |
| Fiber Optic Tools and Accessories FSV1-125 |
FSV1-125
| — | — | — | View |
| Fiber Optic Tools and Accessories FSV1-150 |
FSV1-150
| — | — | — | View |
| Fiber Optic Tools and Accessories OFH03 |
OFH03
| — | — | — | View |
| Fiber Optic Tools and Accessories OFH02 |
OFH02
| — | — | — | View |
| Fiber Optic Tools and Accessories OFH01 |
OFH01
| — | — | — | View |
| Fiber Optic Tools and Accessories OFF32 Current |
OFF32
| — | — | — |
