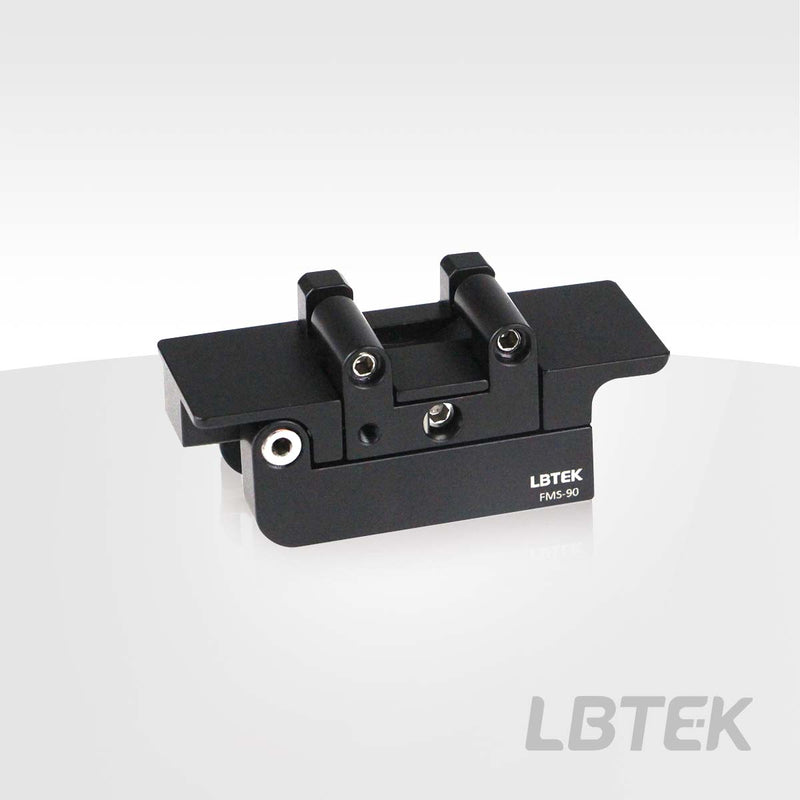

Flip Mounts FMS-90

The LBTEK 90° Flip Mount is designed for mounting round optical components up to Ø25.4 mm with a maximum thickness of 6 mm or rectangular optical components ranging in size from 24 mm × 10 mm to 50 mm × 50 mm. The mount secures the optical component via clamping with two rubber-tipped screws to prevent scratches. The pivot structure allows the mount to be fixed at nearly any angle between 0° and 90°, with magnets at the 0° and 90° positions providing additional securing force. The bottom features M4 and M6 countersunk holes for mounting the flip mount onto posts. The pivot structure consists of one screw and two ball contacts, which are factory-set and require no user adjustment. Note: The magnet at the 0° position slightly pulls the mount to close at a minimal angle. At the 0° position, the angular repeatability is less than 25 µrad.
