product
WaveQuanta

High Precision Rotatable Focus-Adjustable Collimator PRACFCD-11-A-PC

PRACFCD-11-A-PC
$714.01
In Stock· Ships in 8.0 weeks
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

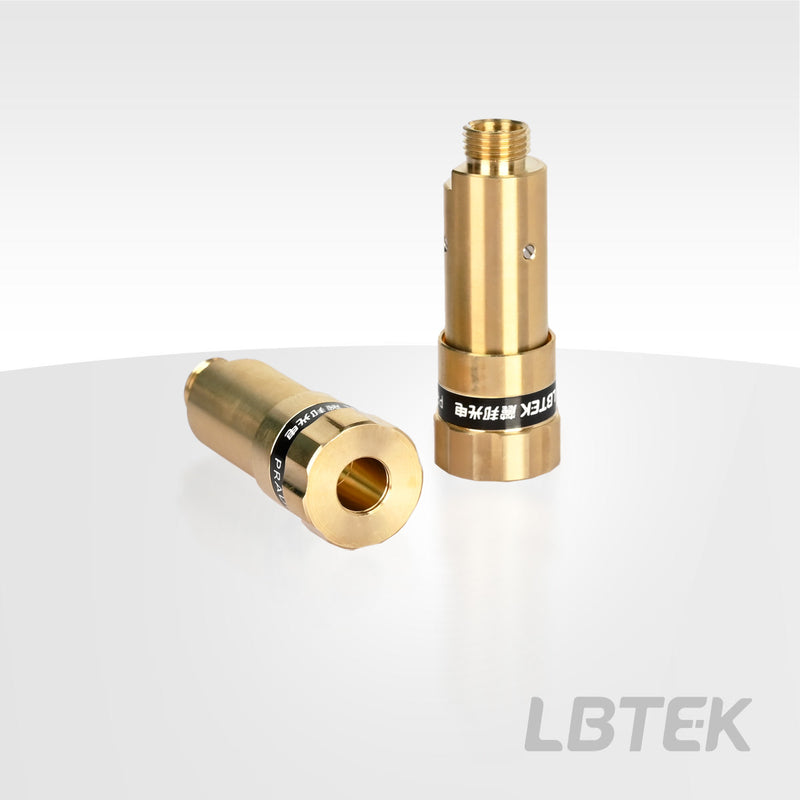

LBTek High Precision Rotatable Adjustable Focus Collimator, FC/PC PRACFCD-11-A-PC

Effective Focal Length 11.0 mm
Anti-reflection coating range<sup>e</sup> 400 nm-700 nm
Output beam waist diameter<sup>a</sup> 2.06 mm
Housing Diameter 12 mm
Interface Type FC/PC
Numerical Aperture (Output) 0.18
Tube Material Silicon copper alloy
Beam Divergence ≤0.025°
Mode Field Diameter (Output) 3.5 μm
Working Distance (Long) 3249 mm
Beam Diameter (Output) 4 mm
Length Tolerance ±1 mm
Pointing Stability < 2 mrad
Specification Sheet PDF — Download
Lead Time: 8.0 week1s
CAD Drawing Download
3D Model (STL) STL — Download
product
WaveQuanta

High Precision Rotatable Focus-Adjustable Collimator PRADFCD-X-3

PRADFCD-X-3
$33.56
Request Quote
product
WaveQuanta

High Precision Rotatable Focus-Adjustable Collimator PRADFCD-X-2

PRADFCD-X-2
$33.56
Request Quote
product
WaveQuanta

High Precision Rotatable Focus-Adjustable Collimator PRADFCD-X-1

PRADFCD-X-1
$33.56
Request Quote

Product Family: High Precision Rotatable Adjustable Focus Collimator (39 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-X-3 PRADFCD-X-3 — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-X-1 PRADFCD-X-1 — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-X-2 PRADFCD-X-2 — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-4.5-A-PC PRACFCD-4.5-A-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-4.5-B-PC PRACFCD-4.5-B-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-4.5-C-PC PRACFCD-4.5-C-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-7.5-A-PC PRACFCD-7.5-A-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-7.5-B-PC PRACFCD-7.5-B-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-7.5-C-PC PRACFCD-7.5-C-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-11-A-PC Current PRACFCD-11-A-PC — — —
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-11-B-PC PRACFCD-11-B-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-11-C-PC PRACFCD-11-C-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-4.5-A-PC PRADFCD-4.5-A-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-4.5-B-PC PRADFCD-4.5-B-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-4.5-C-PC PRADFCD-4.5-C-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-7.5-A-PC PRADFCD-7.5-A-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-7.5-B-PC PRADFCD-7.5-B-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-7.5-C-PC PRADFCD-7.5-C-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-11-A-PC PRADFCD-11-A-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-11-B-PC PRADFCD-11-B-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-11-C-PC PRADFCD-11-C-PC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-4.5-A-APC PRACFCD-4.5-A-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-4.5-B-APC PRACFCD-4.5-B-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-4.5-C-APC PRACFCD-4.5-C-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-7.5-A-APC PRACFCD-7.5-A-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-7.5-B-APC PRACFCD-7.5-B-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-7.5-C-APC PRACFCD-7.5-C-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-11-A-APC PRACFCD-11-A-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-11-B-APC PRACFCD-11-B-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRACFCD-11-C-APC PRACFCD-11-C-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-4.5-A-APC PRADFCD-4.5-A-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-4.5-B-APC PRADFCD-4.5-B-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-4.5-C-APC PRADFCD-4.5-C-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-7.5-A-APC PRADFCD-7.5-A-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-7.5-B-APC PRADFCD-7.5-B-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-7.5-C-APC PRADFCD-7.5-C-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-11-A-APC PRADFCD-11-A-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-11-B-APC PRADFCD-11-B-APC — — —View
High Precision Rotatable Focus-Adjustable Collimator PRADFCD-11-C-APC PRADFCD-11-C-APC — — —View
