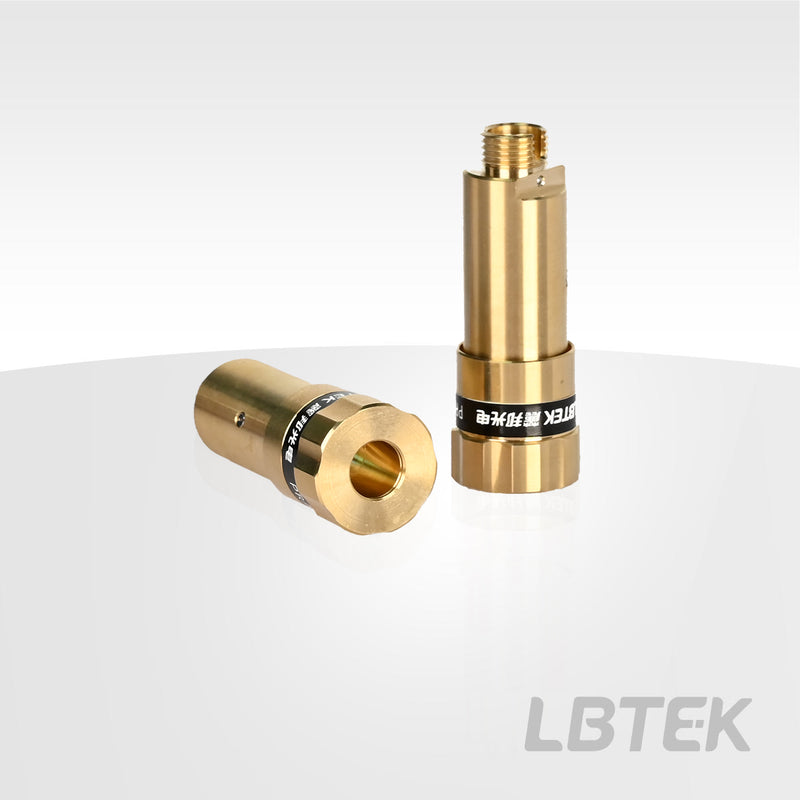

High Precision Rotatable Focus-Adjustable Collimator PRACFCD-4.5-A-APC

PRACFCD-4.5-A-APC
$714.01
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

LBTek High Precision Rotatable Adjustable Focus Collimator, FC/APC PRACFCD-4.5-A-APC

Effective Focal Length 4.5 mm
Anti-reflection coating range<sup>e</sup> 400 - 700 nm
Output beam waist diameter<sup>a</sup> 0.84 mm
Housing Diameter 12 mm
Interface Type FC/APC
Numerical Aperture (Output) 0.45
Tube Material Silicon copper alloy
Beam Divergence ≤0.05°
Mode Field Diameter (Output) 3.5 μm
Working Distance (Long) 546 mm
Beam Diameter (Output) 4 mm
Length Tolerance ±1 mm
Pointing Stability < 2 mrad
Specification Sheet PDF — Download
Lead Time: 0.0 week0.0s
CAD Drawing Download
3D Model (STL) STL — Download
