Laser Line PBS — Model MPBS24-405

UV Fused Silica, optimized for 405 nm, cube size 25.4 mm×25.4 mm×25.4 mm, extinction ratio >3000:1.

Overview

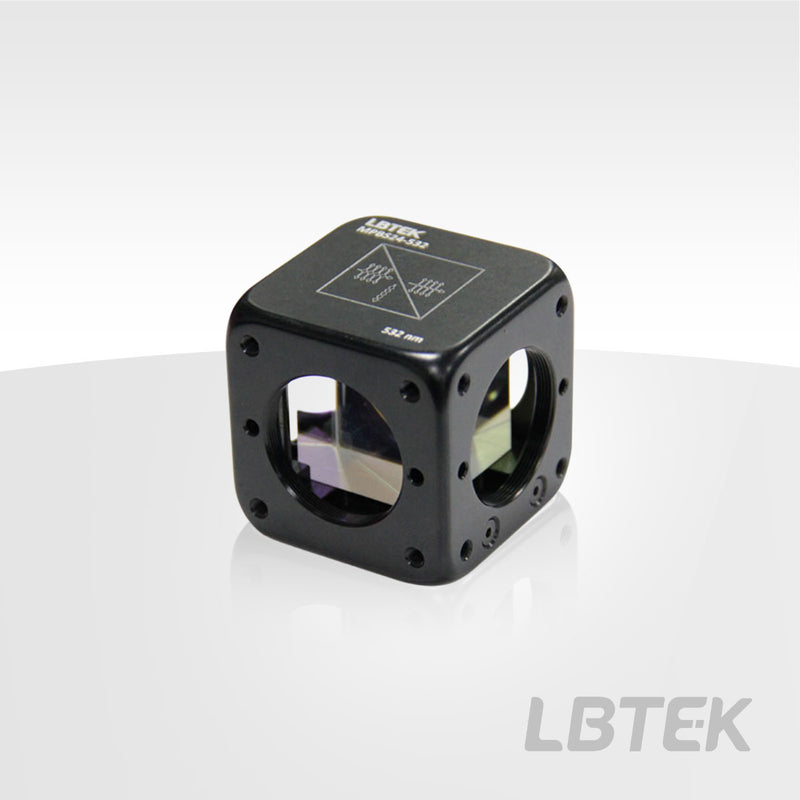

LBTEK mounts the 25.4 mm laser line polarizing beamsplitter cube inside a cubic housing compatible with 30 mm cage systems. A scribe line on the top face marks the beam direction. M3 threaded holes on the side allow compatibility with 30 mm cage systems, and four SM1 internal-thread ports accept 25.4 mm lens tubes. M4 threaded holes at the base support post mounting.

Key Features

Extinction ratio (Tp:Ts) >3000:1
Optical coatings: AR coating + beamsplitter film
Transmitted wavefront error: λ/4
Surface quality: 20/10
Beam deviation: transmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin;
Substrate: UV Fused Silica

Applications

Laser polarization control and beam separation
Interferometry and polarimetry setups
Optical isolators and magneto-optic modulators
Polarization-sensitive imaging and spectroscopy
High-contrast laser systems requiring stable extinction

Optical component material	UV Fused Silica
Size	25.4 mm×25.4 mm×25.4 mm
Dimensional tolerance	+0.0/-0.2 mm
Clear Aperture	>80% CA
Operating Wavelength	405 nm
Coating	AR coating + beamsplitter film
Extinction ratio (Tp:Ts)	>3000:1
Surface finish (scratches/pits)	20/10
Transmitted Wavefront Error (TWE) (@633 nm)	λ/4
Surface Flatness (@633 nm)	λ/4
Exit angle	transmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin;

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download
