Laser Line Polarizing Beamsplitter Cube MPBS24-850

WaveQuanta

Laser Line Polarizing Beamsplitter Cubes MPBS24-850

Name: Laser Line Polarizing Beamsplitter Cubes MPBS24-850
Brand: WaveQuanta
SKU: MPBS24-850
Price: 513.42 SGD
Availability: InStock

MPBS24-850

$513.42

In Stock· Ships in 1.0 week

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Fiber Optics Optomechanics

RoHS REACH

Laser Line Polarizing Beamsplitter Cubes — Model MPBS24-850

UV Fused Silica, optimized for 850 nm, cube size 25.4 mm×25.4 mm×25.4 mm, extinction ratio >3000:1.

Overview

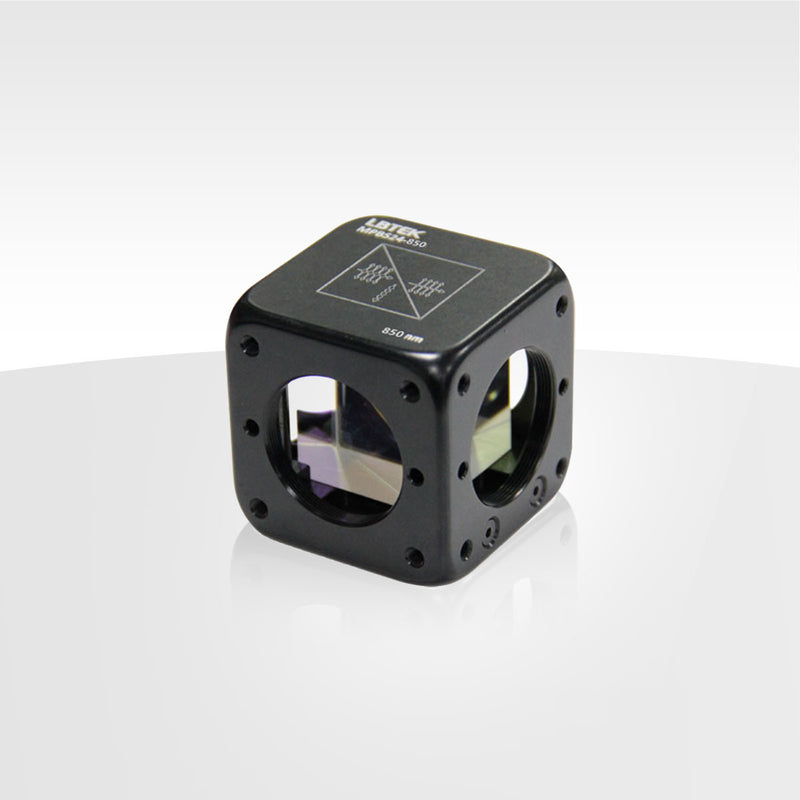

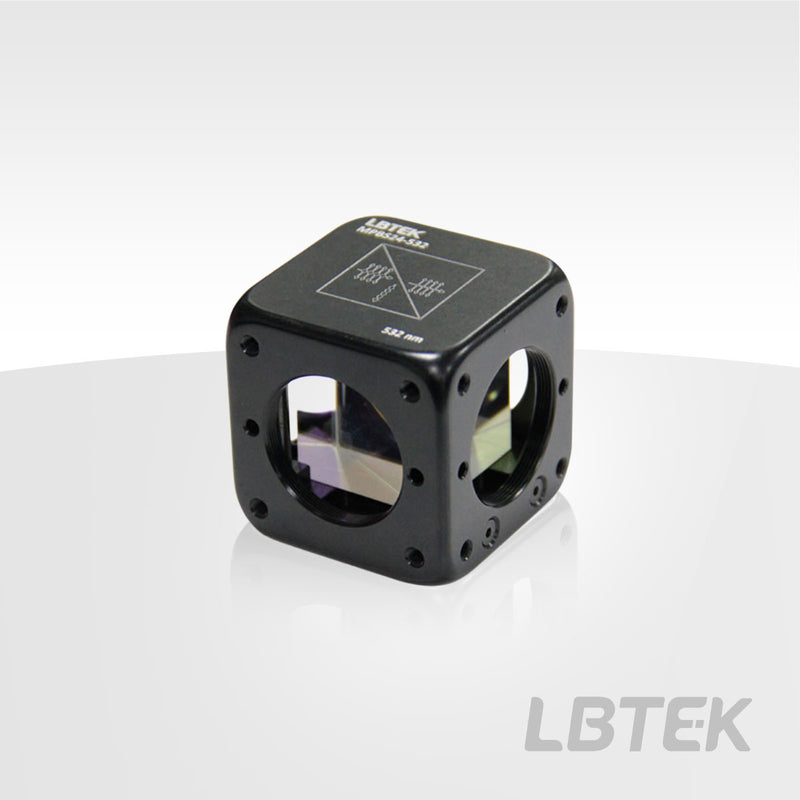

The 25.4 mm laser line polarizing beamsplitter cube is mounted inside a cubic housing compatible with 30 mm cage systems. A scribe line on the top face marks the beam direction. M3 threaded holes on the side allow compatibility with 30 mm cage systems, and four SM1 internal-thread ports accept 25.4 mm lens tubes. M4 threaded holes at the base support post mounting.

Key Features

Extinction ratio (Tp:Ts) >3000:1
Optical coatings: AR coating + beamsplitter film
Transmitted wavefront error: λ/4
Surface quality: 20/10
Beam deviation: Transmission: 0°±5 arcmin; Reflection: 90°±10 arcmin
Substrate: UV Fused Silica

Applications

Laser polarization control and beam separation
Interferometry and polarimetry setups
Optical isolators and magneto-optic modulators
Polarization-sensitive imaging and spectroscopy
High-contrast laser systems requiring stable extinction

Optical component material	UV Fused Silica
Size	25.4 mm×25.4 mm×25.4 mm
Dimensional tolerance	+0.0/-0.2 mm
Clear Aperture	80% CA
Operating Wavelength	850 nm
Coating	AR Coating, Beamsplitter Coating
Extinction ratio (Tp:Ts)	>3000:1
Surface finish (scratches/pits)	20/10
Transmitted Wavefront Error (TWE) (@633 nm)	λ/4
Surface Flatness (@633 nm)	λ/4
Exit angle	Transmission: 0°±5 arcmin; Reflection: 90°±10 arcmin
Mechanical housing dimensions	42.0 mm (L) x 42.0 mm (W) x 42.2 mm (H)

Specification Sheet PDF — Download

Lead Time: 1.0 week1.0s

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Laser Line Polarizing Beamsplitter Cubes (26 variants)

Product ▴▾	SKU	Size ▴▾	Operating Wavelength ▴▾	Extinction ratio (Tp:Ts) ▴▾
Laser Line Polarizing Beamsplitter Cubes PBS22-532	`PBS22-532`	12.7 mm×12.7 mm×12.7 mm	532 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS22-633	`PBS22-633`	12.7 mm×12.7 mm×12.7 mm	633 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS22-780	`PBS22-780`	12.7 mm×12.7 mm×12.7 mm	780 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS22-1064	`PBS22-1064`	12.7 mm×12.7 mm×12.7 mm	1064 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS22-1550	`PBS22-1550`	12.7 mm×12.7 mm×12.7 mm	1550 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-532	`PBS24-532`	25.4 mm×25.4 mm×25.4 mm	532 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-405	`PBS24-405`	25.4 mm×25.4 mm×25.4 mm	405 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-633	`PBS24-633`	25.4 mm×25.4 mm×25.4 mm	633 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-780	`PBS24-780`	25.4 mm×25.4 mm×25.4 mm	780 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-808	`PBS24-808`	25.4 mm×25.4 mm×25.4 mm	808 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-830	`PBS24-830`	25.4 mm×25.4 mm×25.4 mm	830 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-850	`PBS24-850`	25.4 mm×25.4 mm×25.4 mm	850 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-1030	`PBS24-1030`	25.4 mm×25.4 mm×25.4 mm	1030 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-1064	`PBS24-1064`	25.4 mm×25.4 mm×25.4 mm	1064 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS24-1550	`PBS24-1550`	25.4 mm×25.4 mm×25.4 mm	1550 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes PBS22-935-SP	`PBS22-935-SP`	12.7 mm×12.7 mm×12.7 mm	935 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-1550	`MPBS24-1550`	25.4 mm×25.4 mm×25.4 mm	1550 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-780	`MPBS24-780`	25.4 mm×25.4 mm×25.4 mm	780 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-633	`MPBS24-633`	25.4 mm×25.4 mm×25.4 mm	633 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-532	`MPBS24-532`	25.4 mm×25.4 mm×25.4 mm	532 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-405	`MPBS24-405`	25.4 mm×25.4 mm×25.4 mm	405 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-808	`MPBS24-808`	25.4 mm×25.4 mm×25.4 mm	808 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-830	`MPBS24-830`	25.4 mm×25.4 mm×25.4 mm	830 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-850 Current	`MPBS24-850`	25.4 mm×25.4 mm×25.4 mm	850 nm	>3000:1
Laser Line Polarizing Beamsplitter Cubes MPBS24-1030	`MPBS24-1030`	25.4 mm×25.4 mm×25.4 mm	1030 nm	>3000:1	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-1064	`MPBS24-1064`	25.4 mm×25.4 mm×25.4 mm	1064 nm	>3000:1	View
