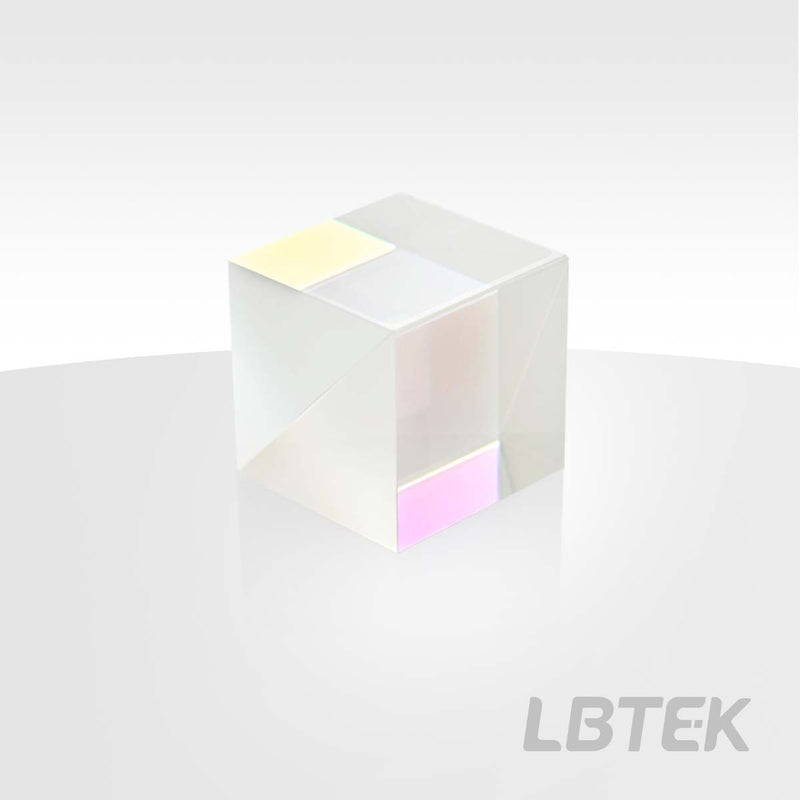

Laser Line PBS — Model PBS24-780

UV Fused Silica, optimized for 780 nm, cube size 25.4 mm×25.4 mm×25.4 mm, extinction ratio >3000:1.

Overview

LBTEK offers 10 design wavelengths (405, 532, 633, 780, 808, 830, 850, 1030, 1064 and 1550 nm). On a polarizing beamsplitter cube, the prism marked with a black dot on its top face indicates the hypotenuse coated with a dielectric polarizing beamsplitter film. This dielectric beamsplitter film reflects S-polarized light and transmits P-polarized light. Any of the four side faces can serve as the input surface. For optimal polarization performance, the input beam should enter at normal incidence on the right-angle face of the prism whose hypotenuse carries the polarizing beamsplitter film.

Key Features

Extinction ratio (Tp:Ts) >3000:1
Spectroscopic film: Tp>95%, Rs>99.5%
AR coating: Ravg<0.25% (6°angle of incidence, per surface)
Optical coatings: AR coating + beamsplitter film
Transmitted wavefront error: λ/4
Surface quality: 20/10
Beam deviation: transmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin;
Substrate: UV Fused Silica

Applications

Laser polarization control and beam separation
Interferometry and polarimetry setups
Optical isolators and magneto-optic modulators
Polarization-sensitive imaging and spectroscopy
High-contrast laser systems requiring stable extinction

Optical component material	UV Fused Silica
Size	25.4 mm×25.4 mm×25.4 mm
Dimensional tolerance	+0.0/-0.2 mm
Clear Aperture	80% CA
Operating Wavelength	780 nm
Coating	AR coating + beamsplitter film
Extinction ratio (Tp:Ts)	>3000:1
Surface finish (scratches/pits)	20/10
Transmitted Wavefront Error (TWE) (@633 nm)	λ/4
Surface Flatness (@633 nm)	λ/4
Exit angle	transmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin;
