What documentation is available for Laser Line Polarizing Beamsplitter Cubes PBS22-780?

The following documents are available for download on the Laser Line Polarizing Beamsplitter Cubes PBS22-780 product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Laser Line Polarizing Beamsplitter Cubes PBS22-780 available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta. Typical lead time is 0.0 week.Contact our sales team for current availability and volume pricing.

WaveQuanta

Laser Line Polarizing Beamsplitter Cubes PBS22-780

Name: Laser Line Polarizing Beamsplitter Cubes PBS22-780
Brand: WaveQuanta
SKU: PBS22-780
Price: 428.15 SGD
Availability: InStock

PBS22-780

$428.15

In Stock

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Fiber Optics Optomechanics

RoHS REACH

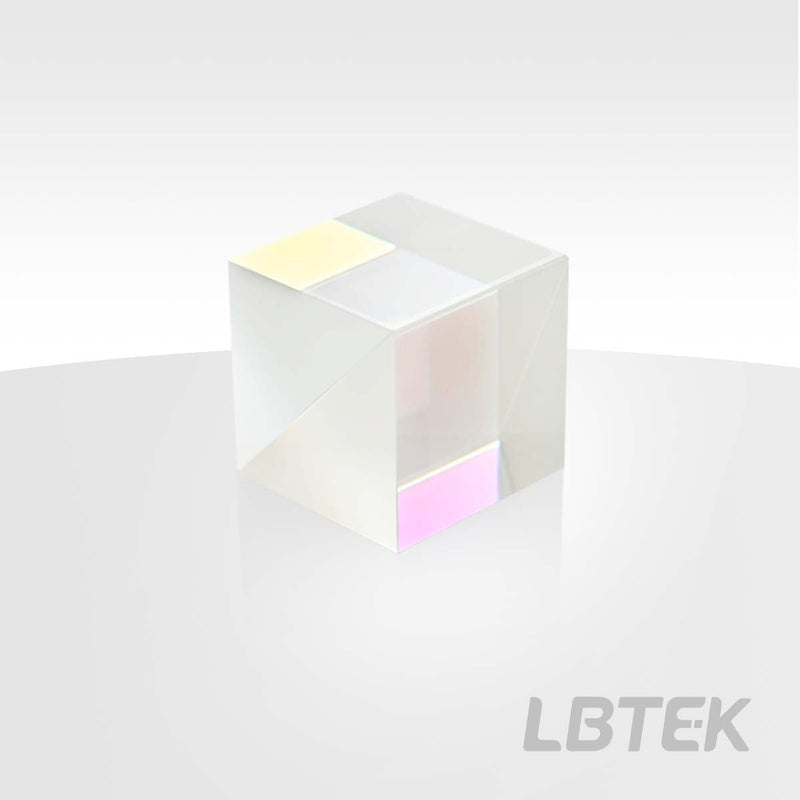

Laser Line PBS — Model PBS22-780

UV Fused Silica, optimized for 780 nm, cube size 12.7 mm×12.7 mm×12.7 mm, extinction ratio >3000:1.

Overview

LBTEK offers 10 design wavelengths (405, 532, 633, 780, 808, 830, 850, 1030, 1064 and 1550 nm). On a polarizing beamsplitter cube, the prism marked with a black dot on its top face indicates the hypotenuse coated with a dielectric polarizing beamsplitter film. This dielectric beamsplitter film reflects S-polarized light and transmits P-polarized light. Any of the four side faces can serve as the input surface. For optimal polarization performance, the input beam should enter at normal incidence on the right-angle face of the prism whose hypotenuse carries the polarizing beamsplitter film.

Key Features

Extinction ratio (Tp:Ts) >3000:1
Spectroscopic film: Tp>95%, Rs>99.5%
AR coating: Ravg<0.25% (6°angle of incidence, per surface)
Optical coatings: AR coating + beamsplitter film
Transmitted wavefront error: λ/4
Surface quality: 40/20
Beam deviation: transmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin;
Substrate: UV Fused Silica

Applications

Laser polarization control and beam separation
Interferometry and polarimetry setups
Optical isolators and magneto-optic modulators
Polarization-sensitive imaging and spectroscopy
High-contrast laser systems requiring stable extinction

Optical component material	UV Fused Silica
Size	12.7 mm×12.7 mm×12.7 mm
Dimensional tolerance	+0.0/-0.2 mm
Clear Aperture	80% CA
Operating Wavelength	780 nm
Coating	AR coating + beamsplitter film
Extinction ratio (Tp:Ts)	>3000:1
Surface finish (scratches/pits)	40/20
Transmitted Wavefront Error (TWE) (@633 nm)	λ/4
Surface Flatness (@633 nm)	λ/4
Exit angle	transmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin;

Specification Sheet PDF — Download

Lead Time: 0.0 week0.0s

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Laser Line Polarizing Beamsplitter Cubes (26 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Laser Line Polarizing Beamsplitter Cubes PBS22-532	`PBS22-532`	12.7 mm×12.7 mm×12.7 mm	80% CA	532 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS22-633	`PBS22-633`	12.7 mm×12.7 mm×12.7 mm	80% CA	633 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS22-780 Current	`PBS22-780`	12.7 mm×12.7 mm×12.7 mm	80% CA	780 nm
Laser Line Polarizing Beamsplitter Cubes PBS22-1064	`PBS22-1064`	12.7 mm×12.7 mm×12.7 mm	80% CA	1064 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS22-1550	`PBS22-1550`	12.7 mm×12.7 mm×12.7 mm	80% CA	1550 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-532	`PBS24-532`	25.4 mm×25.4 mm×25.4 mm	80% CA	532 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-405	`PBS24-405`	25.4 mm×25.4 mm×25.4 mm	80% CA	405 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-633	`PBS24-633`	25.4 mm×25.4 mm×25.4 mm	80% CA	633 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-780	`PBS24-780`	25.4 mm×25.4 mm×25.4 mm	80% CA	780 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-808	`PBS24-808`	25.4 mm×25.4 mm×25.4 mm	80% CA	808 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-830	`PBS24-830`	25.4 mm×25.4 mm×25.4 mm	80% CA	830 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-850	`PBS24-850`	25.4 mm×25.4 mm×25.4 mm	80% CA	850 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-1030	`PBS24-1030`	25.4 mm×25.4 mm×25.4 mm	80% CA	1030 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-1064	`PBS24-1064`	25.4 mm×25.4 mm×25.4 mm	80% CA	1064 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS24-1550	`PBS24-1550`	25.4 mm×25.4 mm×25.4 mm	80% CA	1550 nm	View
Laser Line Polarizing Beamsplitter Cubes PBS22-935-SP	`PBS22-935-SP`	12.7 mm×12.7 mm×12.7 mm	>80% CA	935 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-1550	`MPBS24-1550`	25.4 mm×25.4 mm×25.4 mm	80% CA	1550 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-780	`MPBS24-780`	25.4 mm×25.4 mm×25.4 mm	80% CA	780 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-633	`MPBS24-633`	25.4 mm×25.4 mm×25.4 mm	80% CA	633 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-532	`MPBS24-532`	25.4 mm×25.4 mm×25.4 mm	80% CA	532 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-405	`MPBS24-405`	25.4 mm×25.4 mm×25.4 mm	>80% CA	405 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-808	`MPBS24-808`	25.4 mm×25.4 mm×25.4 mm	80% CA	808 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-830	`MPBS24-830`	25.4 mm×25.4 mm×25.4 mm	80% CA	830 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-850	`MPBS24-850`	25.4 mm×25.4 mm×25.4 mm	80% CA	850 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-1030	`MPBS24-1030`	25.4 mm×25.4 mm×25.4 mm	80% CA	1030 nm	View
Laser Line Polarizing Beamsplitter Cubes MPBS24-1064	`MPBS24-1064`	25.4 mm×25.4 mm×25.4 mm	>80% CA	1064 nm	View
