Liquid Crystal Variable Retarders LCVR-H10-B
LCVR-H10-B$730.10
In Stock
Key Specifications
Wavelength
700.0nm
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
SHG Phase Matching
Calculate phase matching angles and efficiency
Wavelength ↔ Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

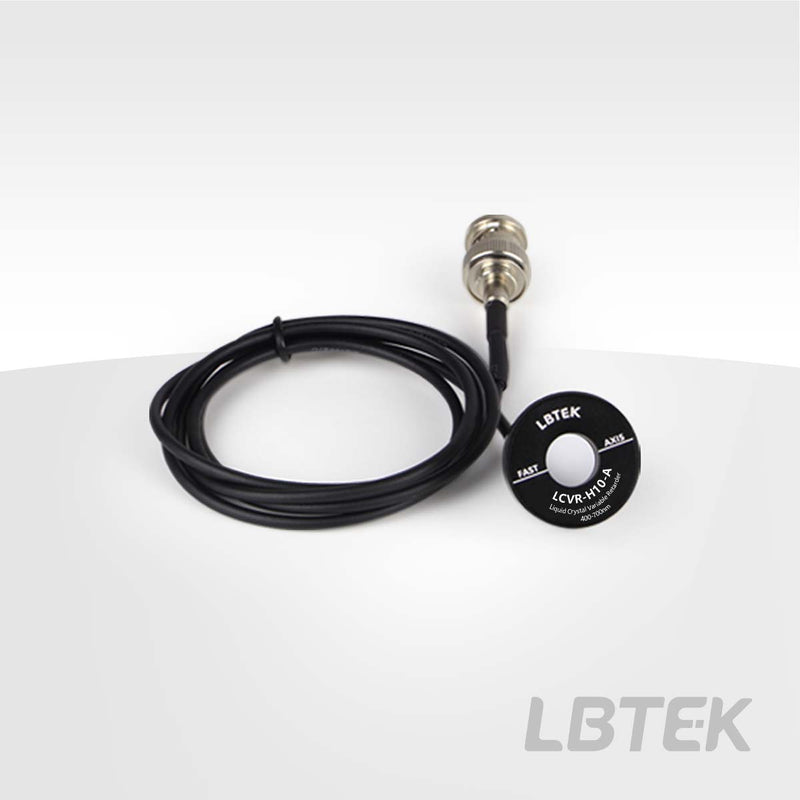

1-inch Liquid Crystal Variable Retarders, Half-Wave, Without Compensation
The LBTEK 1-inch Half-Wave Liquid Crystal Variable Retarder is coated with corresponding anti-reflection coatings for the operating wavelength range of 400-700 nm, 700-1100 nm, or 1100-1650 nm. Under the control of an external AC voltage (DC voltage not allowed), it can achieve flexible adjustment of retardation between approximately 50 nm-λ/2 or 60 nm-λ/2.
It features a clear aperture of Ø10 mm, mounted in a mechanical housing with attached wiring. The mechanical housing is compatible with Ø1-inch optical component mounts, and the fast axis direction of the liquid crystal variable retarder is clearly marked for convenient optical alignment by users.
Key Features
- Coated with anti-reflection film of 400-700 nm, 700-1100 nm, or 1100-1650 nm
- Retardation adjustable between approximately 50 nm-λ/2 or 60 nm-λ/2
- Clear aperture Ø10 mm
- Mechanical housings compatible with Ø1 inch optical component mounts
Typical Applications
- Polarization modulator
- Pure phase retarder
- Laser speckle suppression system
| Operating wavelength λ | 700-1100 nm |
| AR Coating | 700-1100 nm |
| Housing Specifications | Ø25.7×9 mm, compatible with Ø1-inch optical component mounts |
| Transmittance | >90 %@700-800 nm; >85 %@800-1100 nm |
| Component Material | Nematic liquid crystal/ITO glass |
| Reflectivity | Ravg < 0.5% (0° angle of incidence) |
| Clear Aperture | Ø10 mm |
| Transmitted Wavefront Error | <λ/4@633 nm |
| Surface Quality (Scratch/Dig) | 40/20 |
| Transmitted light deflection (without mechanical housing installed) | <1 arcmin |
| Operating Temperature | -20~45 °C |
| Transmitted light deflection (with mechanical housing installed) | <10 arcmin |
| Retardance | Approximately 50 nm-λ/2 |
| Response Time (Rise/Fall) | 15.5 ms/1.5 ms @25 °C |
| Delay Uniformity (RMS) | <λ/100 |
Retardance Curve Data: Retardance VS Voltage VS Wavelength-LCVR
Excel (.xlsx)
Retardance Curve Data: Retardance VS Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Excel (.xlsx)
Retardance Curve Data: Retardance VS Voltage VS Temperature
Excel (.xlsx)
Retardance Curve Data: Retardance at 3V Drive Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Excel (.xlsx)
Retardance Curve Data: Drive Voltage at Halfwave Retardance Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Excel (.xlsx)

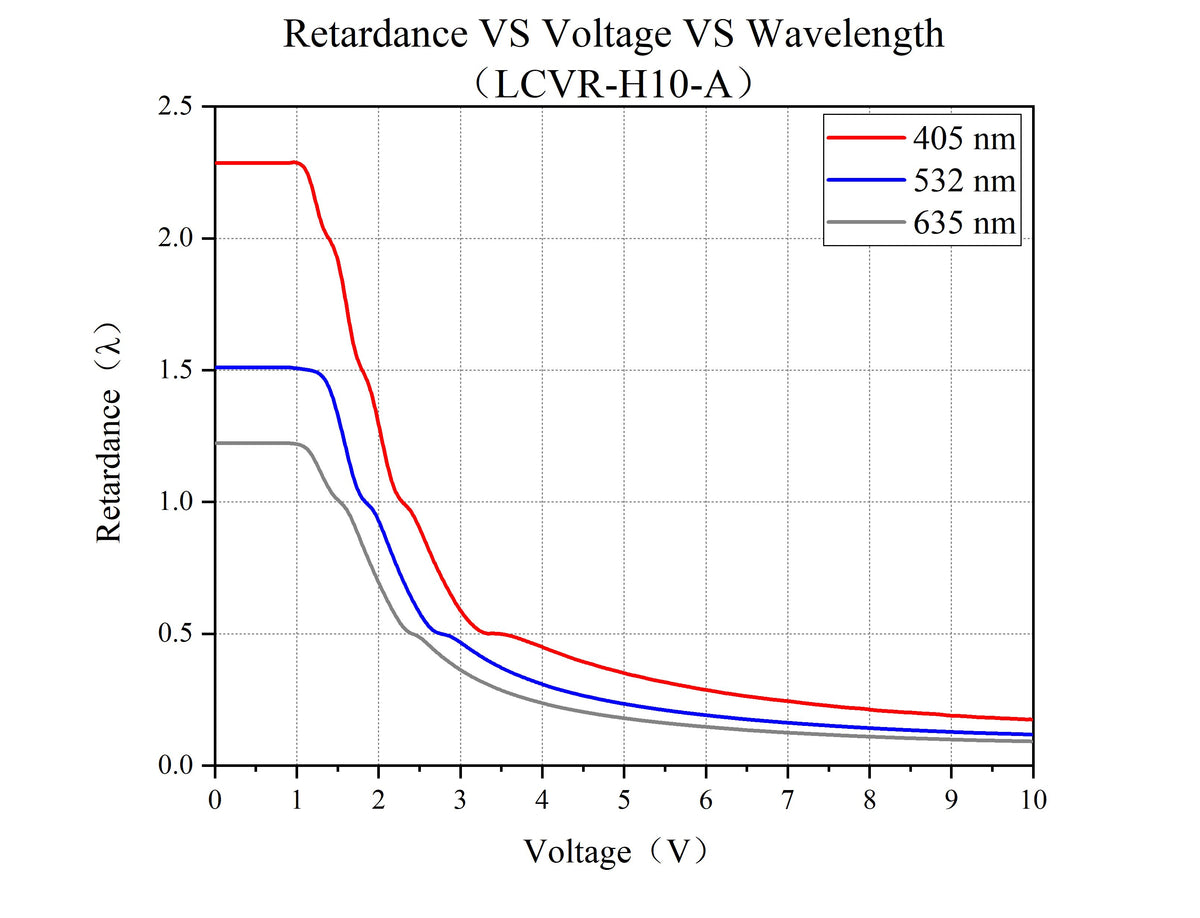

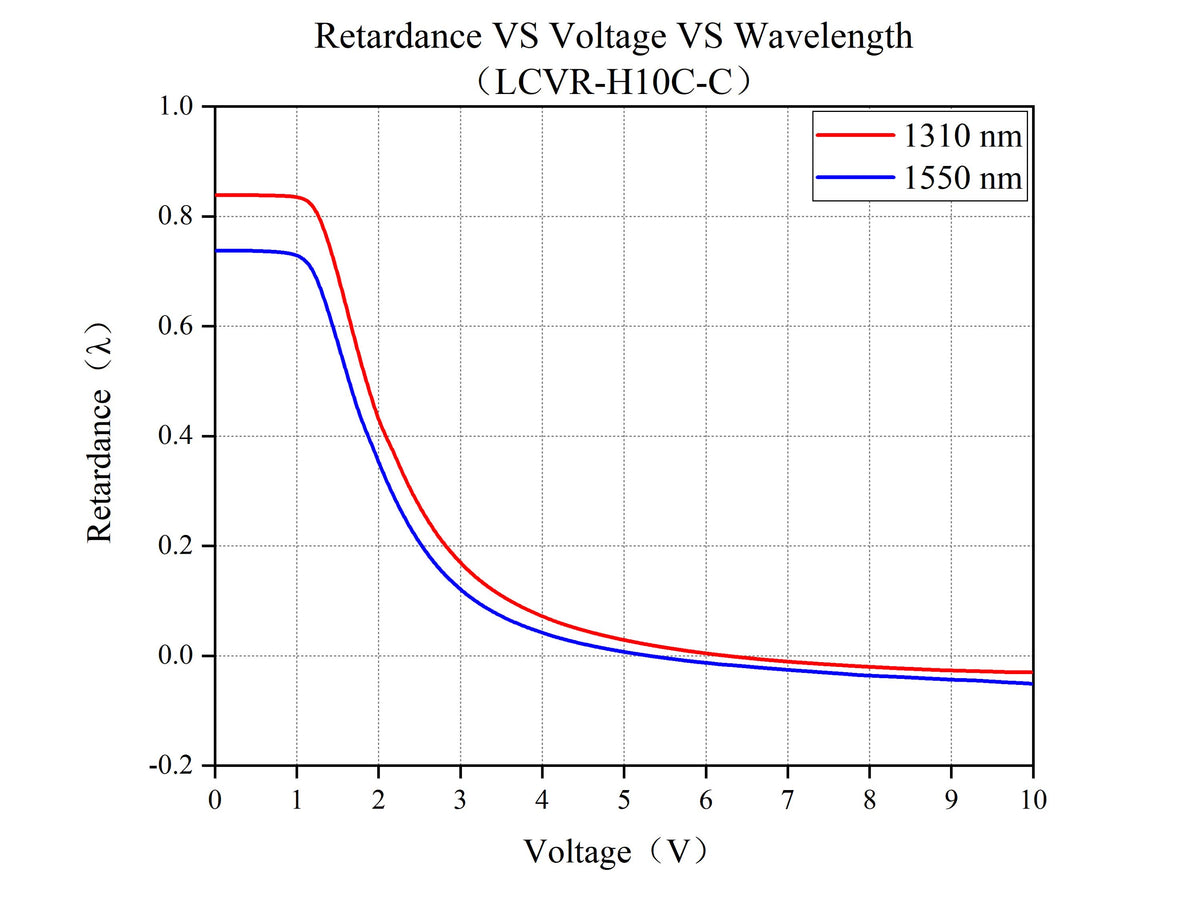

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10-A)
Curve - Retardance VS Voltage VS Wavelength (LCVR-H10-B)

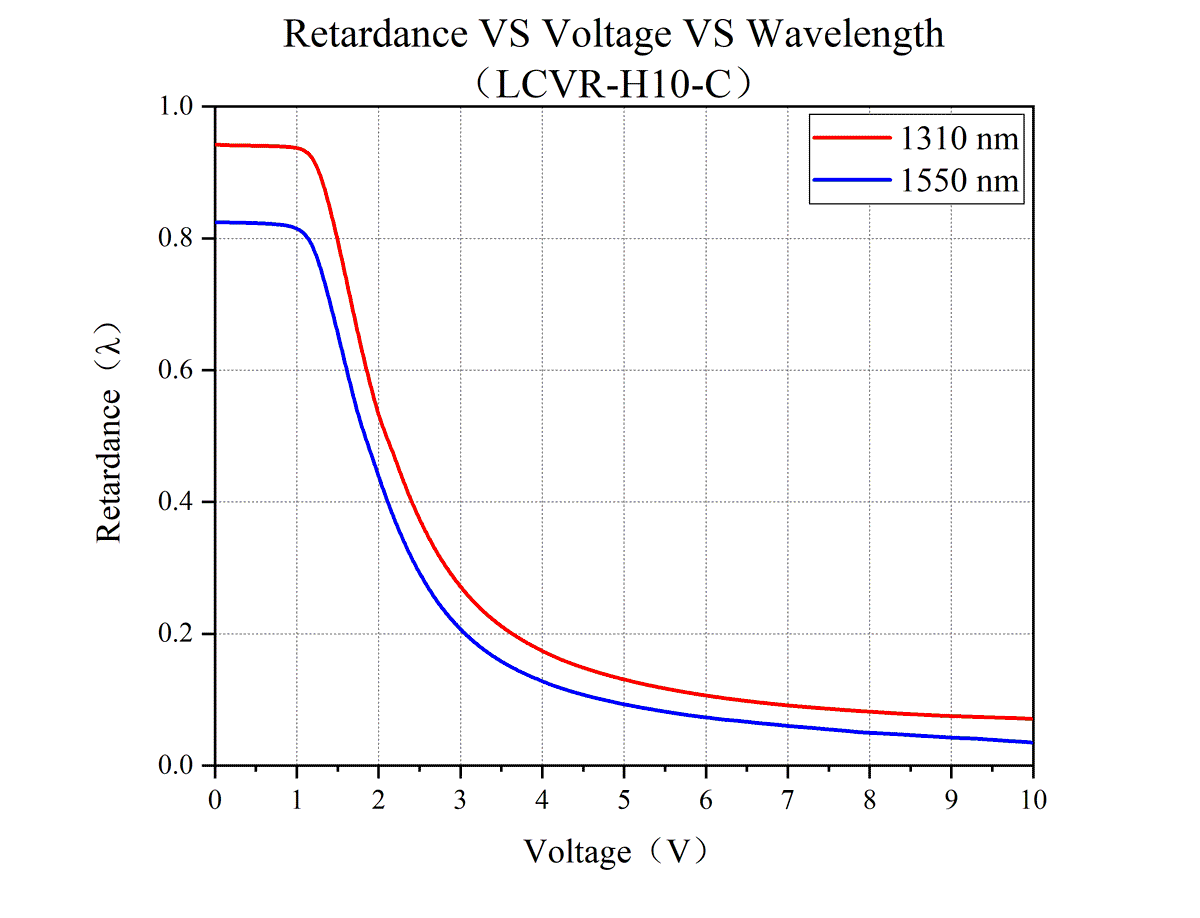

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10-C)

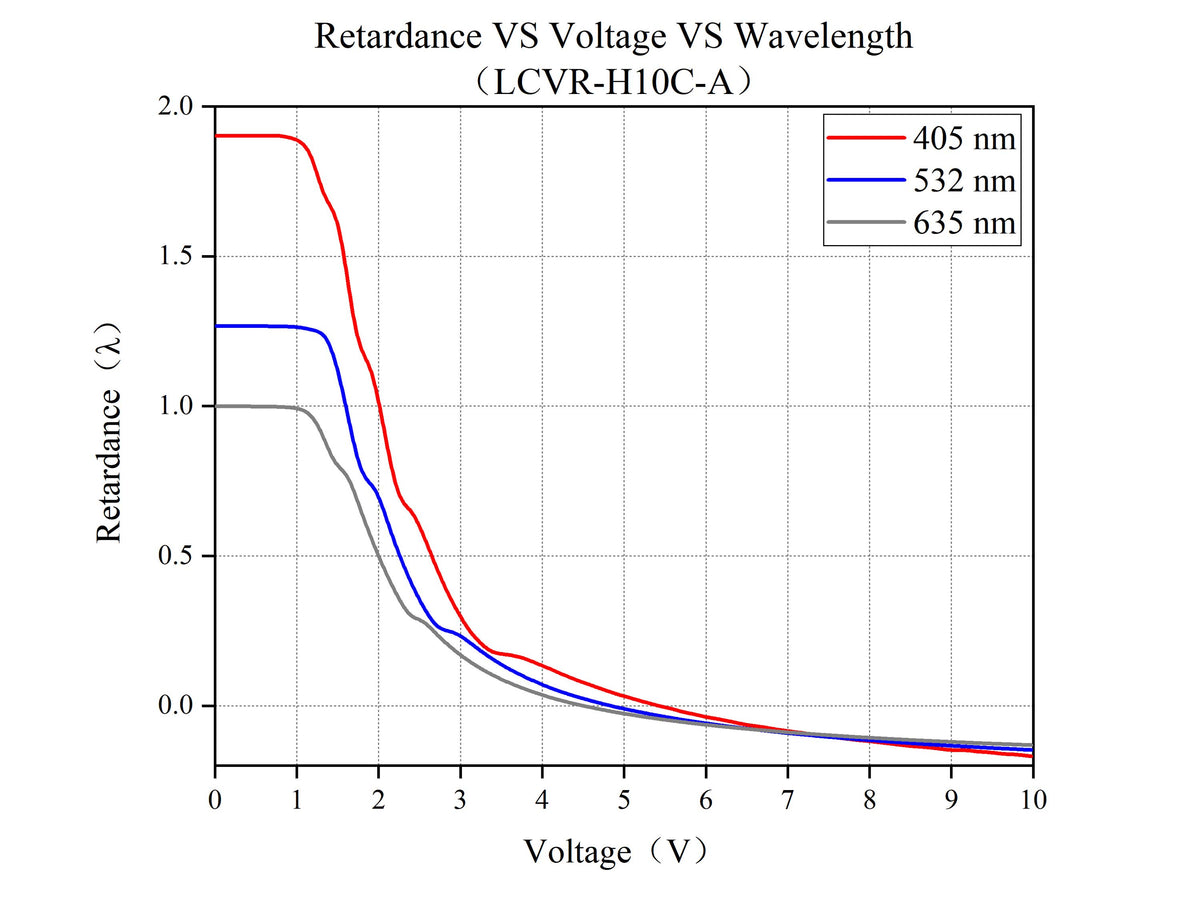

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10C-A)

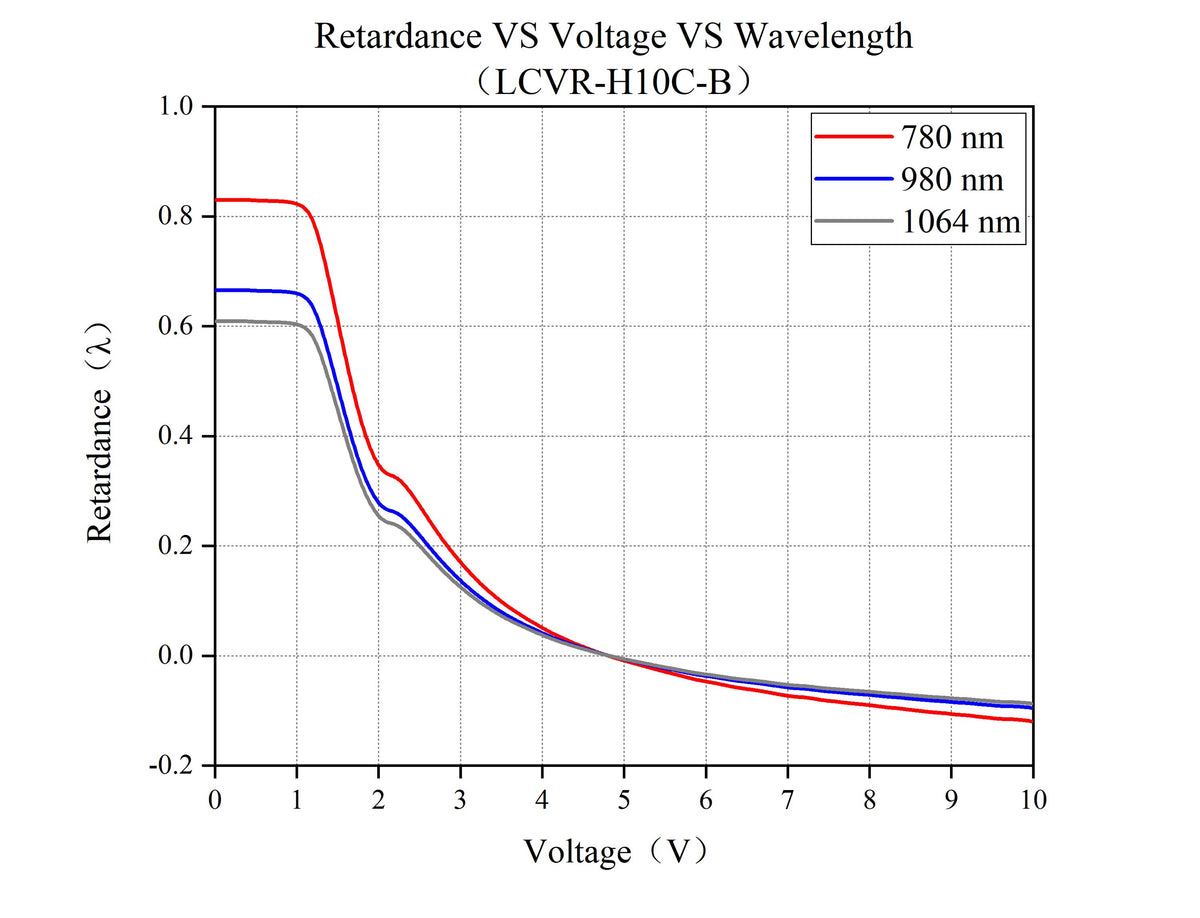

Curve - Retardance VS Voltage VS Wavelength (LCVR-H10C-B)
Curve - Retardance VS Voltage VS Wavelength (LCVR-H10C-C)

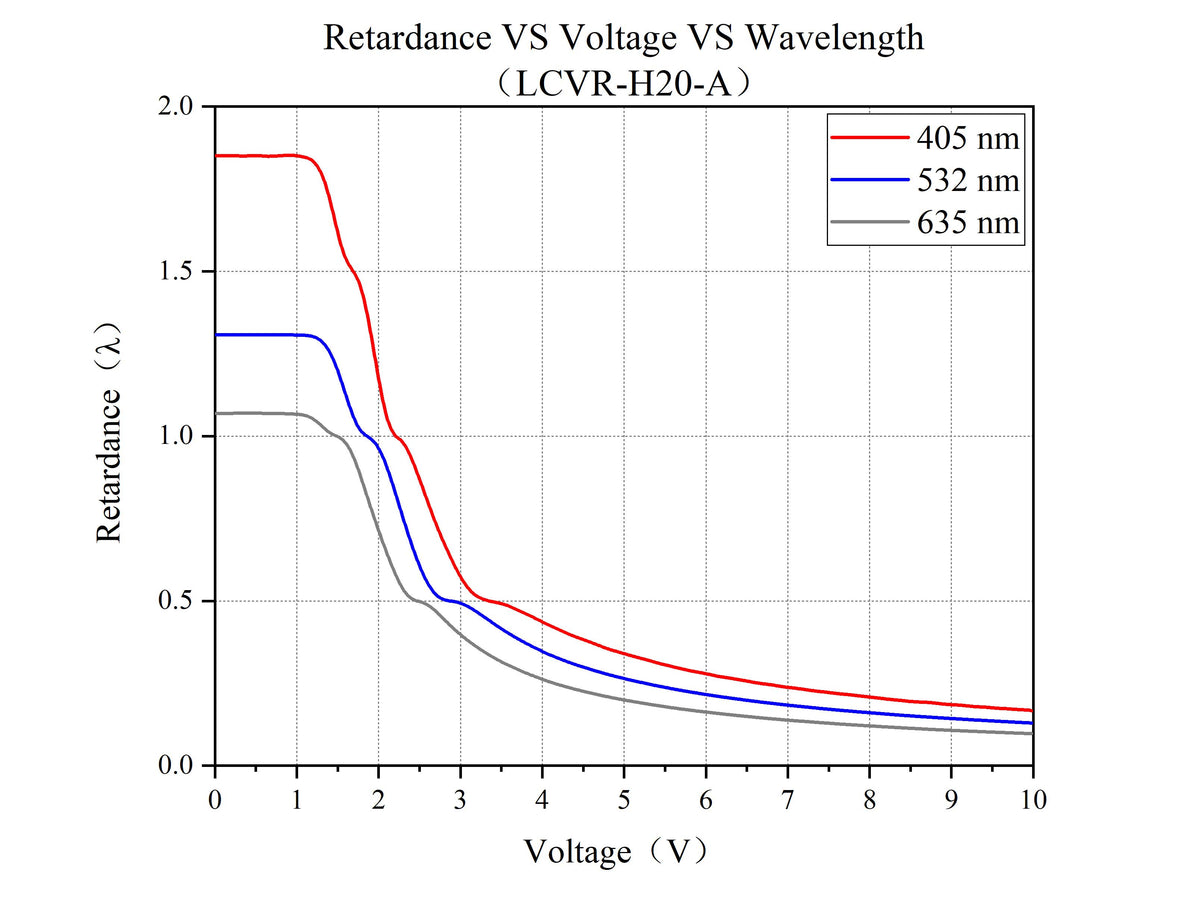

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20-A)

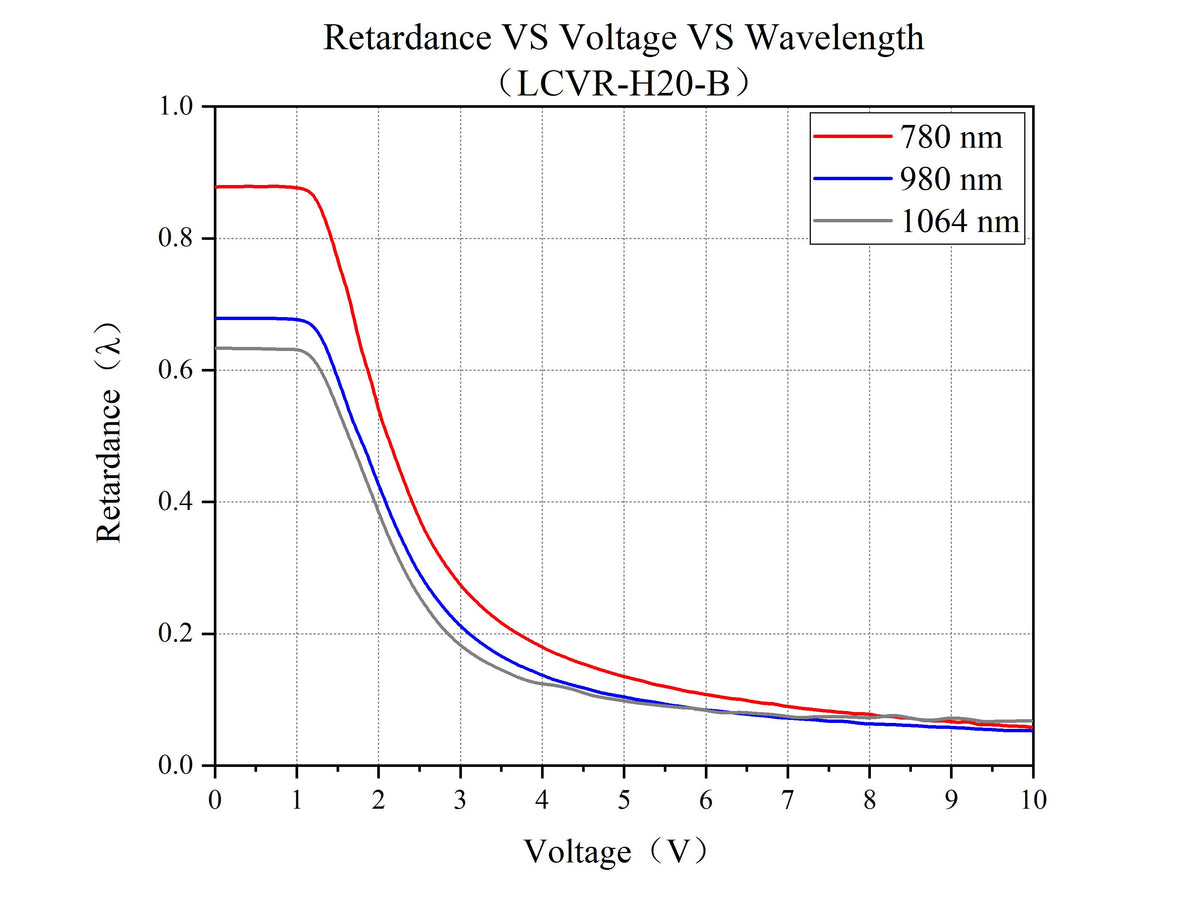

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20-B)

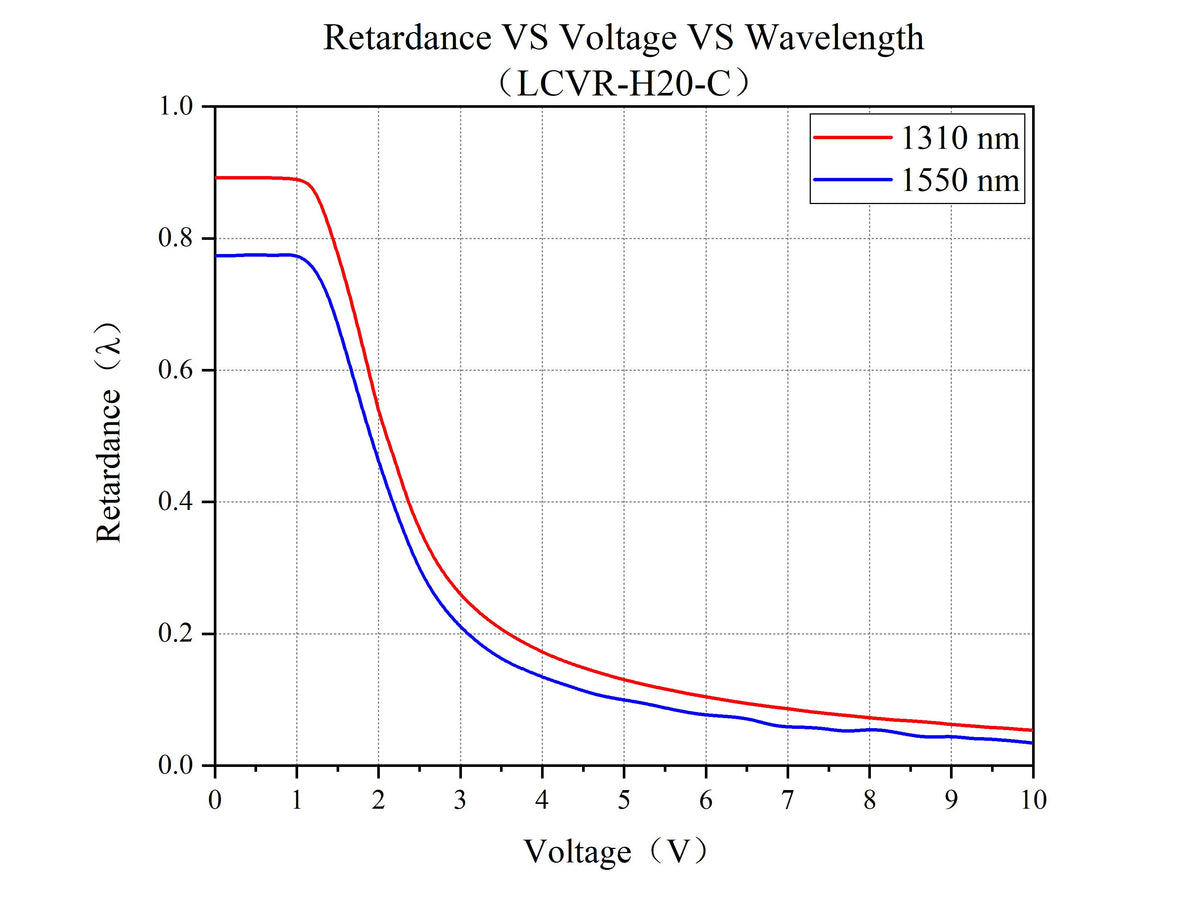

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20-C)

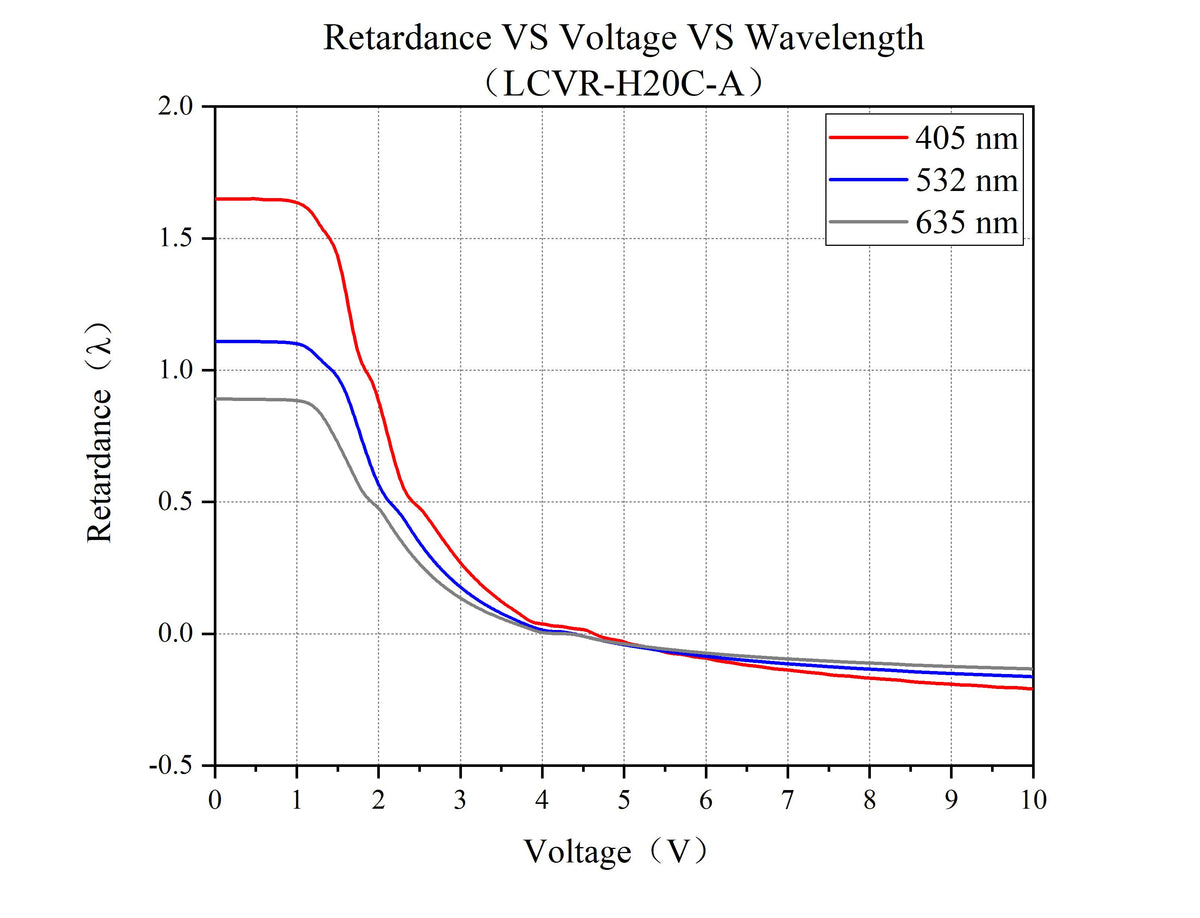

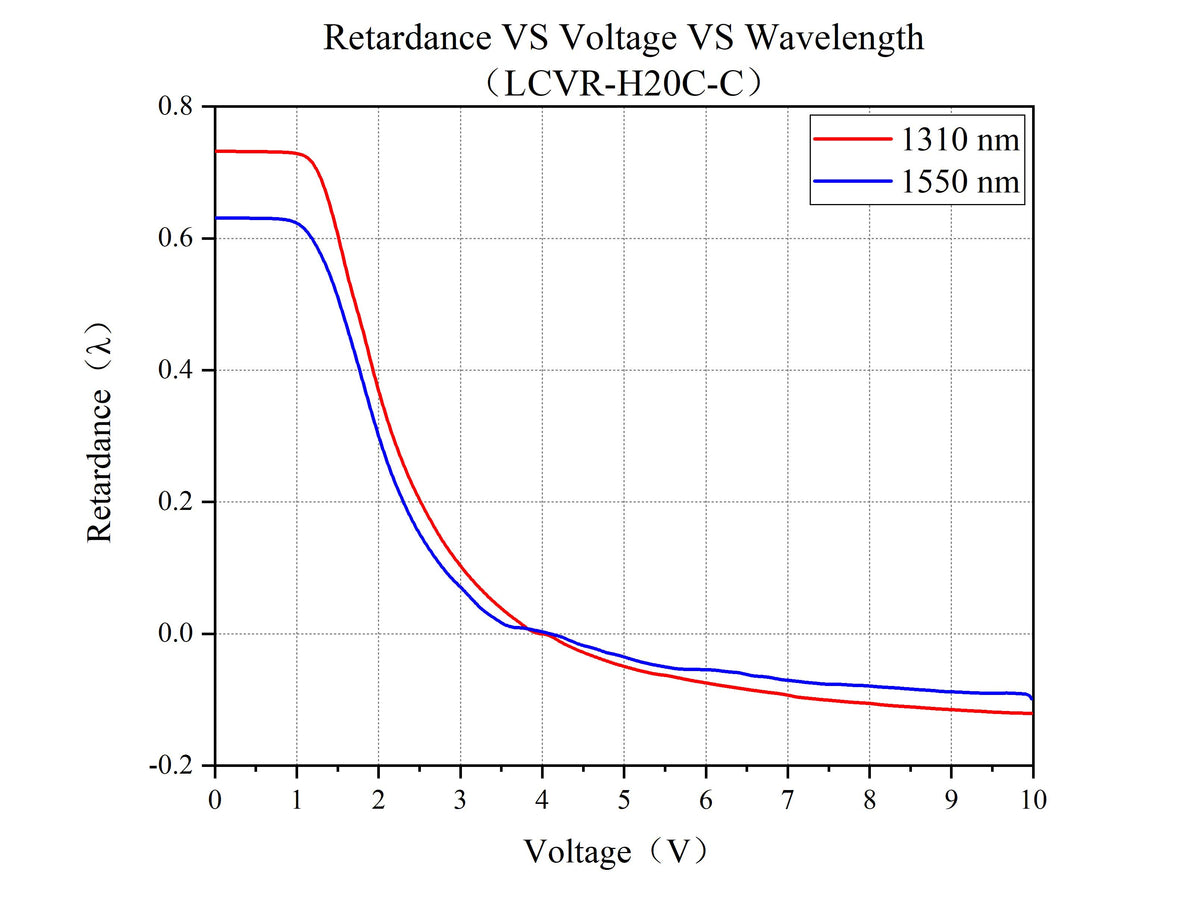

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20C-A)

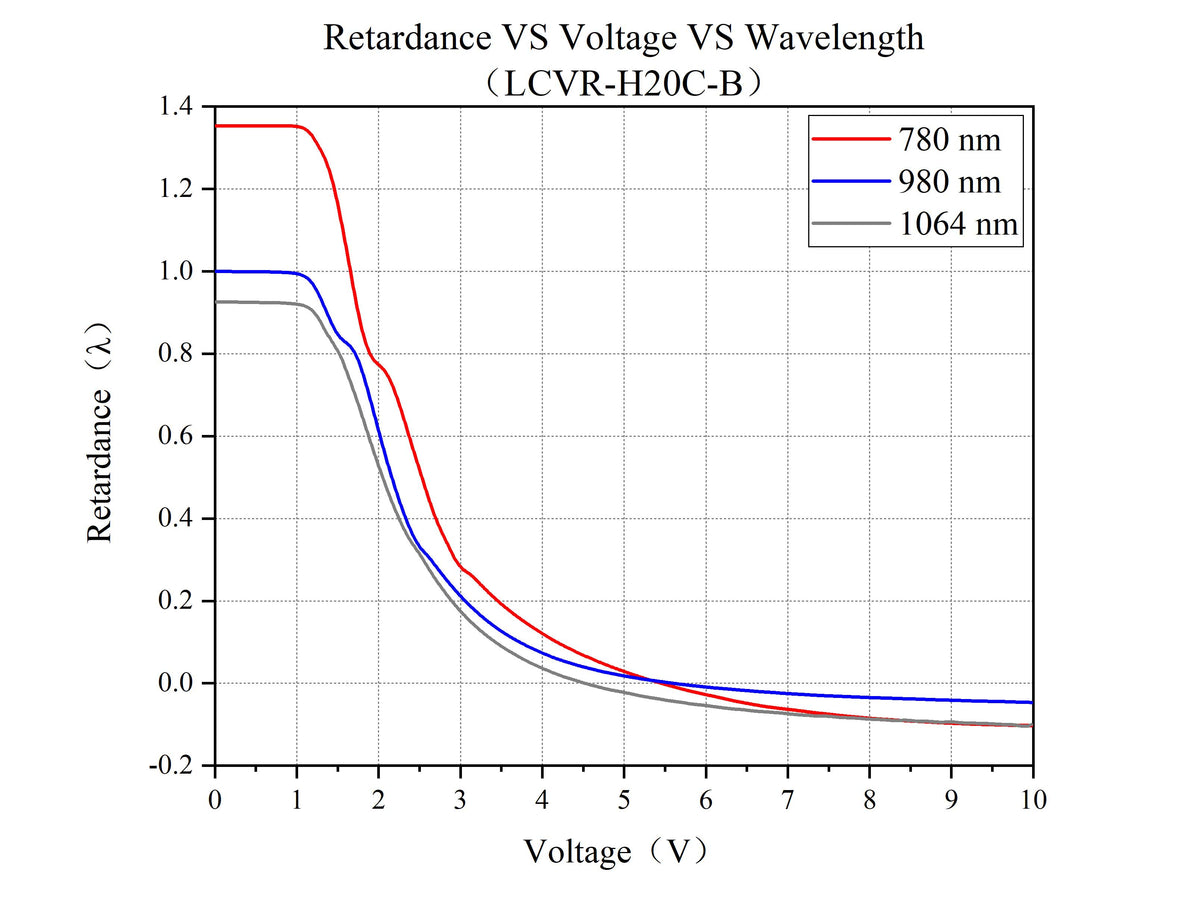

Curve - Retardance VS Voltage VS Wavelength (LCVR-H20C-B)
Curve - Retardance VS Voltage VS Wavelength (LCVR-H20C-C)
Curve - Retardance VS Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Curve - Retardance VS Voltage VS Temperature (@635 nm, LCVR-H10-A for Example)
Curve - Retardance at 3V Drive Voltage Over 12 Weeks (@635 nm, LCVR-H10-A for Example)

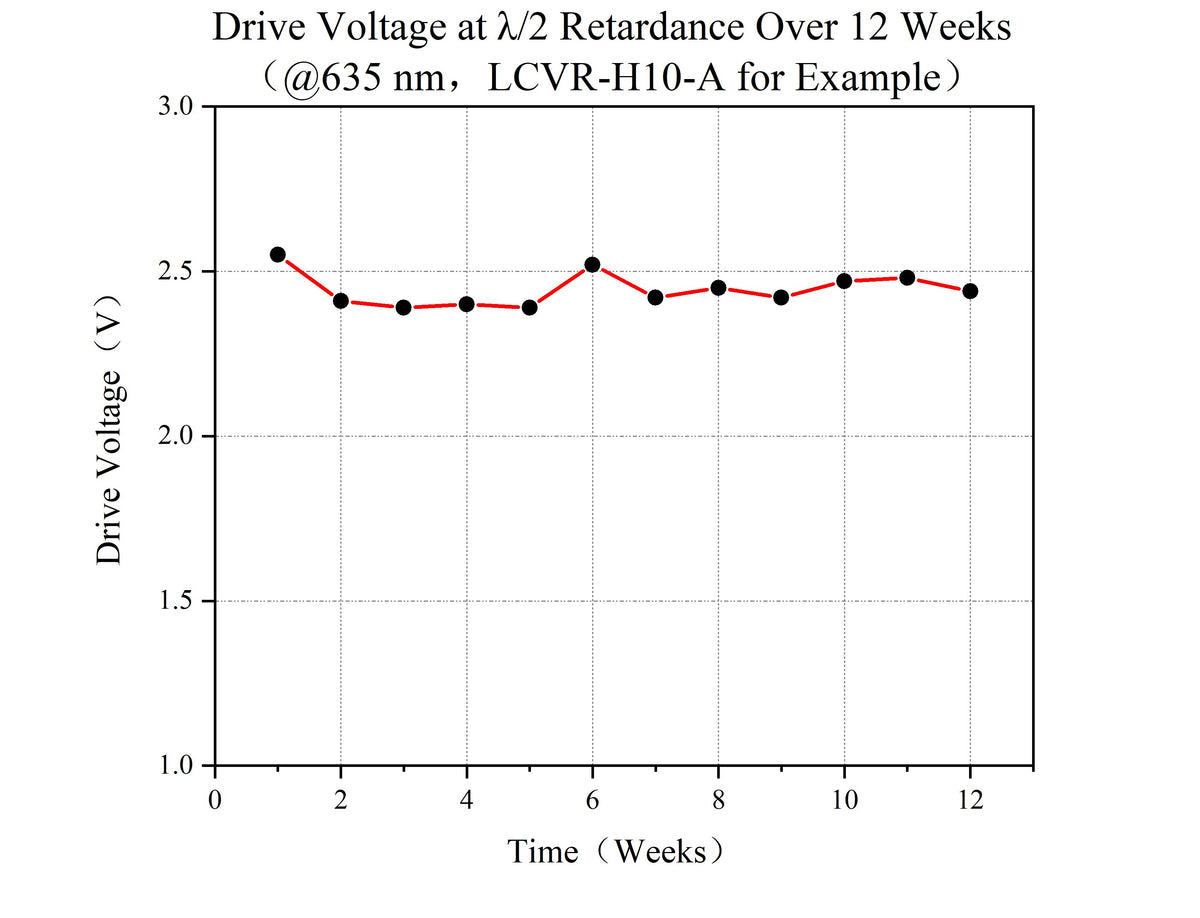

Curve - Drive Voltage at λ/2 Retardance Over 12 Weeks (@635 nm, LCVR-H10-A for Example)
Product Family: Liquid Crystal Variable Retarders (12 variants)
