Non-Bridging Clamping Arm MT-PHC25S
MT-PHC25S$121.38
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Non-Bridging Clamping Arm MT-PHC25S from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

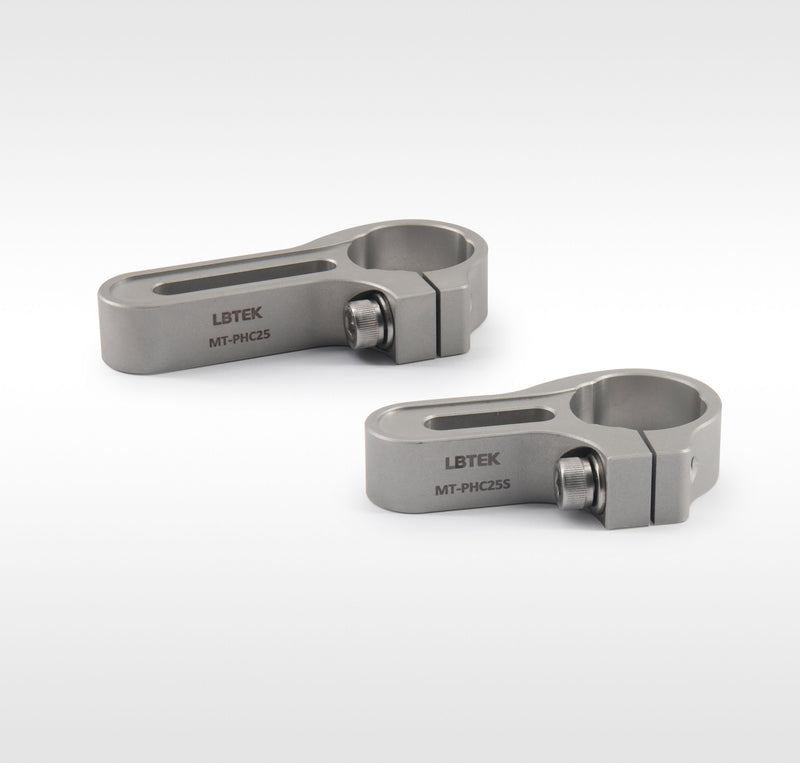

The non-bridging flexible clamping arm from LBTEK is designed for mounting Ø25 mm posts, featuring independent screw fixation for both the flexible clamp and mounting slot. The post is secured via an M6 socket head cap screw on the flexible side, with each clamp including one M6×25 mm socket head cap screw and one Ø6 mm flat spacer for waist-shaped slot mounting. Due to its flexible design, the product must not be tightened without a post inserted, as this may cause damage.
Key Features
- For Ø25 mm post;
- Optional waist-shaped countersunk slot length: 19 mm, 33 mm;
- Mounting hole depth 15.2 mm, maximum dimension from hole bottom to fixing position 6.4 mm;
- 3-point contact, flexible clamping mechanism;
Application
Non-bridging flexible clamping arm, for Ø25 mm post.
| Lead Time | In Stock |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Non-Bridging Clamping Arm (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Non-Bridging Clamping Arm MT-PHC25 |
MT-PHC25
| — | — | — | View |
| Non-Bridging Clamping Arm MT-PHC25S Current |
MT-PHC25S
| — | — | — |
