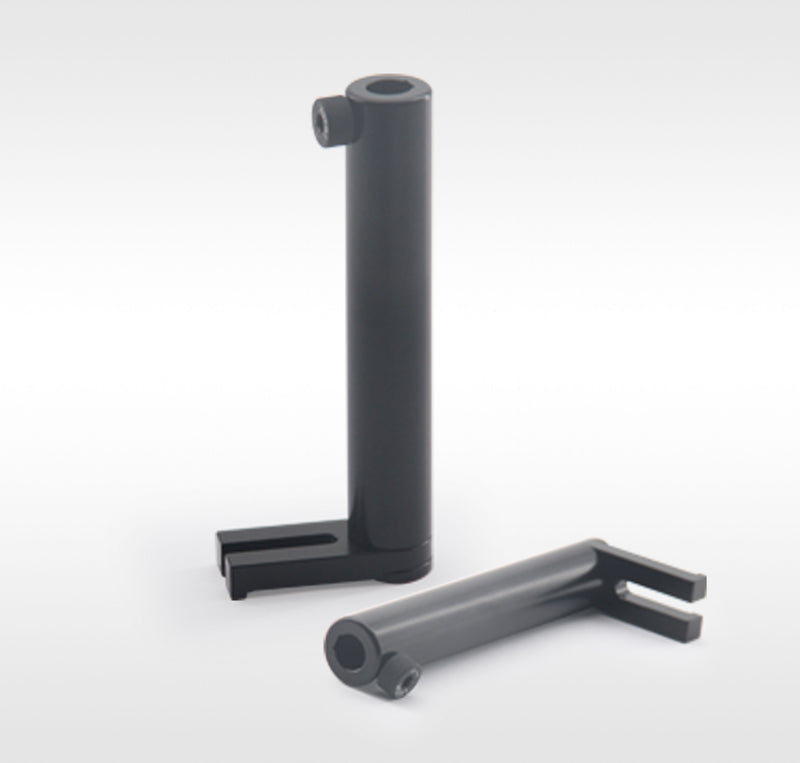

Ø12.7 mm Integrated Post Holder LPH-150

The Ø12.7 mm integrated post holder from LBTEK features inner wall grooves that form dual-line contact with the post. It features an M6 spring-loaded knurled thumb socket set screw, which can be further tightened with a 5 mm hex key (Note: Excessive torque may cause the locking screw to break. It is recommended to use an L-shaped hex key and gently tighten by holding the short end). The 360° rotation clamping fork at the bottom has an M6 mounting slot, enabling flexible component positioning on optical platforms. The post holder base is equipped with three magnets, providing magnetic holding force before final locking. For height adjustment, the base through-hole allows full post penetration to meet minimum beam height requirements.
