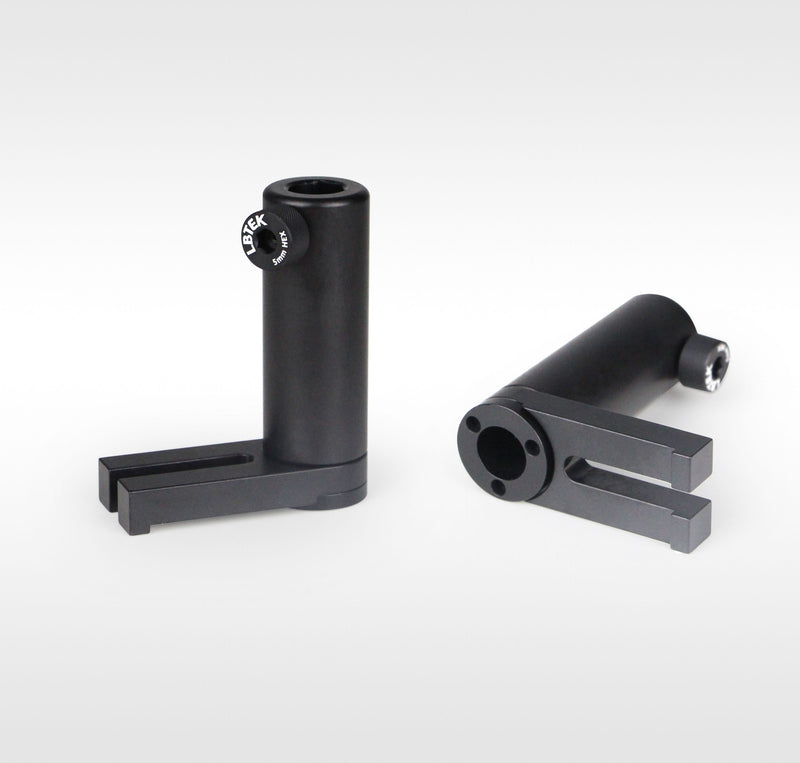

Ø12.7 mm Integrated Post Holder LPH-25A

The Ø12.7 mm integrated post holder from LBTEK features inner wall grooves that form dual-line contact with the post. It features an M6 spring-loaded knurled thumb socket set screw, which can be further tightened with a 5 mm hex key (Note: Excessive torque may cause the locking screw to break. It is recommended to use an L-shaped hex key and gently tighten by holding the short end). The 360° rotation clamping fork at the bottom has an M6 mounting slot, enabling flexible component positioning on optical platforms. For height adjustment, the base through-hole allows full post penetration to meet minimum beam height requirements.
