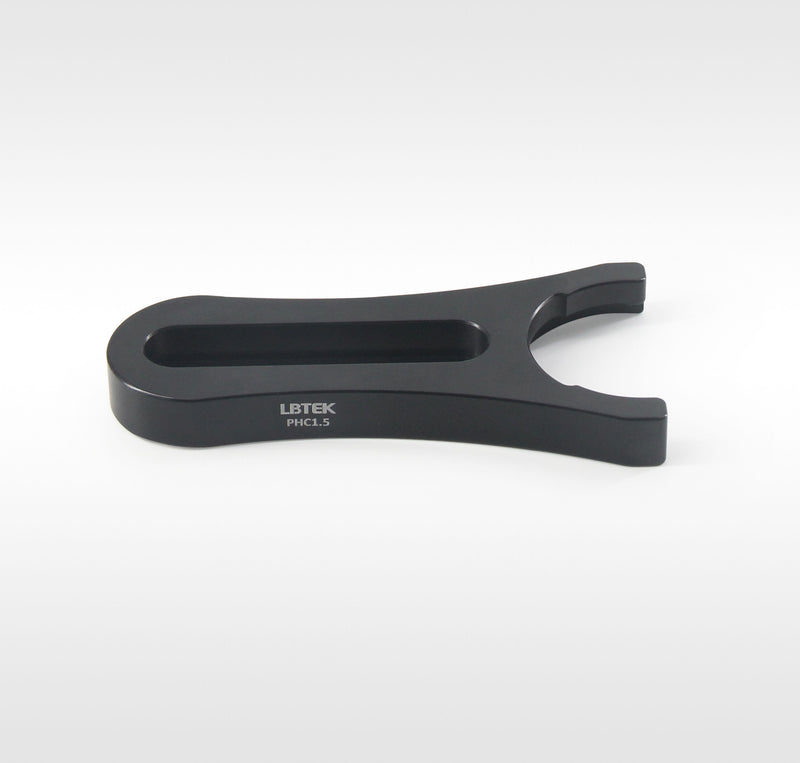

Ø38 mm Clamping Fork for Post Holders — Model PHC1.5
✔ In Stock — Ships Today
The clamping fork for post holders from LBTEK features a 53.5 mm countersunk slot and rotates 360° around the base for optimal mounting hole selection. Each clamping fork comes with an M6×16 mm socket head cap screw and a Ø6 mm flat washer.
Key Features
- 7075-T6 ultra-hard aviation aluminum alloy;
- Countersunk slot length: 53.5 mm;
- Compatible with 38 mm post holder series;
Application
PHC1.5 is used for fixing Ø38 mm post holders.
| Material | 7075-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Countersunk hole slot length | 53.5 mm |
| Applicable screw specifications | M6 Socket Head Cap Screw; Ø6 mm Flat Washer |
| Compatibility | M6 |
| Quantity | 1 |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Ø38 mm Clamping Fork for Post Holders (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Ø38 mm Clamping Fork for Post Holders PHC1.5 Current |
PHC1.5
| — | — | — | |
| Ø38 mm Clamping Fork for Post Holders PHC1.5-P5 |
PHC1.5-P5
| — | — | — | View |
