Optical Rotation Mounts — Model AMMR-05A
✔ In Stock — Ships Today

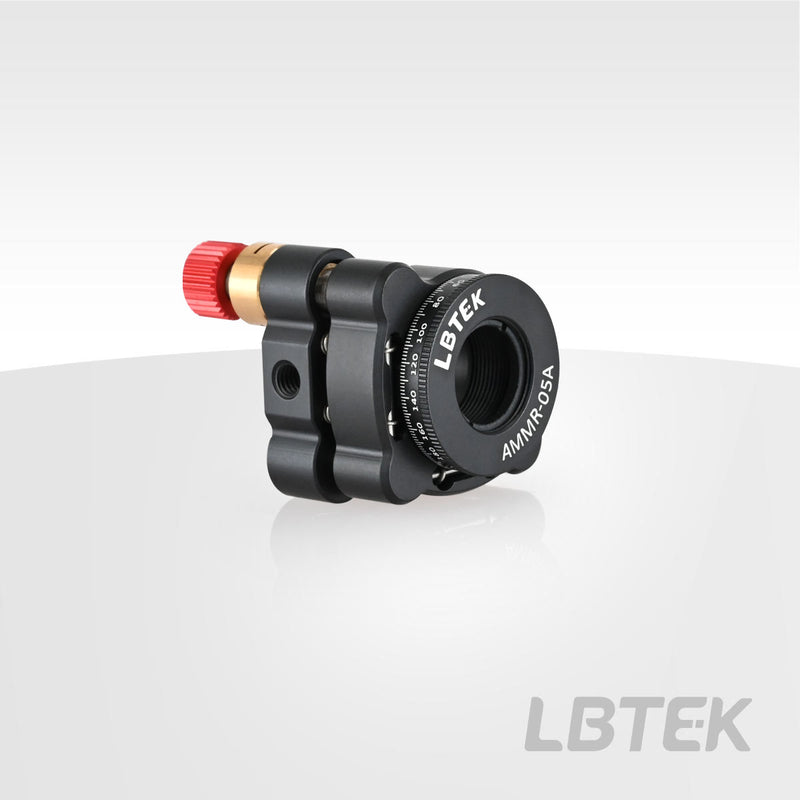

The LBTEK Optical Precision Rotation Mount features an SM05 tapped hole at its center, allowing the installation of optical components with a diameter of Ø12.7 mm and a maximum thickness of 7.2 mm using the included SM05R retaining ring. Additionally, an SM05 lens tube can be threaded into the mount to secure thicker optical components. The mount is equipped with two M5X025-25KL precision adjustment screw pairs, each featuring an M3 locking screw in the threaded bushing. These locking screws can be secured using a 1.5 mm hex wrench. The rotation of the mount can be fixed using an M4 locking screw, which can be tightened or loosened with a 2.0 mm hex wrench.
Key Features
- Applicable to optical components diameter: Ø12.7mm
- Maximum thickness of mounted optical components: 7.2 mm
- Two lockable adjusters
- Pitch/yaw adjustment range ±4°, 0.72° per rotation
- 360° continuous rotation , scale accuracy 2°
- Adjusters and rotation mount can be individually locked with locking screws
- Including 1 SM05R retaining ring
Application
Installation of Optical Rotation Mounts
No specifications available for this product.
Product Family: Optical Rotation Mounts (3 variants)
