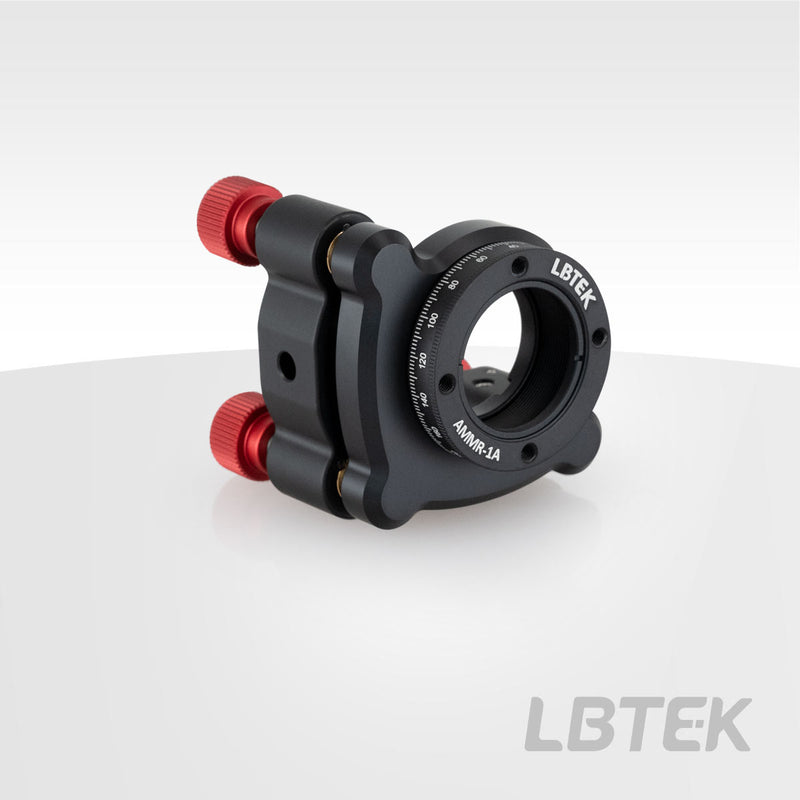

Optical Rotation Mounts AMMR-1A

The LBTEK Optical Rotation Mount is commonly used in requiring control over the angular position and rotation of optical components. It features a central SM2 tapped hole for mounting Ø25.4 mm diameter optical elements (up to 9.4 mm thickness) using the included SM2R retaining ring. Additionally, an SM1 lens tube can be threaded into the mount to secure thicker optical components. The mount is equipped with three M6 precision adjustment screws. On the sidewall where the screws are installed, there is an M4 locking screw that can be tightened or loosened using a 2.0 mm hex wrench to secure the adjustment screws. The 360° rotation of the mount can also be independently locked using an M4 locking screw, which can be adjusted with a 2.0 mm hex wrench. Purchasing the LBTEK Optical Rotation Mount includes one 2.0 mm hex wrench.
