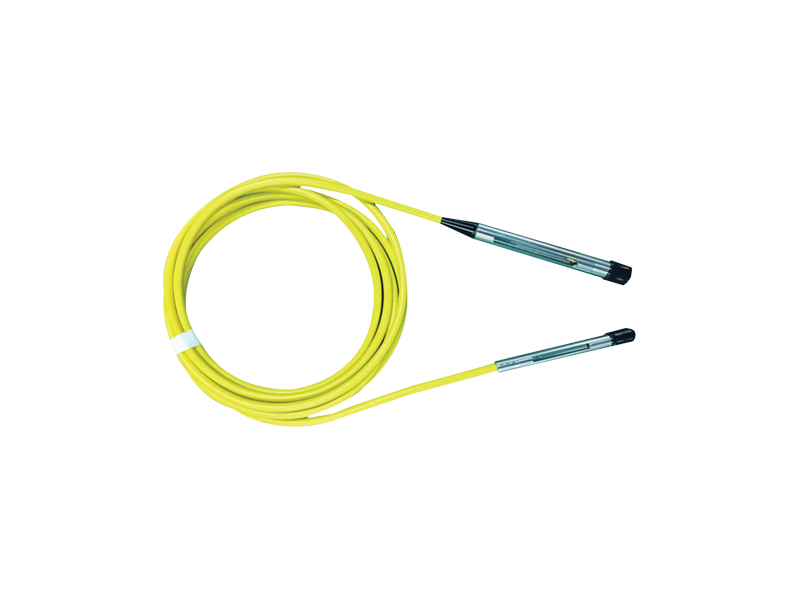

Photonic crystal fiber Precilasers' photonic crystal fiber is based on NKT's photonic crystal fiber with end caps/collimators installed at both ends to achieve high damage threshold and ease of use
Features
- Low loss Polarization Maintaining
- Single Mode At All
- Wavelengths Radiation Hardened Pure
- Silica Fiber Wavelength
Applications
- Mode Filtering Short Pulse
- Output Multi
- Wavelength Transmission Single Mode
- Polarization Maintaining Fiber Pigtail
- Single
- Mode Polarization
- Maintaining Short Wavelength Transmission
| Models | Specification |
|---|---|
| Wavelength Range | 1064nm±20nm / 813nm±20nm / 532nm±20nm / 420nm±20nm |
| Maximum Transmission Loss | <0.6dB |
| Polarization Extinction Ratio | >18dB |
| Minimum Return Loss | >50dB |
| Beam Waist Diameter(1) | 1.1±0.25mm |
| Beam Divergence (Far Field) | <1.2mrad |
| Ellipticity | >92% |
| Fiber Type | NKT Photonics LMA-PM-10 fiber |
| Fiber length | 1m / 3m / custom made |
| Maximum Average Optical Power | >30W |
| Maximum Peak Power (ns pulse) | >10 kW |
