Princeton Instruments

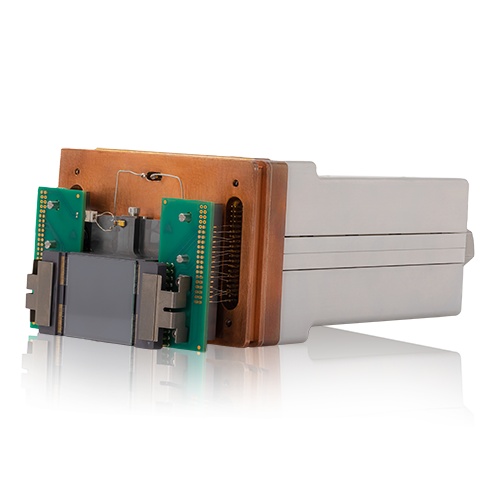

PI-MTE3 Thermoelectric X-ray CCD Camera
PI-MTE3-2048Contact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The PI-MTE3 is a 3-stage thermoelectrically cooled CCD camera for X-ray imaging. Cooling to -85°C without cryogens, combined with large-format sensors up to 2048×2048, makes it ideal for X-ray diffraction, scattering, and crystallography. Direct detection provides excellent energy resolution while the deep cooling minimizes thermal noise for long exposures.
Key Features
- 3-stage TE cooling to -85°C
- No cryogens required
- Large-format sensors up to 2048×2048
- Direct X-ray detection
- Low read noise for X-ray energy resolution
- USB interface
- Compact design for beamline integration
Applications
- X-ray diffraction
- Small-angle X-ray scattering (SAXS)
- X-ray crystallography
- X-ray imaging
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 0.01 nm |
| Wavelength Range Max | 10.0 nm |
| Sensor Type | CCD (3-Stage TE) |
| Pixel Size | 13.5 µm |
| Resolution | 2048x2048 px |
| Frame Rate | 1.0 fps |
| Cooling Method | Thermoelectric (3-Stage) |
| Cooling Temperature | -85.0 °C |
| Spectral Range | 1-120keV nm |
| Quantum Efficiency | 90.0 % |
| Dark Current | 0.0001 e⁻/px/s |
| Weight | 5.5 kg |
| Wavelength Range | 0.01 – 10.0 nm |
| Dark Current | 0.0001 e/px/h |
| Quantum Efficiency | 90.0% |
| Weight | 5.5 kg |
| Sensor Type | CCD (3-Stage TE) |
| Pixel Size | 13.5 μm |
| Resolution | 2048x2048 |
| Frame Rate | 1.0 fps |
| Cooling Method | Thermoelectric (3-Stage) |
| Cooling Temperature | -85.0 °C |
| Spectral Range | 1-120keV |
