Princeton Instruments

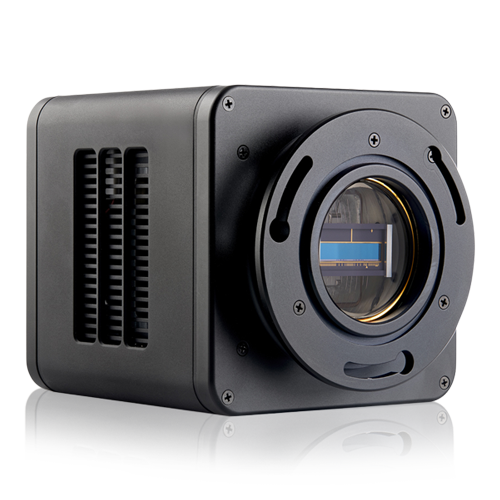

LANSIS Large Area Soft X-ray Imager
PI-LANSIS-2048Contact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The LANSIS (Large Area Near-field Soft-x-ray Imager System) is a specialized large-format CCD camera for soft X-ray and EUV imaging. Featuring a vacuum-compatible, back-thinned sensor with up to 4096×4096 pixels, it provides the largest imaging area in its class for synchrotron and FEL beamline applications. Available in 2048F, 2048B, and 4096 formats.
Key Features
- Large-format sensors up to 4096×4096
- Vacuum-compatible back-thinned CCD
- Direct soft X-ray detection
- High spatial resolution
- Designed for beamline applications
- Multiple readout configurations
Applications
- Synchrotron beamlines
- Free-electron laser (FEL) experiments
- EUV mask inspection
- Soft X-ray microscopy
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 0.06 nm |
| Wavelength Range Max | 124.0 nm |
| Sensor Type | Back-Thinned CCD (Vacuum) |
| Pixel Size | 15.0 µm |
| Resolution | 2048x2048 px |
| Frame Rate | 0.5 fps |
| Cooling Method | Thermoelectric (Vacuum) |
| Cooling Temperature | -60.0 °C |
| Spectral Range | 10eV-20keV nm |
| Quantum Efficiency | 80.0 % |
| Weight | 10.0 kg |
| Wavelength Range | 0.06 – 124.0 nm |
| Quantum Efficiency | 80.0% |
| Weight | 10.0 kg |
| Sensor Type | Back-Thinned CCD (Vacuum) |
| Pixel Size | 15.0 μm |
| Resolution | 2048x2048 |
| Frame Rate | 0.5 fps |
| Cooling Method | Thermoelectric (Vacuum) |
| Cooling Temperature | -60.0 °C |
| Spectral Range | 10eV-20keV |
No documents available for this product.
No CAD drawings available for this product.
Product Family: X-ray Cameras (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| LANSIS Large Area Soft X-ray Imager Current |
PI-LANSIS-2048
| — | — | — | |
| PI-MTE3 Thermoelectric X-ray CCD Camera |
PI-MTE3-2048
| — | — | — | Contact |
| SOPHIA-XO Soft X-ray CCD Camera |
PI-SOPHIA-XO-2048
| — | — | — | Contact |
| PIXIS-XO Soft X-ray CCD Camera |
PI-PIXIS-XO-2048
| — | — | — | Contact |
