Princeton Instruments

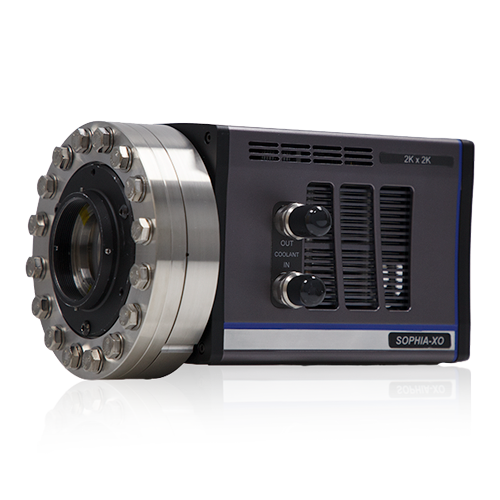

SOPHIA-XO Soft X-ray CCD Camera
PI-SOPHIA-XO-2048Contact for pricing
In Stock
Contact Sales
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The SOPHIA-XO is a high-performance CCD camera optimized for direct soft X-ray and EUV detection. Featuring a back-illuminated, back-thinned CCD sensor in a permanent vacuum enclosure, it achieves quantum efficiency >80% in the soft X-ray range (10 eV - 20 keV). The sensor operates at -70°C via thermoelectric cooling with no cryogens required. Available in multiple sensor formats up to 2048×2048.
Key Features
- Direct soft X-ray and EUV detection
- Permanent vacuum enclosure
- Back-illuminated, back-thinned CCD
- QE >80% in soft X-ray range
- Thermoelectric cooling to -70°C
- No cryogens required
- Single-photon energy resolution
Applications
- X-ray spectroscopy
- Synchrotron beamline imaging
- EUV lithography characterization
- Plasma diagnostics
- X-ray crystallography
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range Min | 0.06 nm |
| Wavelength Range Max | 124.0 nm |
| Sensor Type | Back-Thinned CCD (Vacuum) |
| Pixel Size | 15.0 µm |
| Resolution | 2048x2048 px |
| Frame Rate | 1.0 fps |
| Cooling Method | Thermoelectric (Vacuum) |
| Cooling Temperature | -70.0 °C |
| Spectral Range | 10eV-20keV (0.06-124nm) nm |
| Quantum Efficiency | 80.0 % |
| Dark Current | 0.0005 e⁻/px/s |
| Weight | 6.0 kg |
| Wavelength Range | 0.06 – 124.0 nm |
| Dark Current | 0.0005 e/px/h |
| Quantum Efficiency | 80.0% |
| Weight | 6.0 kg |
| Sensor Type | Back-Thinned CCD (Vacuum) |
| Pixel Size | 15.0 μm |
| Resolution | 2048x2048 |
| Frame Rate | 1.0 fps |
| Cooling Method | Thermoelectric (Vacuum) |
| Cooling Temperature | -70.0 °C |
| Spectral Range | 10eV-20keV (0.06-124nm) |
No documents available for this product.
No CAD drawings available for this product.
Product Family: X-ray Cameras (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| LANSIS Large Area Soft X-ray Imager |
PI-LANSIS-2048
| — | — | — | Contact |
| PI-MTE3 Thermoelectric X-ray CCD Camera |
PI-MTE3-2048
| — | — | — | Contact |
| SOPHIA-XO Soft X-ray CCD Camera Current |
PI-SOPHIA-XO-2048
| — | — | — | |
| PIXIS-XO Soft X-ray CCD Camera |
PI-PIXIS-XO-2048
| — | — | — | Contact |
