Piezoelectric Linear Translation Stages LBCF30

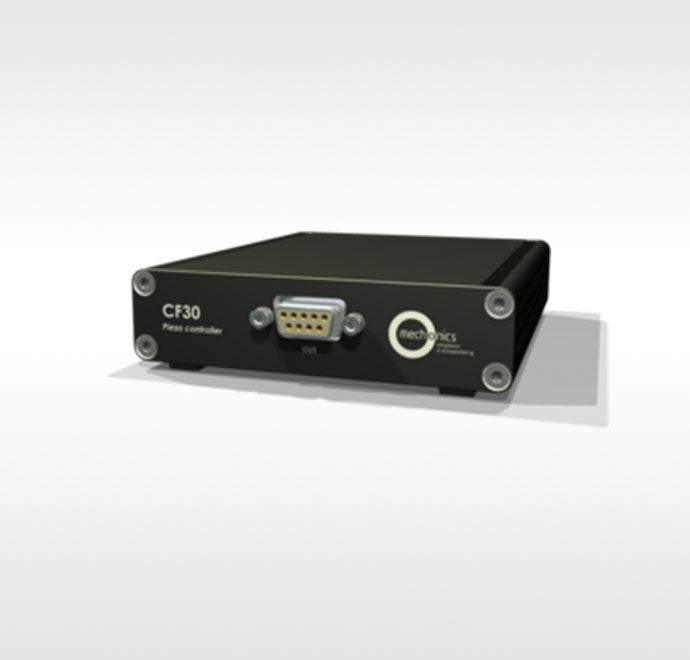

The piezoelectric linear translation stage controller provided by LBTEK features an internal piezoelectric inertial drive, which not only addresses the control method for a single single-axis stage but also enables connection to multiple single-axis stages through the multi-interface LBCK30 connecting cable, achieving control of up to three axes. The controller connects to a PC via a USB interface for host software control. When controlling a single-axis piezoelectric linear stage, the LBCF30 piezoelectric controller can operate via USB/5 V power supply, with a maximum speed of 1.5 mm/s. For multi-axis control of piezoelectric linear stages, the LBCF30 piezoelectric controller requires an additional portable power supply and utilizes the LBCK30 connecting cable to achieve synchronized motion control of multiple single-axis piezoelectric linear stages. The LBCF30 operates as an open-loop controller.
