Piezoelectric Linear Translation Stages LBCK30
LBCK30$672.49
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Piezoelectric Linear Translation Stages LBCK30 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

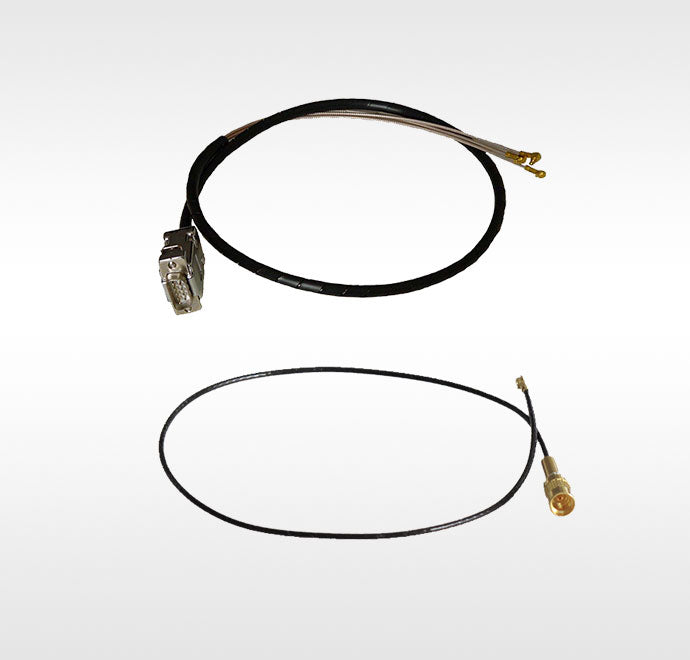

LBTEK provides connection cables that are compatible with various models of piezoelectric linear stages. The LBCK15 cable features a 2-pin HRS plug on one end and a 2-pin MMCX female connector on the other, designed for the LBMS15 series of piezoelectric linear stages. The LBCK30 cable has a DB 9 male connector on one end and three 2-pin MMCX female connectors on the other, compatible with the LBMS30 series of piezoelectric linear stages. The piezoelectric stages can be connected to piezoelectric controllers via the appropriate cables. The LBMS15 series piezoelectric stages require connection to the controller through the LBCK15 cable, which must be adapted to the LBCK30 cable. The LBMS30 series piezoelectric stages can be directly connected to the controller using the LBCK30 cable.
Key Features
- Simple connector mating/unmating
- Compatible with piezoelectric linear stages
Application
Piezoelectric stage connection cable port
| Lead Time | In Stock |
No CAD drawings available for this product.
