Piezoelectric Linear Translation Stages LBMS15-10
LBMS15-10$4,503.60
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Piezoelectric Linear Translation Stages LBMS15-10 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

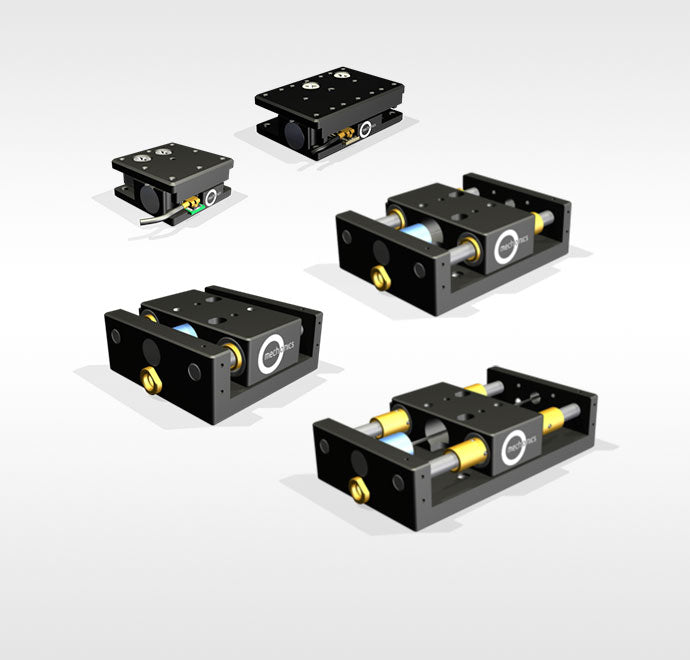

LBTEK's piezoelectric linear translation stages provide fast and stable piezoelectric-controlled linear motion. These stages utilize piezoelectric inertial drives to support the load platform in achieving single-axis linear reciprocating motion on precision ball-bearing guides. When driven by the LBCF30 controller, speeds of up to 1.5 mm/s can be achieved. The base of the stage features a set of countersunk holes, allowing it to be mounted onto optical tables or custom-built stage modules using screws. The threaded holes on the stage surface support the mounting of various optical components. LBTEK piezoelectric linear translation stages offer multiple stage sizes and travel ranges to choose from.
Key Features
- Various table size available
- Travel range options from 3.5 mm to 30 mm
- Used with piezoelectric inertia controller
Application
Two LBMS15-3 piezoelectric stages stacked for use
| Lead Time | In Stock |
No CAD drawings available for this product.
