Quartz True Zero-Order Quarter-Wave Plate — QWP20-905BT
QWP20-905BT$788.16
In Stock
Key Specifications
Wavelength
905.0nm
Transmittance
0.25%
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

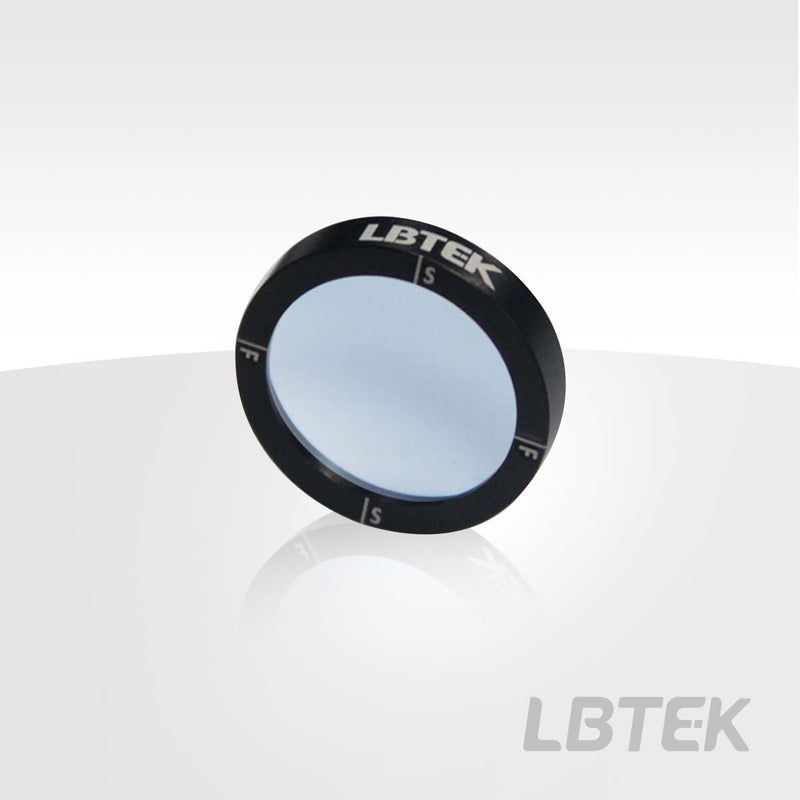

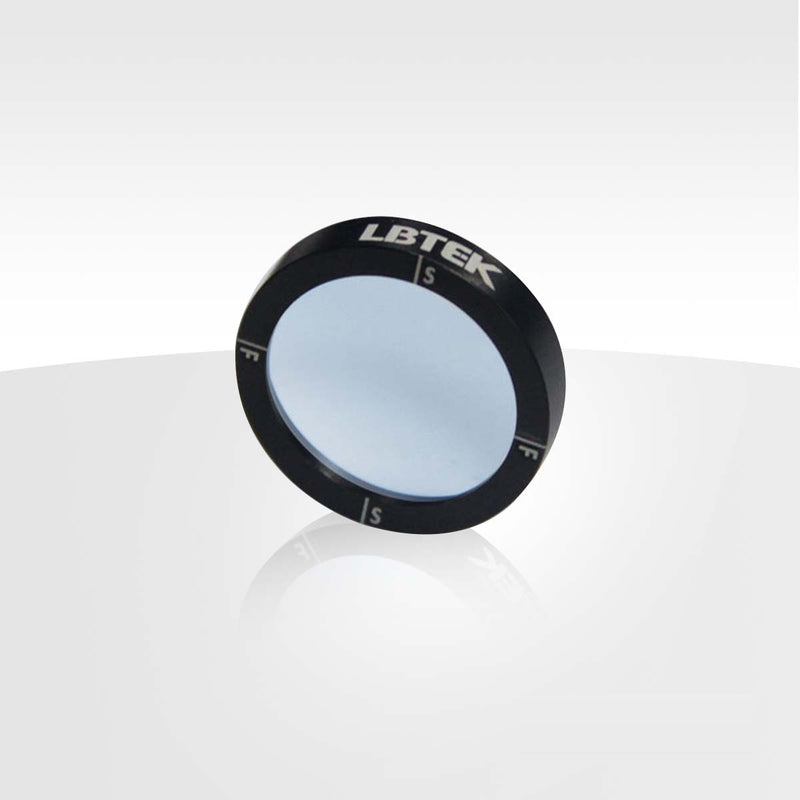

Quartz True Zero-Order Quarter-Wave Plate — Model QWP20-905BT
λ/4 quartz waveplate at 905 nm, mounted in standard SM housing.
Overview
These Quartz True Zero-Order Quarter-Wave Plates deliver a λ/4 retardance at the design wavelength. The true zero-order single-plate quartz construction provides superior thermal and spectral stability with minimal beam deviation. Each plate is anti-reflection coated on both surfaces (R < 0.25% @ design wavelength) and mounted in a standard SM05 or SM1 lens tube for seamless integration into polarization control setups.
Key Features
- True Zero-Order design at the specified design wavelength
- Retardance: λ/4
- V-type anti-reflection coating on both surfaces
- Surface finish 10/5 to 20/10
- Operating temperature tolerant, polarization-stable
- Mounted in standard SM05 / SM1 housing for seamless integration
Applications
- Polarization state conversion (linear ↔ circular / elliptical)
- Laser isolator, interferometry, and ellipsometry systems
- Quantum optics and photonic research
- Integration with polarizing beamsplitters and prisms
| Optical component material | Crystalline Quartz |
| Mechanical housing diameter | Ø25.4 mm |
| Mechanical housing diameter tolerance | +0.0/-0.1 mm |
| Clear Aperture | Ø20.0 mm |
| Mechanical housing thickness | 4.79 mm |
| Diameter | 25.4 mm |
| Design Wavelength | 905 nm |
| Operating Wavelength | 905 nm |
| Coating | V-Type AR Coating |
| Anti-reflective coating | R<0.25%@Design Wavelength (6° AOI, Single Surface) |
| Retardance | λ/4 |
| Retardance Accuracy | ±λ/350 |
| Surface finish (scratches/pits) | 10/5 |
| Transmitted Wavefront Error (TWE) (@633 nm) | λ/10 |
| Surface Parallelism | <3 arcsec |
