Quartz Zero-Order Half-Wave Plate — Model HWP51-355B

Quartz air-spaced zero-order waveplate, diameter 50.8 mm, clear aperture 45.0 mm, design wavelength 355 nm, retardation λ/2

Overview

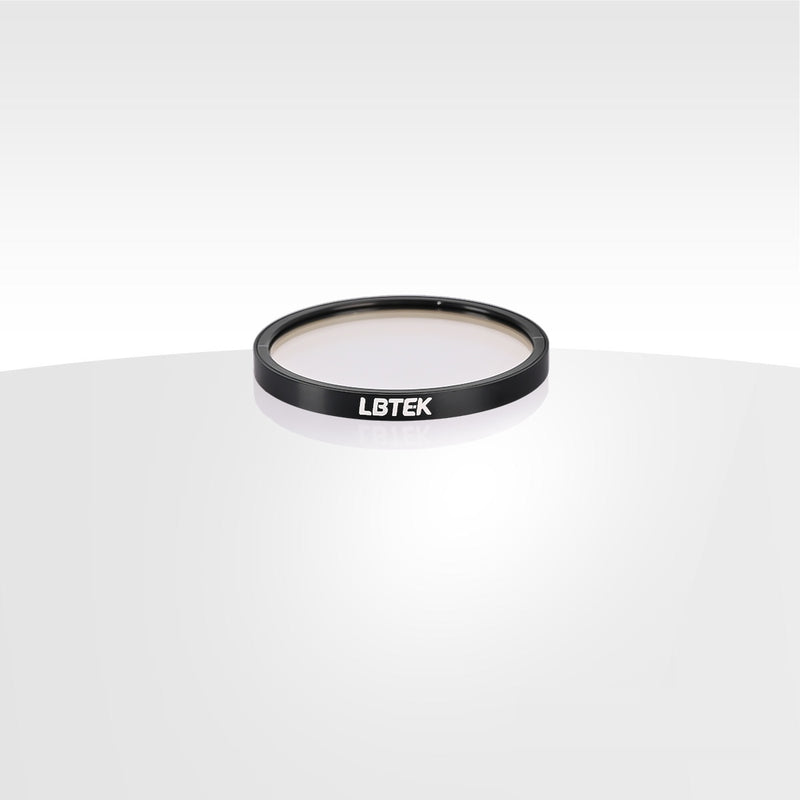

Quartz zero-order half-wave plate, featuring λ/2 retardance and a clear aperture of Ø45.0 mm. The quartz zero-order half-wave plate is installed in a two-inch black anodized aluminum ring, fixed internally with glue and not removable. The zero-order half-wave plate with a two-inch mount has a diameter of Ø50.8 mm and a thickness of 4.8 mm, and can be mounted in a two-inch rotation mount. Fine lines indicating the fast axis direction of the wave plate are engraved on the front and back surfaces of the housing, and the model, retardance, and design wavelength are engraved around the housing for easy identification.

Optical component material	Quartz Crystal
Diameter	50.8 mm
Diameter tolerance	+0.0/-0.1 mm
Clear Aperture	Ø45.0 mm
Thickness	4.8 mm
Design Wavelength	355 nm
Coating	V-type anti-reflective coating (@355 nm)
Anti-reflective coating	Ravg<0.25% (6° incidence angle, single side)
Retardance	λ/2
Retardance Accuracy	±λ/200
Surface finish (scratches/pits)	40/20
Transmitted Wavefront Error (TWE) (@633 nm)	λ/6
Surface Parallelism	<10 arcsec

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Quartz Zero-Order Half-Wave Plates (50 variants)

Product ▴▾	SKU	Diameter ▴▾	Thickness ▴▾	Design Wavelength ▴▾
Quartz Zero-Order Half-Wave Plate — HWP51-780B	`HWP51-780B`	50.8 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-532B	`HWP51-532B`	50.8 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-355B Current	`HWP51-355B`	50.8 mm	4.8 mm	355 nm
Quartz Zero-Order Half-Wave Plate — HWP51-266B	`HWP51-266B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-1064B	`HWP51-1064B`	50.8 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1550B	`HWP20-1550B`	25.4 mm	4.8 mm	1550 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-266B	`HWP20-266B`	25.4 mm	4.8 mm	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-308B	`HWP20-308B`	25.4 mm	4.8 mm	308 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-355B	`HWP20-355B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-445B	`HWP20-445B`	25.4 mm	4.8 mm	445 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-488B	`HWP20-488B`	25.4 mm	4.8 mm	488 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-520B	`HWP20-520B`	25.4 mm	4.8 mm	520 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-670B	`HWP20-670B`	25.4 mm	4.8 mm	670 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-800B	`HWP20-800B`	25.4 mm	4.8 mm	800 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-905B	`HWP20-905B`	25.4 mm	4.8 mm	905 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1310B	`HWP20-1310B`	25.4 mm	4.8 mm	1310 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1064B	`HWP20-1064B`	25.4 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1030B	`HWP20-1030B`	25.4 mm	4.8 mm	1030 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-980B	`HWP20-980B`	25.4 mm	4.8 mm	980 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-850B	`HWP20-850B`	25.4 mm	4.8 mm	850 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-808B	`HWP20-808B`	25.4 mm	4.8 mm	808 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-780B	`HWP20-780B`	25.4 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-633B	`HWP20-633B`	25.4 mm	4.8 mm	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-532B	`HWP20-532B`	25.4 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-420B	`HWP20-420B`	25.4 mm	4.8 mm	420 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-442B	`HWP20-442B`	25.4 mm	4.8 mm	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-405B	`HWP20-405B`	25.4 mm	4.8 mm	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1550B	`HWP10-1550B`	25.4 mm	4.8 mm	1550 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1064B	`HWP10-1064B`	25.4 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1030B	`HWP10-1030B`	25.4 mm	4.8 mm	1030 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-980B	`HWP10-980B`	25.4 mm	4.8 mm	980 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-850B	`HWP10-850B`	25.4 mm	4.8 mm	850 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-808B	`HWP10-808B`	25.4 mm	4.8 mm	808 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-780B	`HWP10-780B`	25.4 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-633B	`HWP10-633B`	25.4 mm	4.8 mm	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-532B	`HWP10-532B`	25.4 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-442B	`HWP10-442B`	25.4 mm	4.8 mm	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-480B	`HWP10-480B`	25.4 mm	4.8 mm	480 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-355B	`HWP10-355B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-405B	`HWP10-405B`	25.4 mm	4.8 mm	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-266B	`HWP10-266B`	25.4 mm	4.8 mm	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-460B	`HWP10-460B`	25.4 mm	4.8 mm	460 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-266B	`HWPSM05-266B`	12.7 mm	—	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-355B	`HWPSM05-355B`	12.7 mm	—	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-405B	`HWPSM05-405B`	12.7 mm	—	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-442B	`HWPSM05-442B`	12.7 mm	—	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-480B	`HWPSM05-480B`	12.7 mm	—	480 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-532B	`HWPSM05-532B`	12.7 mm	—	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-633B	`HWPSM05-633B`	12.7 mm	—	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-780B	`HWPSM05-780B`	12.7 mm	—	780 nm	View
