What documentation is available for Quartz Zero-Order Half-Wave Plate — HWP51-1064B?

The following documents are available for download on the Quartz Zero-Order Half-Wave Plate — HWP51-1064B product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Quartz Zero-Order Half-Wave Plate — HWP51-1064B available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Quartz Zero-Order Half-Wave Plate — HWP51-1064B

Name: Quartz Zero-Order Half-Wave Plate — HWP51-1064B
Brand: WaveQuanta
SKU: HWP51-1064B
Price: 1317.26 SGD
Availability: InStock

HWP51-1064B

$1,317.26

In Stock

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

RoHS REACH

Quartz Zero-Order Half-Wave Plate — Model HWP51-1064B

Quartz air-spaced zero-order waveplate, diameter 50.8 mm, clear aperture 45.0 mm, design wavelength 1064 nm, retardation λ/2

Overview

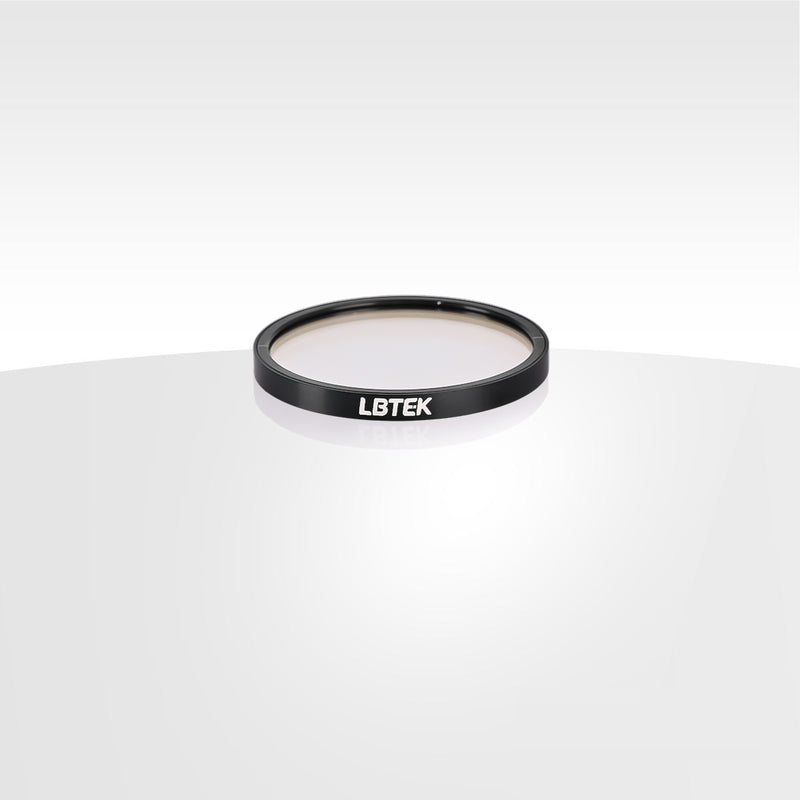

Quartz zero-order half-wave plate, featuring λ/2 retardance and a clear aperture of Ø45.0 mm. The quartz zero-order half-wave plate is installed in a two-inch black anodized aluminum ring, fixed internally with glue and not removable. The zero-order half-wave plate with a two-inch mount has a diameter of Ø50.8 mm and a thickness of 4.8 mm, and can be mounted in a two-inch rotation mount. Fine lines indicating the fast axis direction of the wave plate are engraved on the front and back surfaces of the housing, and the model, retardance, and design wavelength are engraved around the housing for easy identification.

Optical component material	Quartz Crystal
Diameter	50.8 mm
Diameter tolerance	+0.0/-0.1 mm
Clear Aperture	Ø45.0 mm
Thickness	4.8 mm
Design Wavelength	1064 nm
Coating	V-type anti-reflection coating (@1064 nm)
Anti-reflective coating	Ravg<0.25% (6° incidence angle, single side)
Retardance	λ/2
Retardance Accuracy	±λ/200
Surface finish (scratches/pits)	40/20
Transmitted Wavefront Error (TWE) (@633 nm)	λ/6
Surface Parallelism	<10 arcsec

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Quartz Zero-Order Half-Wave Plates (50 variants)

Product ▴▾	SKU	Diameter ▴▾	Thickness ▴▾	Design Wavelength ▴▾
Quartz Zero-Order Half-Wave Plate — HWP51-780B	`HWP51-780B`	50.8 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-532B	`HWP51-532B`	50.8 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-355B	`HWP51-355B`	50.8 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-266B	`HWP51-266B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-1064B Current	`HWP51-1064B`	50.8 mm	4.8 mm	1064 nm
Quartz Zero-Order Half-Wave Plate — HWP20-1550B	`HWP20-1550B`	25.4 mm	4.8 mm	1550 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-266B	`HWP20-266B`	25.4 mm	4.8 mm	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-308B	`HWP20-308B`	25.4 mm	4.8 mm	308 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-355B	`HWP20-355B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-445B	`HWP20-445B`	25.4 mm	4.8 mm	445 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-488B	`HWP20-488B`	25.4 mm	4.8 mm	488 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-520B	`HWP20-520B`	25.4 mm	4.8 mm	520 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-670B	`HWP20-670B`	25.4 mm	4.8 mm	670 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-800B	`HWP20-800B`	25.4 mm	4.8 mm	800 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-905B	`HWP20-905B`	25.4 mm	4.8 mm	905 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1310B	`HWP20-1310B`	25.4 mm	4.8 mm	1310 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1064B	`HWP20-1064B`	25.4 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1030B	`HWP20-1030B`	25.4 mm	4.8 mm	1030 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-980B	`HWP20-980B`	25.4 mm	4.8 mm	980 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-850B	`HWP20-850B`	25.4 mm	4.8 mm	850 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-808B	`HWP20-808B`	25.4 mm	4.8 mm	808 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-780B	`HWP20-780B`	25.4 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-633B	`HWP20-633B`	25.4 mm	4.8 mm	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-532B	`HWP20-532B`	25.4 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-420B	`HWP20-420B`	25.4 mm	4.8 mm	420 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-442B	`HWP20-442B`	25.4 mm	4.8 mm	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-405B	`HWP20-405B`	25.4 mm	4.8 mm	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1550B	`HWP10-1550B`	25.4 mm	4.8 mm	1550 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1064B	`HWP10-1064B`	25.4 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1030B	`HWP10-1030B`	25.4 mm	4.8 mm	1030 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-980B	`HWP10-980B`	25.4 mm	4.8 mm	980 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-850B	`HWP10-850B`	25.4 mm	4.8 mm	850 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-808B	`HWP10-808B`	25.4 mm	4.8 mm	808 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-780B	`HWP10-780B`	25.4 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-633B	`HWP10-633B`	25.4 mm	4.8 mm	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-532B	`HWP10-532B`	25.4 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-442B	`HWP10-442B`	25.4 mm	4.8 mm	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-480B	`HWP10-480B`	25.4 mm	4.8 mm	480 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-355B	`HWP10-355B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-405B	`HWP10-405B`	25.4 mm	4.8 mm	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-266B	`HWP10-266B`	25.4 mm	4.8 mm	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-460B	`HWP10-460B`	25.4 mm	4.8 mm	460 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-266B	`HWPSM05-266B`	12.7 mm	—	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-355B	`HWPSM05-355B`	12.7 mm	—	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-405B	`HWPSM05-405B`	12.7 mm	—	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-442B	`HWPSM05-442B`	12.7 mm	—	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-480B	`HWPSM05-480B`	12.7 mm	—	480 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-532B	`HWPSM05-532B`	12.7 mm	—	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-633B	`HWPSM05-633B`	12.7 mm	—	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-780B	`HWPSM05-780B`	12.7 mm	—	780 nm	View
