What documentation is available for Quartz Zero-Order Half-Wave Plate — HWP51-266B?

The following documents are available for download on the Quartz Zero-Order Half-Wave Plate — HWP51-266B product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Quartz Zero-Order Half-Wave Plate — HWP51-266B available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Quartz Zero-Order Half-Wave Plate — HWP51-266B

Name: Quartz Zero-Order Half-Wave Plate — HWP51-266B
Brand: WaveQuanta
SKU: HWP51-266B
Price: 1317.26 SGD
Availability: InStock

HWP51-266B

$1,317.26

In Stock

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

RoHS REACH

Quartz Zero-Order Half-Wave Plate — Model HWP51-266B

Quartz Air-Spaced Zero-Order Wave Plate, Diameter 25.4 mm, Clear Aperture Ø20.0 mm, Design Wavelength 355 nm, λ/2 Retardance

Overview

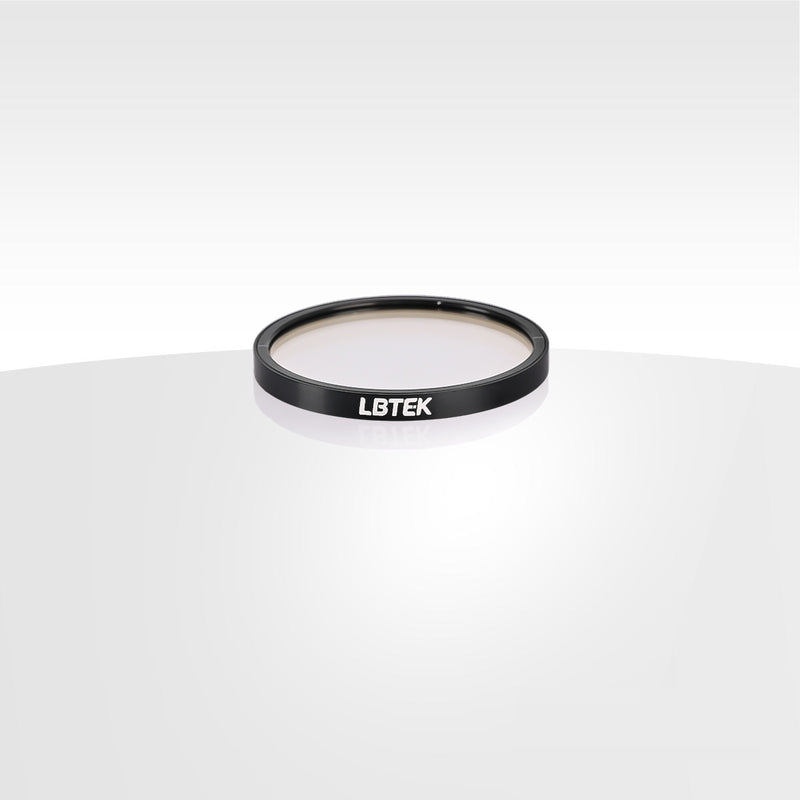

Zero-order quartz half-wave plate with 1-inch mount, having a retardance of λ/2 and a clear aperture of Ø20.0 mm. The zero-order quartz half-wave plate is mounted in a 1-inch black anodized aluminum ring, fixed with glue internally and not removable. The zero-order half-wave plate with 1-inch mount has a diameter of Ø25.4 mm and a thickness of 4.8 mm, and can be mounted in a 1-inch rotation mount. The front and rear surfaces of the housing are engraved with thin lines indicating the direction of the fast axis of the wave plate, and the circumference is engraved with the wave plate model, retardance, design wavelength and other markings for easy identification.

Optical component material	Crystalline Quartz
Diameter	25.4 mm
Diameter tolerance	+0.0/-0.1 mm
Clear Aperture	Ø20.0 mm
Thickness	4.8 mm
Design Wavelength	355 nm
Coating	V-Type AR Coating (@355 nm)
Anti-reflective coating	Ravg<0.25% (6° AOI, Single Surface)
Retardance	λ/2
Retardance Accuracy	±λ/300
Surface finish (scratches/pits)	20/10
Transmitted Wavefront Error (TWE) (@633 nm)	λ/8
Surface Parallelism	<10 arcsec

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Product Family: Quartz Zero-Order Half-Wave Plates (50 variants)

Product ▴▾	SKU	Diameter ▴▾	Thickness ▴▾	Design Wavelength ▴▾
Quartz Zero-Order Half-Wave Plate — HWP51-780B	`HWP51-780B`	50.8 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-532B	`HWP51-532B`	50.8 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-355B	`HWP51-355B`	50.8 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP51-266B Current	`HWP51-266B`	25.4 mm	4.8 mm	355 nm
Quartz Zero-Order Half-Wave Plate — HWP51-1064B	`HWP51-1064B`	50.8 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1550B	`HWP20-1550B`	25.4 mm	4.8 mm	1550 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-266B	`HWP20-266B`	25.4 mm	4.8 mm	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-308B	`HWP20-308B`	25.4 mm	4.8 mm	308 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-355B	`HWP20-355B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-445B	`HWP20-445B`	25.4 mm	4.8 mm	445 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-488B	`HWP20-488B`	25.4 mm	4.8 mm	488 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-520B	`HWP20-520B`	25.4 mm	4.8 mm	520 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-670B	`HWP20-670B`	25.4 mm	4.8 mm	670 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-800B	`HWP20-800B`	25.4 mm	4.8 mm	800 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-905B	`HWP20-905B`	25.4 mm	4.8 mm	905 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1310B	`HWP20-1310B`	25.4 mm	4.8 mm	1310 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1064B	`HWP20-1064B`	25.4 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-1030B	`HWP20-1030B`	25.4 mm	4.8 mm	1030 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-980B	`HWP20-980B`	25.4 mm	4.8 mm	980 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-850B	`HWP20-850B`	25.4 mm	4.8 mm	850 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-808B	`HWP20-808B`	25.4 mm	4.8 mm	808 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-780B	`HWP20-780B`	25.4 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-633B	`HWP20-633B`	25.4 mm	4.8 mm	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-532B	`HWP20-532B`	25.4 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-420B	`HWP20-420B`	25.4 mm	4.8 mm	420 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-442B	`HWP20-442B`	25.4 mm	4.8 mm	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWP20-405B	`HWP20-405B`	25.4 mm	4.8 mm	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1550B	`HWP10-1550B`	25.4 mm	4.8 mm	1550 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1064B	`HWP10-1064B`	25.4 mm	4.8 mm	1064 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-1030B	`HWP10-1030B`	25.4 mm	4.8 mm	1030 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-980B	`HWP10-980B`	25.4 mm	4.8 mm	980 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-850B	`HWP10-850B`	25.4 mm	4.8 mm	850 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-808B	`HWP10-808B`	25.4 mm	4.8 mm	808 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-780B	`HWP10-780B`	25.4 mm	4.8 mm	780 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-633B	`HWP10-633B`	25.4 mm	4.8 mm	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-532B	`HWP10-532B`	25.4 mm	4.8 mm	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-442B	`HWP10-442B`	25.4 mm	4.8 mm	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-480B	`HWP10-480B`	25.4 mm	4.8 mm	480 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-355B	`HWP10-355B`	25.4 mm	4.8 mm	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-405B	`HWP10-405B`	25.4 mm	4.8 mm	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-266B	`HWP10-266B`	25.4 mm	4.8 mm	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWP10-460B	`HWP10-460B`	25.4 mm	4.8 mm	460 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-266B	`HWPSM05-266B`	12.7 mm	—	266 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-355B	`HWPSM05-355B`	12.7 mm	—	355 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-405B	`HWPSM05-405B`	12.7 mm	—	405 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-442B	`HWPSM05-442B`	12.7 mm	—	442 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-480B	`HWPSM05-480B`	12.7 mm	—	480 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-532B	`HWPSM05-532B`	12.7 mm	—	532 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-633B	`HWPSM05-633B`	12.7 mm	—	633 nm	View
Quartz Zero-Order Half-Wave Plate — HWPSM05-780B	`HWPSM05-780B`	12.7 mm	—	780 nm	View
