Rectangular Optical Mounts AMM-05SR-SP
AMM-05SR-SP$100.22
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
Rectangular Optical Mounts — Model AMM-05SR-SP
✔ In Stock — Ships Today

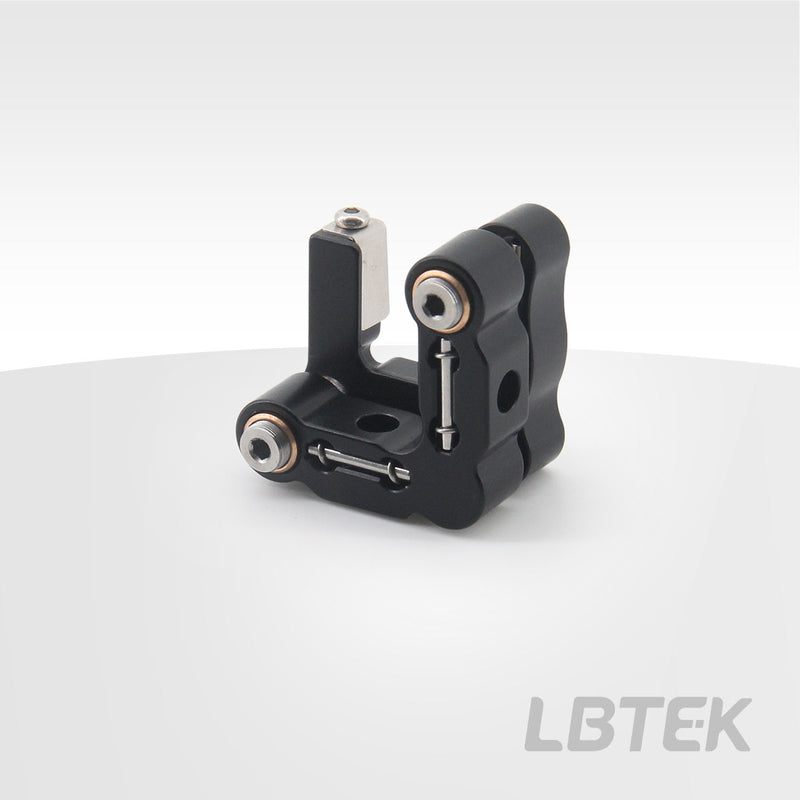

LBTEK Precision Rectangular Optical Mount, which uses adjustment screws to press the flexure clamp against the optical component. The mount base features a Ø4.2 through-hole for right-hand installation, designed to connect with optical posts. The minimum thickness of available optical components is 3.0 mm. Equipped with 2 precision adjustment thread pairs (M5X025-14). Purchase of LBTEK Precision Optical Mount 0.5-inch Series includes 1 free 2.0 mm hex key and 1 M4 thin-head hex socket screw.
Key Features
- Applicable optical component height: 12.7 mm
- Minimum thickness for mounting optical components: 3.0 mm
- Adjustable angle range ±4°, 0.72° per rotation
- Including 2 thin-head hex socket screws
Application
Installation of Rectangular Optical Mount AMM-05SR-SP
| Main material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical component size | 12.7 mm×12.7 mm |
| Minimum optical element thickness | 3.0 mm |
| Adjustable pitch/yaw angle range | ±4 ° |
| Attribute 1112 | 0.72° per revolution |
| Mounting Hole Specifications/Quantity | Ø4.2/2 pcs |
| Adjuster specifications/quantity | M5/2 pcs |
| Optical component mounting method | M4 rubber-tipped set screw, compatible with 2 mm wrench |
| Attribute 986 | 1 M4×10 screw with a thin head thickness of 1.2 mm |
| Hex Wrench | 2.0 mm, 1 piece |
Product Family: Rectangular Optical Mounts (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Rectangular Optical Mounts AMMT-30 |
AMMT-30
| — | — | — | View |
| Rectangular Optical Mounts AMM-05SR-SP Current |
AMM-05SR-SP
| — | — | — | |
| Rectangular Optical Mounts AMR-2R25 |
AMR-2R25
| — | — | — | View |
