Rectangular Optical Mounts — Model AMMT-30
✔ In Stock — Ships Today

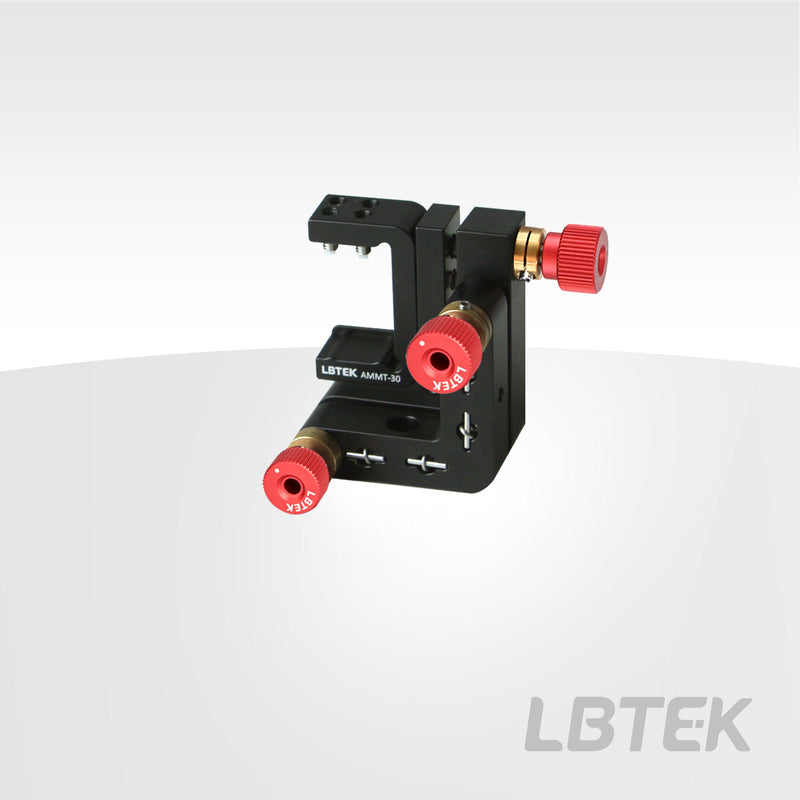

LBTEK 3D Rectangular Optical Mount, designed for mounting and adjusting rectangular optical components with a height not exceeding 30 mm and thickness no less than 3 mm. It provides ±4° angular adjustment range across three axes (pitch, yaw, and rotation), featuring a threaded bushing with a flexure clamp mechanism. Purchase includes 1 free 2.0 mm hex key, 1 free 3 mm hex key, and 2 M4 socket head cap screws.
Key Features
- Applicable optical component height range: 23~30 mm
- Minimum thickness for mounting optical components: 3.0 mm
- Adjustable angle range ±4°, 0.38° per rotation
- Adjuster can be locked
- Optical components secured with M4 rubber-tipped screws
Application
Installation of 3D Rectangular Optical Mount AMMT-30
| Main material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Optical component mounting method | M4 rubber-tipped set screw, compatible with 2 mm wrench |
| Adjustable pitch/yaw angle range | ±4 ° |
| Attribute 1112 | 0.38° per revolution |
| Minimum optical element thickness | 3.0 mm |
| Mounting Hole Specifications/Quantity | M4 countersunk mounting holes/2 pcs |
| Adjuster specifications/quantity | M6×0.25/3 pcs |
| Hex Key Wrench | One each of 2.0 mm and 3 mm |
| Applicable height range for optical components | 23~30 mm |
Product Family: Rectangular Optical Mounts (3 variants)
