Scaling tube SM1ES05
SM1ES05$222.76
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
Scaling tube — Model SM1ES05
✔ In Stock — Ships Today

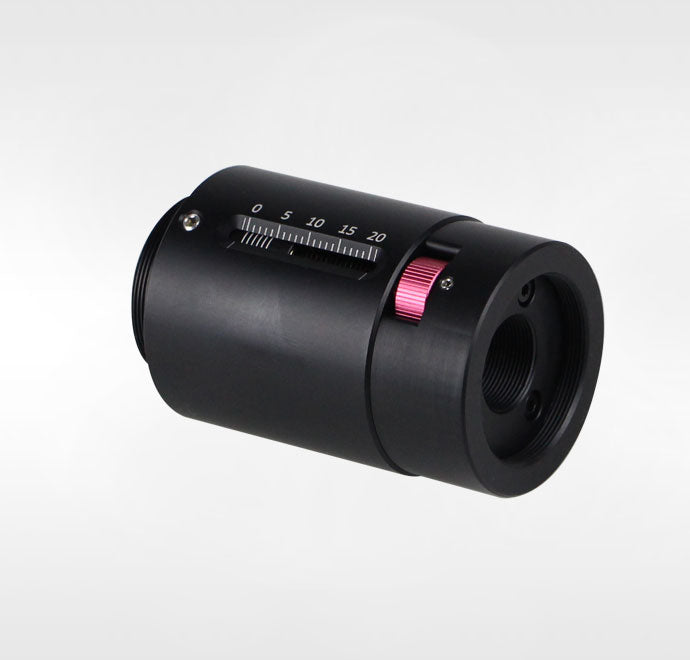

The LBTEK SM05 zoom tube features an SM05 internal thread at the center for mounting optical components with a diameter of 12.7 mm and a maximum thickness of 6.9 mm. One end of the tube has external SM1 threads and internal RMS threads, while the other end is equipped with internal SM1 and SM05 threads, allowing for expansion with lens tubes or other opto-mechanical components. This post provides 18 mm of linear travel, adjustable via a red knob with a translation efficiency of 4.8 mm per revolution and a resolution of 0.2 mm. It includes a locking mechanism, with the locking screw positioned near the 0-mark side. The tube also comes with an SM05R retaining ring for securing optical components.
Key Features
- Compatible optical component diameter: 12.7 mm
- Maximum thickness of mounted optical component: 6.9 mm
- Travel range: 18 mm
- Adjustment efficiency: 4.8 mm/revolution, Resolution: 0.2 mm
- With SM1 internal/external threads, SM05 internal threads, RMS internal threads
Application
The SM05 scaling tube is mounted on the coaxial plate.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Scaling tube (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Scaling tube SM1ES05 Current |
SM1ES05
| — | — | — | |
| Scaling tube SM1ZT |
SM1ZT
| — | — | — | View |
| Scaling tube SM1ES1 |
SM1ES1
| — | — | — | View |
