Scaling tube — Model SM1ES1
✔ In Stock — Ships Today

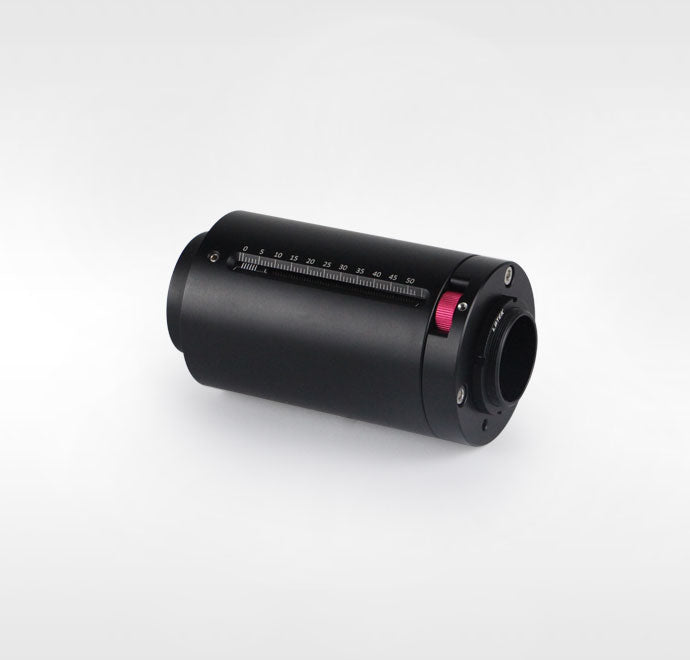

The LBTEK SM1 scaling tube featutuberes an SM1 internal thread at the center for mounting optical components with a diameter of 25.4 mm and a maximum thickness of 8.2 mm. One end of the tube is equipped with an SM1 external thread, allowing it to be installed into lens tubes or other mechanical components. This tube provides a 51 mm linear travel range, adjustable via a red knob with a travel efficiency of 4.8 mm per revolution and a resolution of 0.2 mm. The tube includes a locking function, with the locking screw positioned near the 0-mark side. The tube comes with an SM1R retaining ring for securing optical components and an SM1LR retaining ring for fixing the tube itself.
Key Features
- Suitableoptical component diameter: 25.4 mm
- Maximum thickness of mounted optical element: 8.2 mm
- Travel range: 51 mm
- Adjustment efficiency: 4.8 mm/revolution, Resolution: 0.2 mm
- With SM1 internal and external threads
Application
The SM1 scaling tube is mounted on the coaxial plate.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Scaling tube (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Scaling tube SM1ES05 |
SM1ES05
| — | — | — | View |
| Scaling tube SM1ZT |
SM1ZT
| — | — | — | View |
| Scaling tube SM1ES1 Current |
SM1ES1
| — | — | — |
